Toro Groundsmaster 360 Service Manual

BrakeCables
g036982

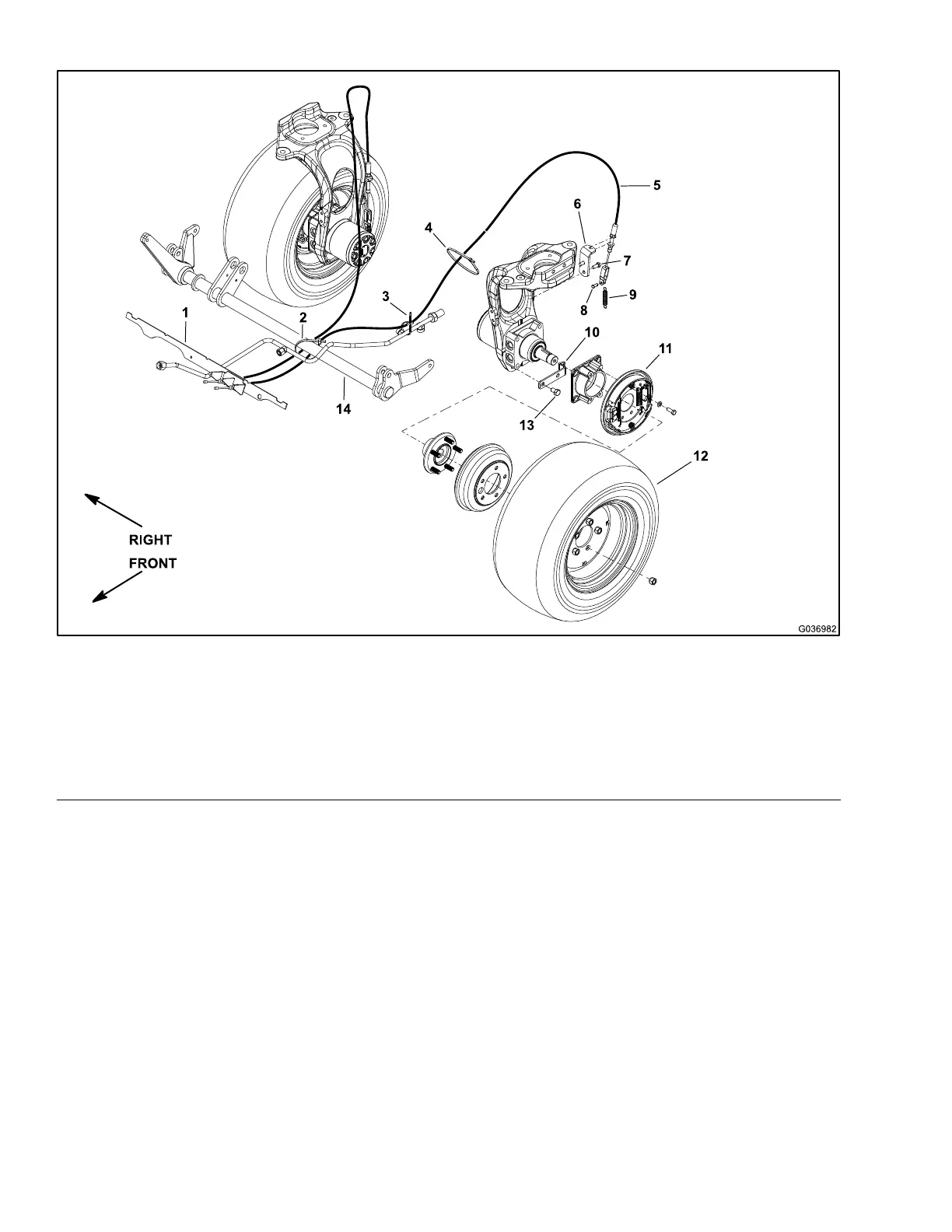

Figure265
1.Operatorplatformbracket6.Brakecablebracket(left)11.Brakeassembly(left)
2.Cabletie7.Bolt(2eachperbracket)12.Rearwheel(left)
3.Cabletie8.Clevispin13.Bolt(2eachperbracket)
4.Cabletie
9.Brakereturnspring
14.Deckliftshaft
5.Brakecable(2each)
10.Returnspringbracket
RemovingtheBrakeCable
1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe
engine,andremovethekeyfromthekeyswitch.Ensurethattheparking
brakeisnotapplied.
2.Blockthewheelswithchockstopreventthemachinefrommoving.
3.Disconnectthebrakecable(item1inFigure266)fromtherearofthe
machineasfollows:
A.Removethereturnspring(item6inFigure266)andclevispinthatsecure
thebrakecabletothebrakeactuatorlever.
B.Loosen1oftheangenuts(item2inFigure266)thatsecuresthebrake
cabletothebrakecablebracket.
Chassis:ServiceandRepairs
Page6–20
Groundsmaster360
16225SLRevC
