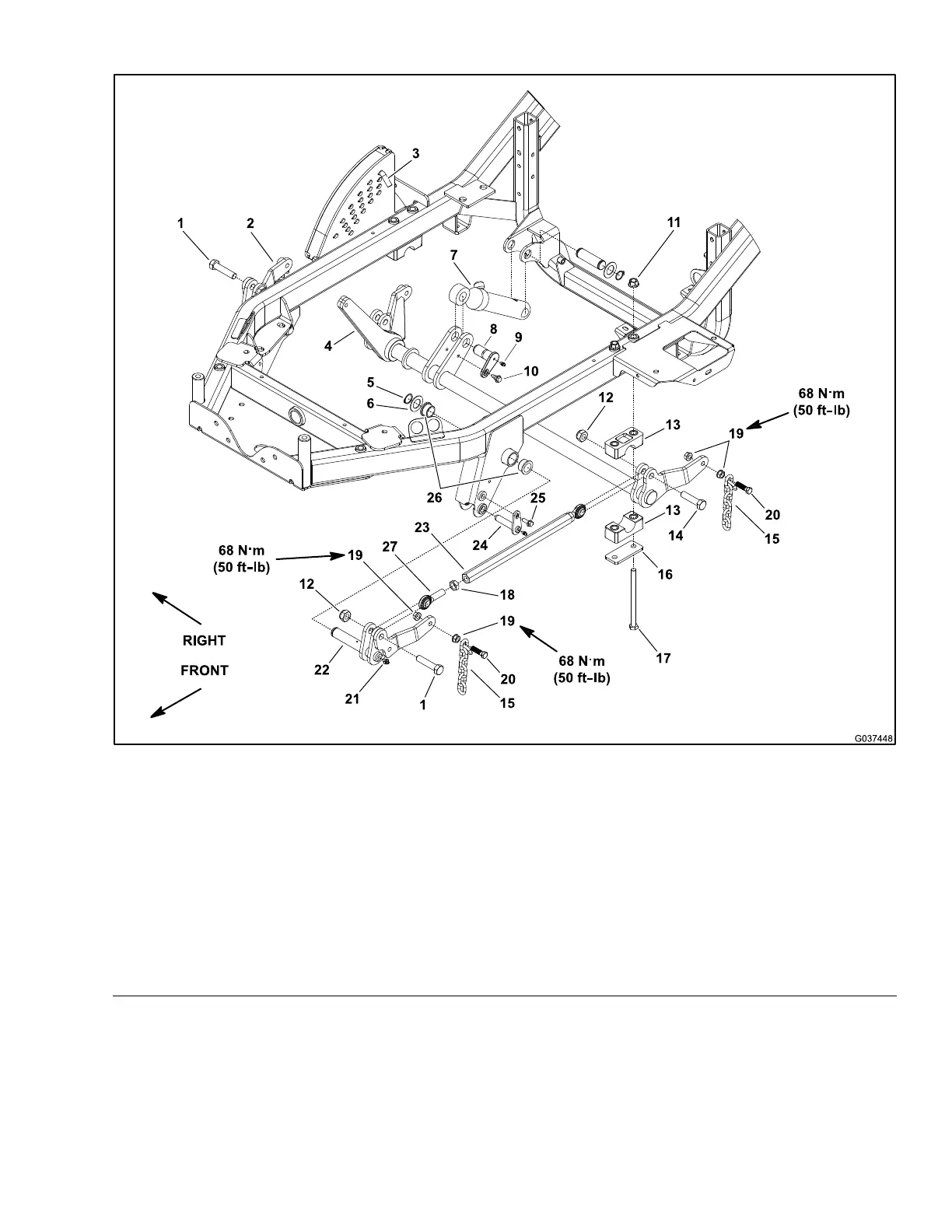

CuttingDeckLiftAssembly

g037448

Figure289

1.Bolt(2each)10.Shoulderbolt19.Flangenut(2eachperchain)

2.Rightliftarm11.Locknut(4each)20.Bolt(4each)

3.HOCpin12.Locknut(4each)21.Greasetting(2each)

4.Liftshaftassembly13.Bearingcap(4each)

22.Leftliftarm

5.Retainingring(1eachperliftarm)14.Bolt(2each)23.Linkassembly(2each)

6.Washer(1eachperliftarm)15.HOCchain(4each)24.Retainerpin(2each)

7.Liftcylinder16.Bearingplate(2each)25.T aptitescrew(2each)

8.Pivotpin

17.Bolt(4each)26.Flangebushing(4each)

9.Greasetting(3each)

18.Jamnut

27.Balljoint(2eachperlink)

Groundsmaster360

Page6–49

Chassis:ServiceandRepairs

16225SLRevC
