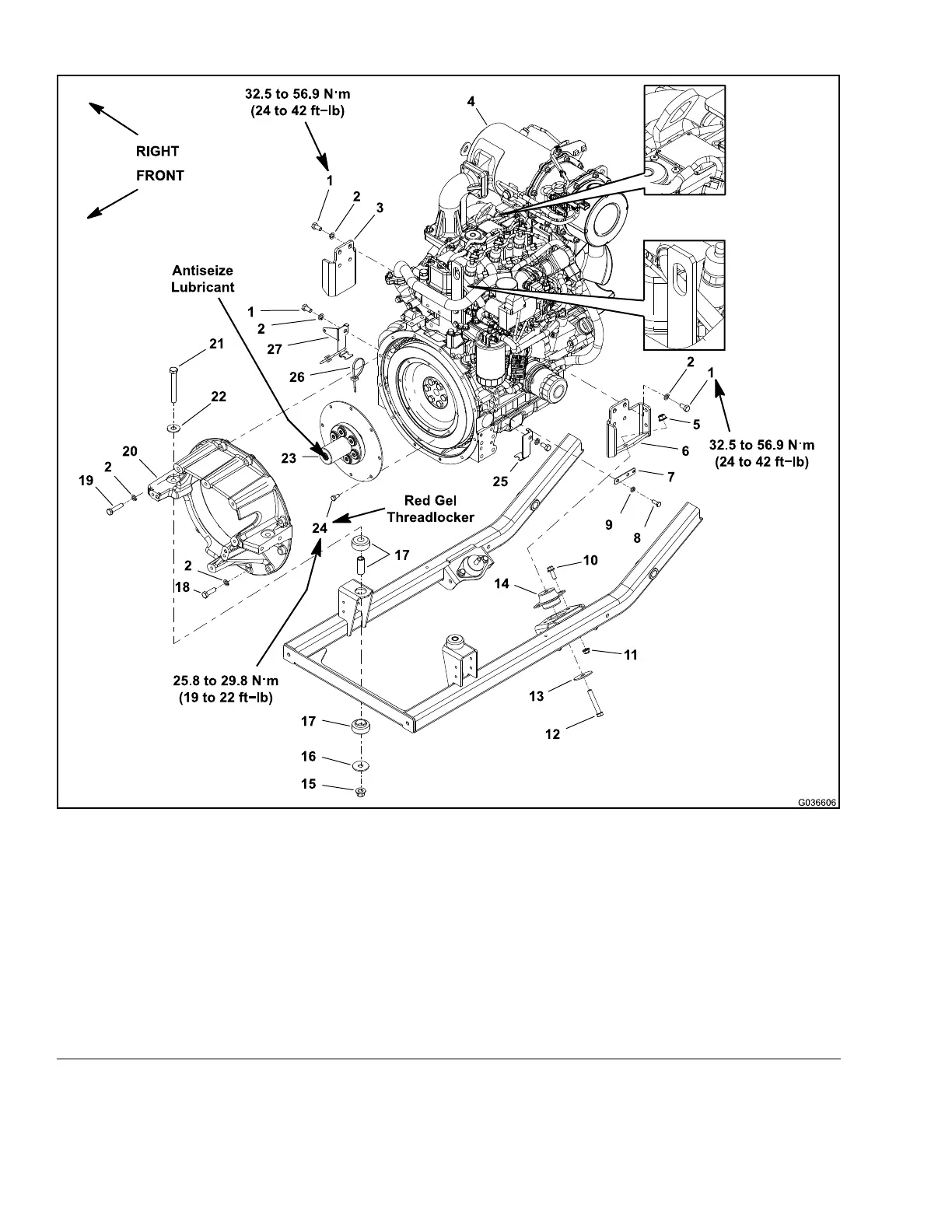

Engine

g036606

Figure14

1.Bolt(10each)10.Screw(4each)19.Screw(7each)

2.Lockwasher(19each)11.Flangenut(4each)

20.Flywheelhousing

3.Rightmount(machineswithoutcab)12.Bolt(2each)21.Screw(2each)

4.Yanmarengine

13.Snubbingwasher(2each)22.Flatwasher(2each)

5.Flangenut(2each)14.Enginemount(2each)

23.Flywheelcoupling

6.Leftmount15.Locknut(2each)24.Bolt(8each)

7.Harnesstab

16.Thrustwasher(2each)25.Leftharnessbracket

8.Screw(2each)17.Rubbermountassembly(2each)26.Cabletie(4each)

9.Lockwasher(2each)18.Screw(2each)

27.Rightharnessbracket

DieselEngine:ServiceandRepairs

Page3–20

Groundsmaster360

16225SLRevC
