RemovingtheEngine
1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe
engine,settheparkingbrake,andremovethekeyfromthekeyswitch.
2.Removethehood;refertoRemovingtheHood(page6–68).

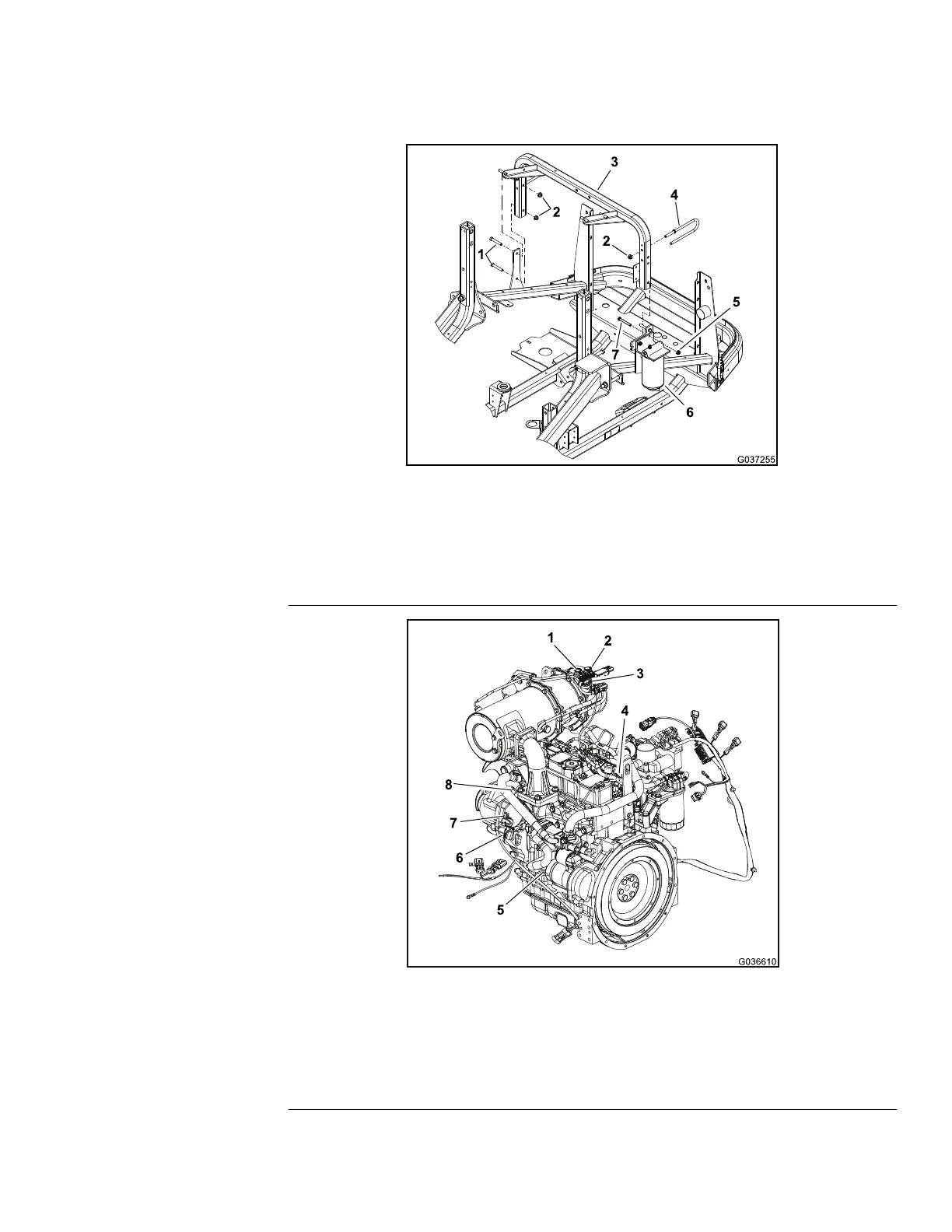

g037255
Figure15
1.Screw(4each)
5.Flangenut
2.Flangenut(6each)6.Fuel/waterseparator
3.Crosstube7.Screw
4.Hoseguide(2each)
g036610
Figure16
1.Middletemperaturesensor
5.“S”starter
2.Inlettemperaturesensor6.Ringterminal
3.DPFpressuresensor
7.Connector
4.Glowplugs8.Connector
Groundsmaster360
Page3–21
DieselEngine:ServiceandRepairs
16225SLRevC
