BlowerFan

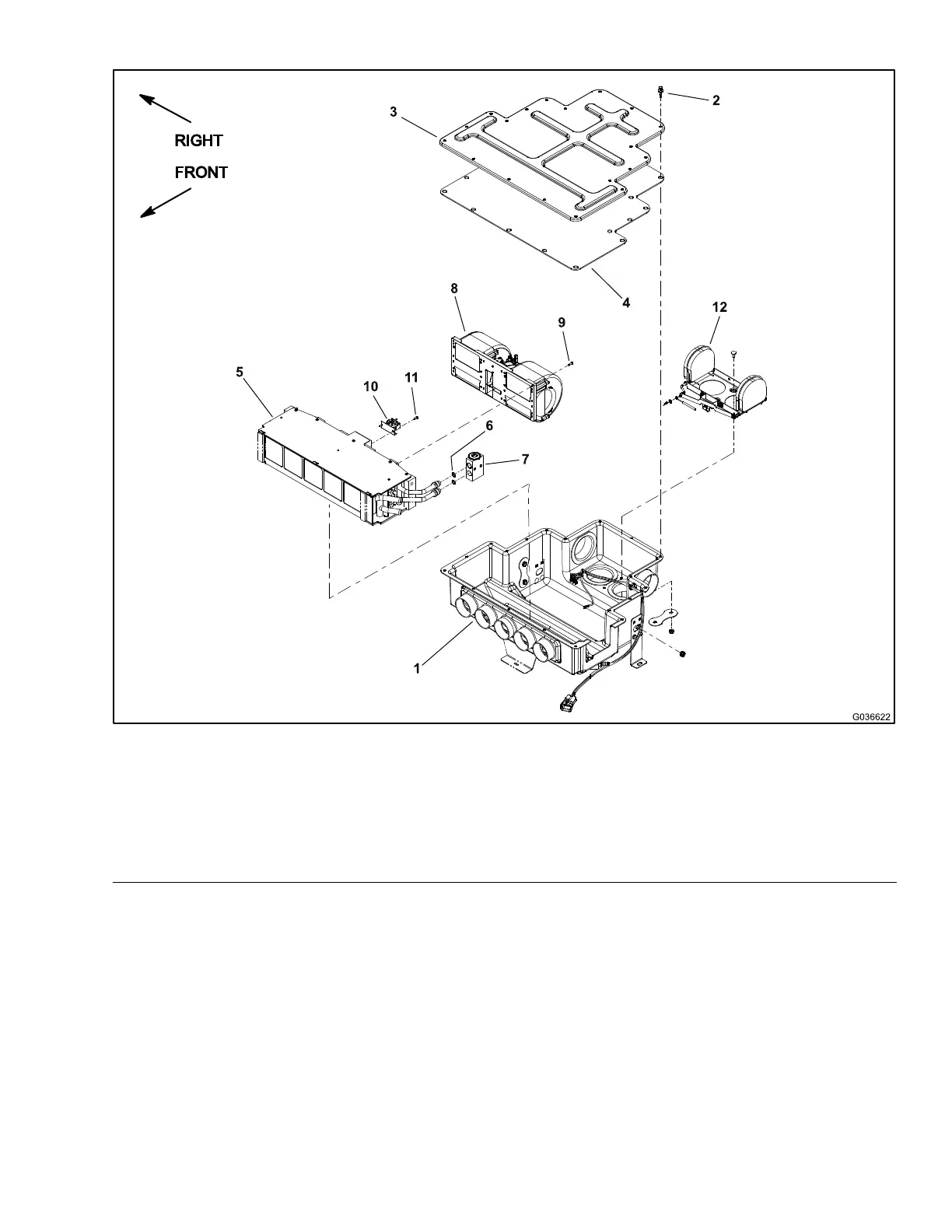

g036622

Figure332

1.Mixingbox

5.Heatercore/airconditioning

evaporatorassembly

9.Screw(6each)

2.Rivet(19each)6.O-ring(2each)

10.Freezeswitch

3.Mixingboxcover7.Expansionvalve

11.Screw(2each)

4.Coverinsulation8.Blowerfan

12.Airdiverterassembly

Note:Theblowerfancanberemovedandinstalledwiththemixingbox(item1

inFigure332)attachedtothecabheadliner.

RemovingtheBlowerFan

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutofthe

engine,settheparkingbrake,andremovethekeyfromthekeyswitch.

2.Removetheroofpanelfromthetopofthecabtogetaccesstotheblower

fan;refertoRemovingtheRoofAssembly(page8–10).

3.ReadtheGeneralPrecautionsforRemovingandInstallingtheAir

ConditioningSystemComponents(page8–4).

Groundsmaster360

Page8–27

OperatorCab:ServiceandRepairs

16225SLRevC
