Toro Groundsmaster 360 - Parking Brake Sensor

ParkingBrakeSensor

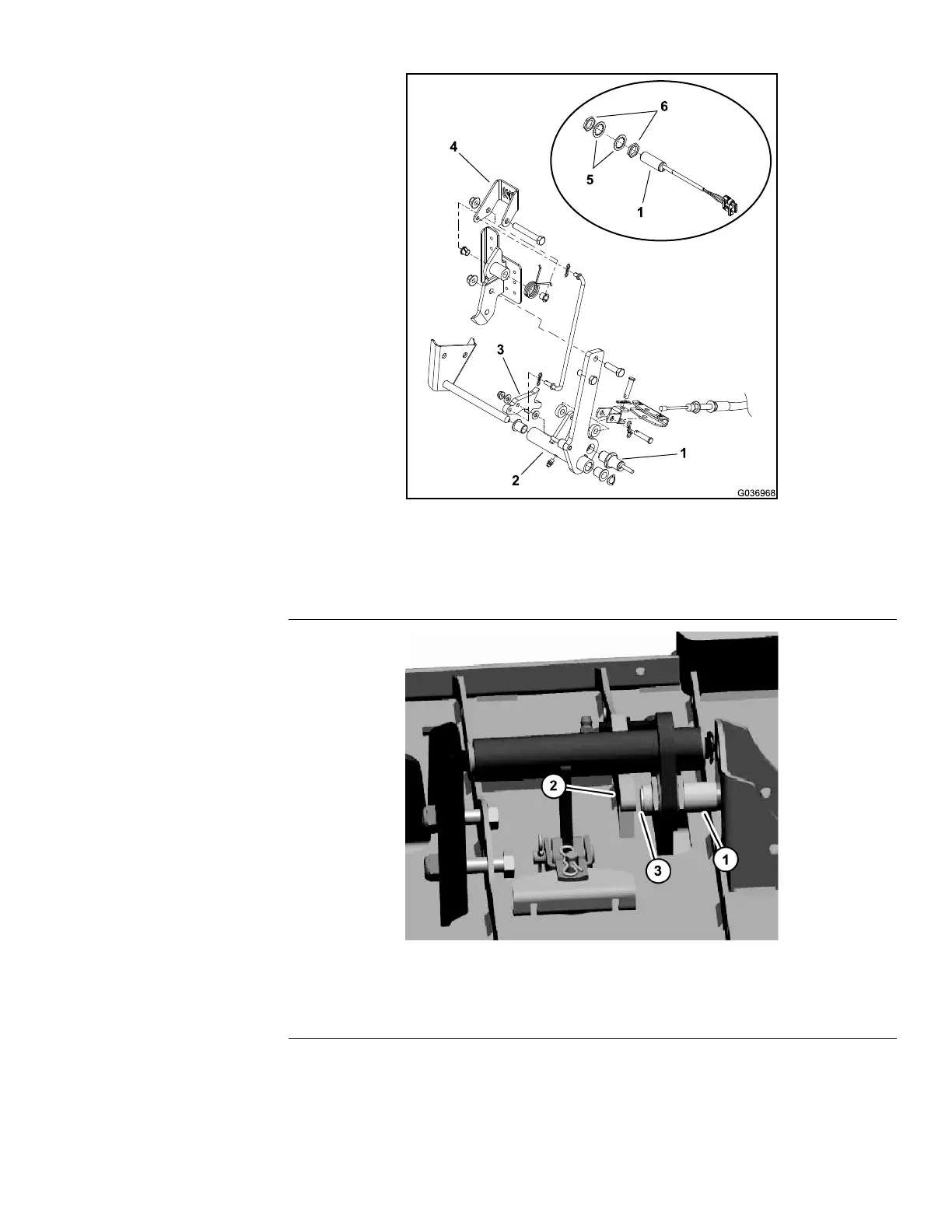

g036968
Figure189
1.Parkingbrakesensor4.Parkingbrakelatch
2.Brakelever
5.Lockwasher(2each)
3.Parkingbrakedetent
6.Jamnut(2each)
g188848
Figure190
1.Parkingbrakesensor
3.Gap
2.Parkingbrakedetent
TheparkingbrakesensoractsasaninputfortheTECtodeterminewhenthe
parkingbrakeisset(brakelatchengaged).Thebrakesensorisanormallyopen
proximitysensorthatmountstothebrakeleverassembly(Figure189).
