Toro Groundsmaster 360 - Hood

Hood
g037460

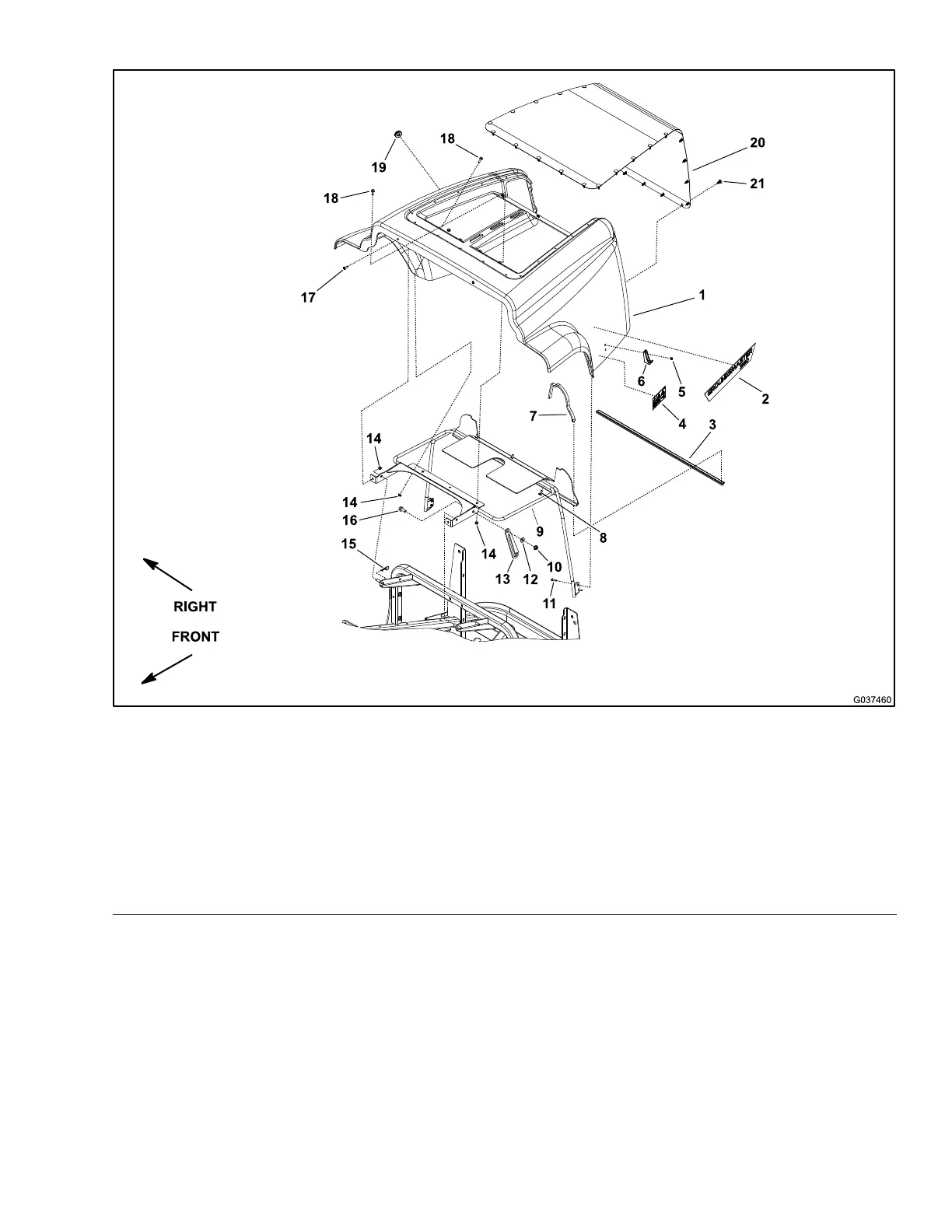

Figure302
1.Hood
8.Carriagebolt(3each)
15.Hairpincotter
2.Decal9.Hoodmountassembly16.Flange-headscrew
3.Bulbseal10.Flangenut
17.Button-headscrew(2each)
4.Decal
11.Washer-headscrew(4each)18.Flange-headscrew(6each)
5.Locknut(4each)
12.Frictionwasher
19.Grommet
6.Catchlatch(2each)
13.Proprod20.Hoodscreen
7.Foamseal(2each)14.Flangenut(11each)21.Plasticplug(27each)
