Toro Groundsmaster 360 Service Manual

15GPMHydraulicTesterKit(PressureandFlow)(continued)
3.PressureGauge:Aglycerinelledpressuregauge0to34,500kPa(0to
5,000psi)toprovideoperatingcircuitpressure.
4.FlowMeter:Thismetermeasurestheactualuidowintheoperatingcircuit
withagaugeratedat5to55L/minute(1to15gallons/minute).
5.OutletHose:Ahosefromtheoutletsideofthehydraulictesterthatconnects
tothehydraulicsystemcircuit.
6.Fittings:Anassortmentofhydraulicttingsareincludedwiththiskit.

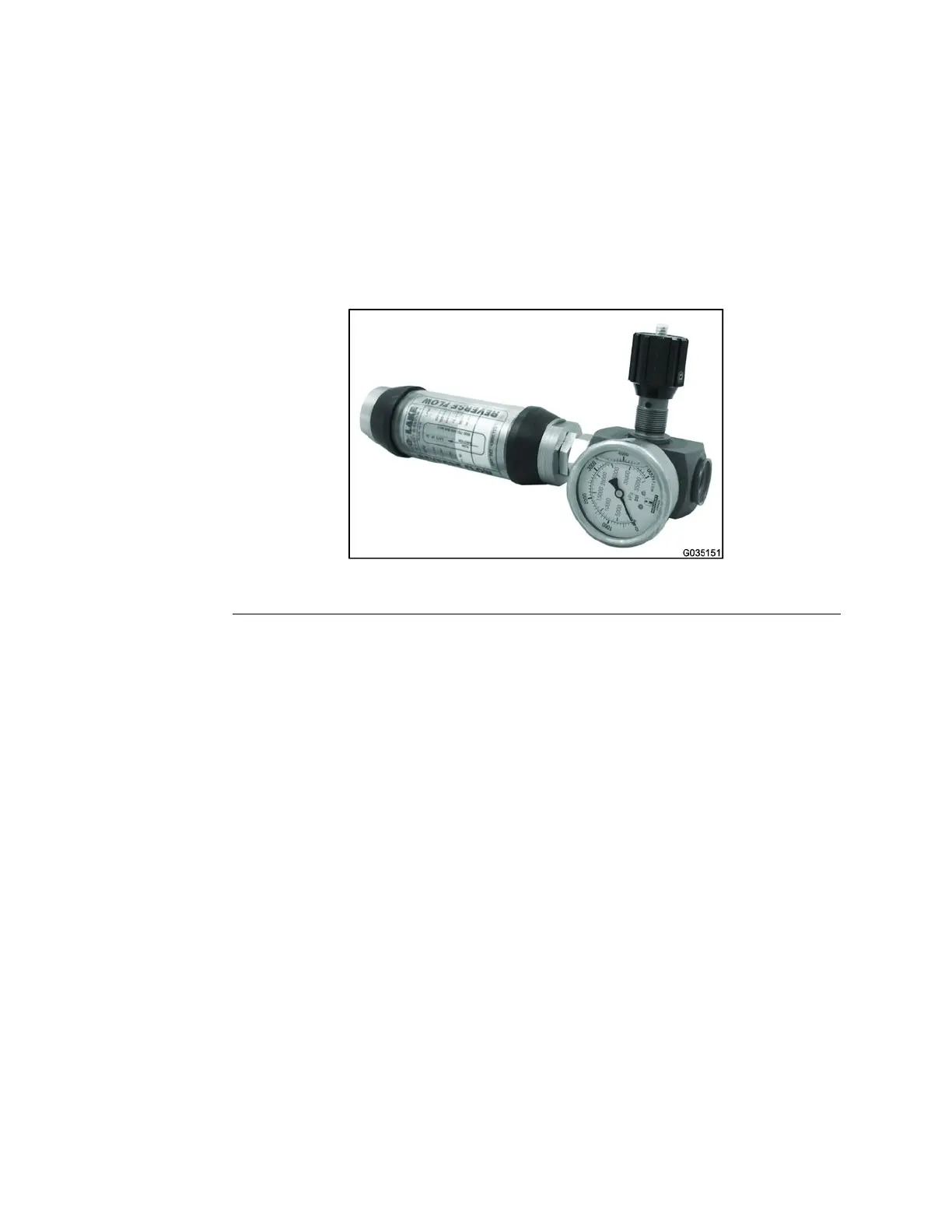

40GPMHydraulicTester(PressureandFlow)
g035151
Figure34
ToroPartNo.AT40002
Usethistestertotestthehydrauliccircuitsandcomponentsforowandpressure
capacitiesasrecommendedinT estingtheHydraulicSystem(page4–39).This
testerincludesthefollowing:
1.LoadValve:Turnthevalvetorestricttheowtocreateasimulatedworking
loadinthecircuit.
2.PressureGauge:Aglycerinelledpressuregauge0to35,000kPa(0to
5,000psi)toprovideoperatingcircuitpressure.
3.FlowMeter:Thismetermeasurestheactualuidowintheoperatingcircuit
withagaugeratedat20to150L/minute(4to40gallons/minute).
Note:Thistesterdoesnotincludethehoses;refertoHydraulicHoseKit(page
4–29).
HydraulicSystem:SpecialTools
Page4–28
Groundsmaster360
16225SLRevC

Toro Groundsmaster 360 Specifications

General

Cutting Width	72 inches
Fuel Type	Diesel
Number of Blades	3
Transmission	Hydrostatic
Turning Radius	0 inches (0 cm) - Zero Turn
Drive System	4WD
Cutting Height	1.5 - 5 inches
