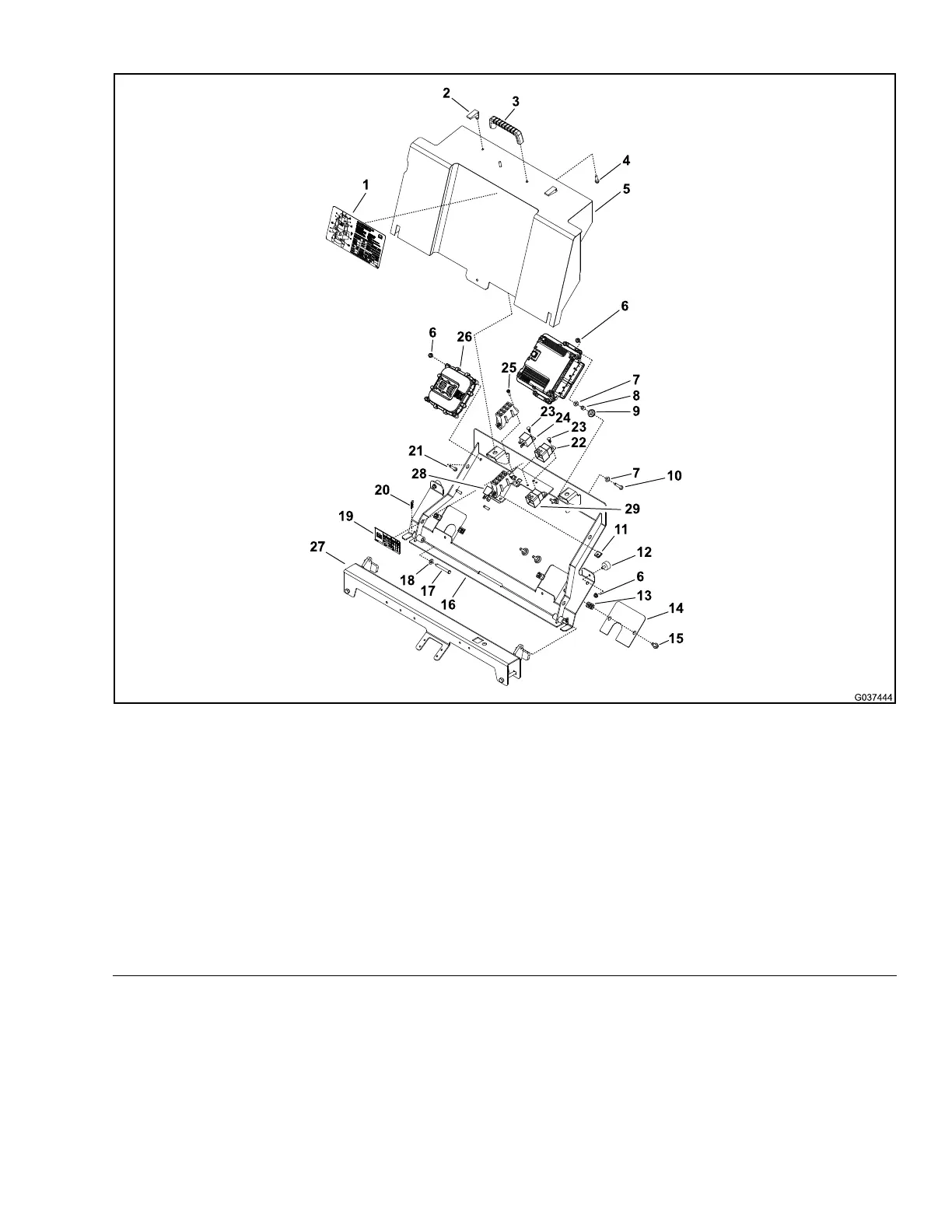

PowerCenterAssembly(MachineswithoutOperatorCab)

g037444

Figure295

1.Instructionsdecal

11.U-typespeednut(4each)21.Screw(4each)

2.Swelllatch(2each)12.Rubberbumper(2each)22.Startrelay

3.Coverhandle13.U-nut(4each)23.Plasticplug(4each)

4.Washer-headscrew(2each)14.Coverplate(2each)24.Glowrelay

5.Powercentercover

15.Flange-headscrew(4each)25.Washer-headscrew(4each)

6.Flangenut(10each)

16.Powercenterassembly

26.TEC

7.Flatwasher(8each)17.Clevispin(2each)27.Seatchannel

8.Spacer(4each)18.Flatwasher(2each)

28.Mainpowerrelay

9.Grommet(4each)

19.Fuseblockdecal

29.EGRrelay

10.Screw(4each)20.Hairpincotter(2each)

Groundsmaster360

Page6–55

Chassis:ServiceandRepairs

16225SLRevC
