DisassemblingtheCuttingDeckLiftAssembly

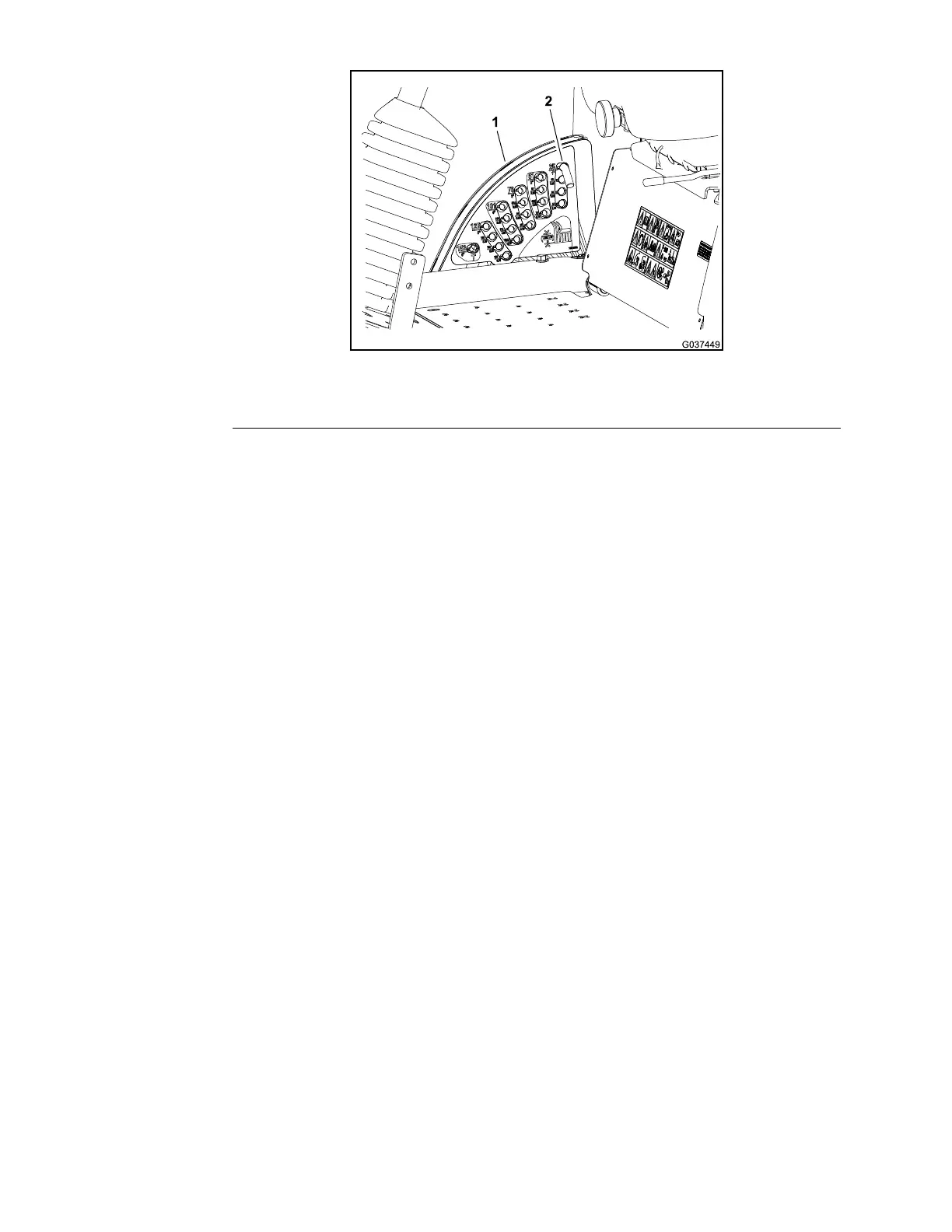

g037449
Figure290
1.HOCbracket2.HOCpin
1.Parkthemachineonalevelsurfacewiththecuttingdeckfullyraised.Shut
offtheengine,settheparkingbrake.
2.NotethelocationoftheHOCpinintheHOCbracketforassemblypurposes,
andremovetheHOCpinfromtheHOCbracket(Figure290).
3.Starttheengineandfullylowerthecuttingdeck.Shutofftheengineand
removethekeyfromthekeyswitch.
Note:Ifthecuttingdeckistoberemovedfrommachine;refertotheCutting
DeckOperator’sManual.
4.RemovetheliftarmcomponentsasshowninFigure289andFigure291.
Note:Ifthepulllinkassemblyremovalisnecessary;refertoCuttingDeck
PullLinks(page7–19).
