Configuration Guide 188

Configuring Protocol VLAN Configuration Example

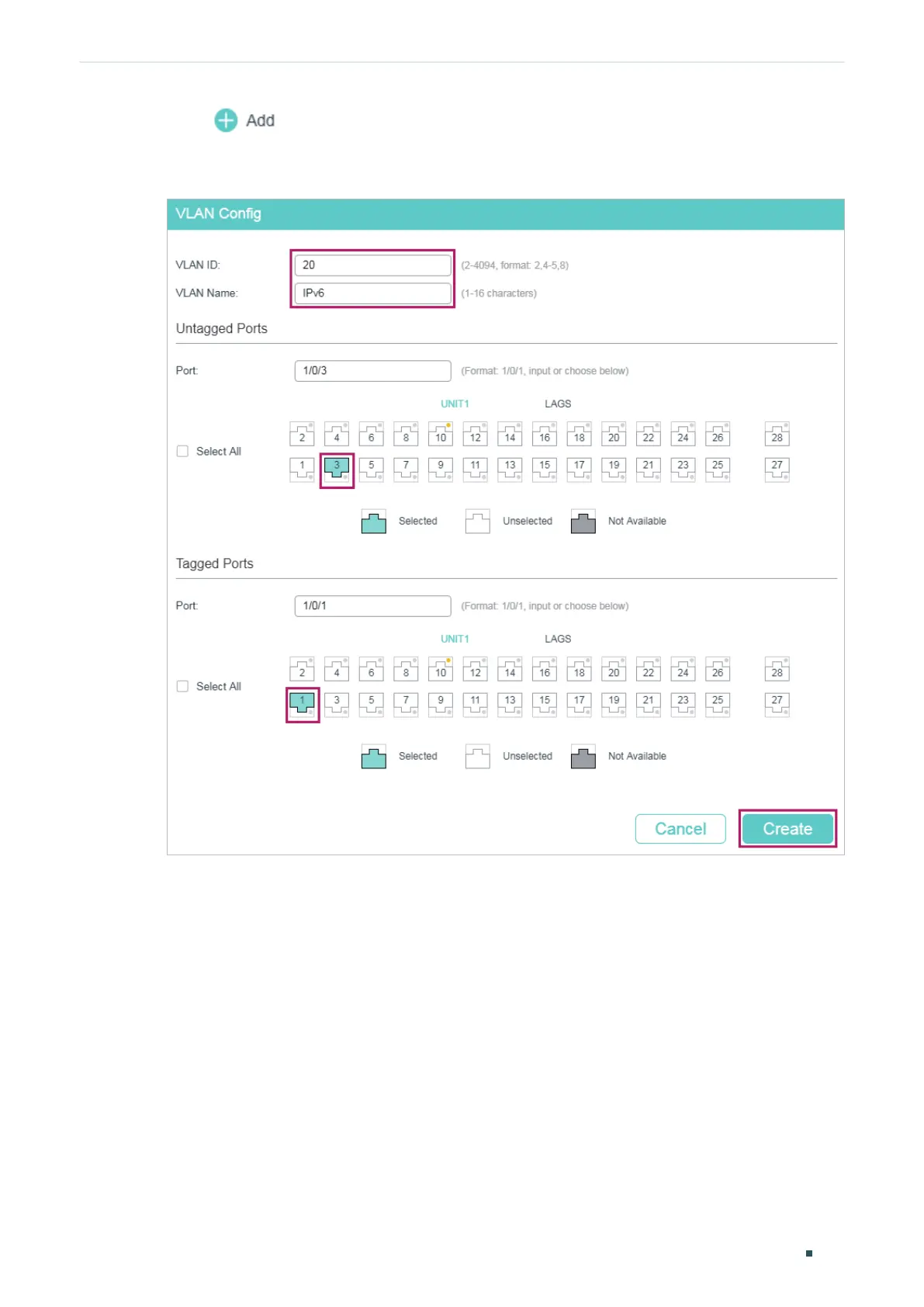

2) Click to load the following page. Create VLAN 20, and add tagged port 1/0/1

and untagged port 1/0/3 to VLAN 20. Click Create.

Figure 3-5 Create VLAN 20
