Configuring SNMP & RMON Configuration Example

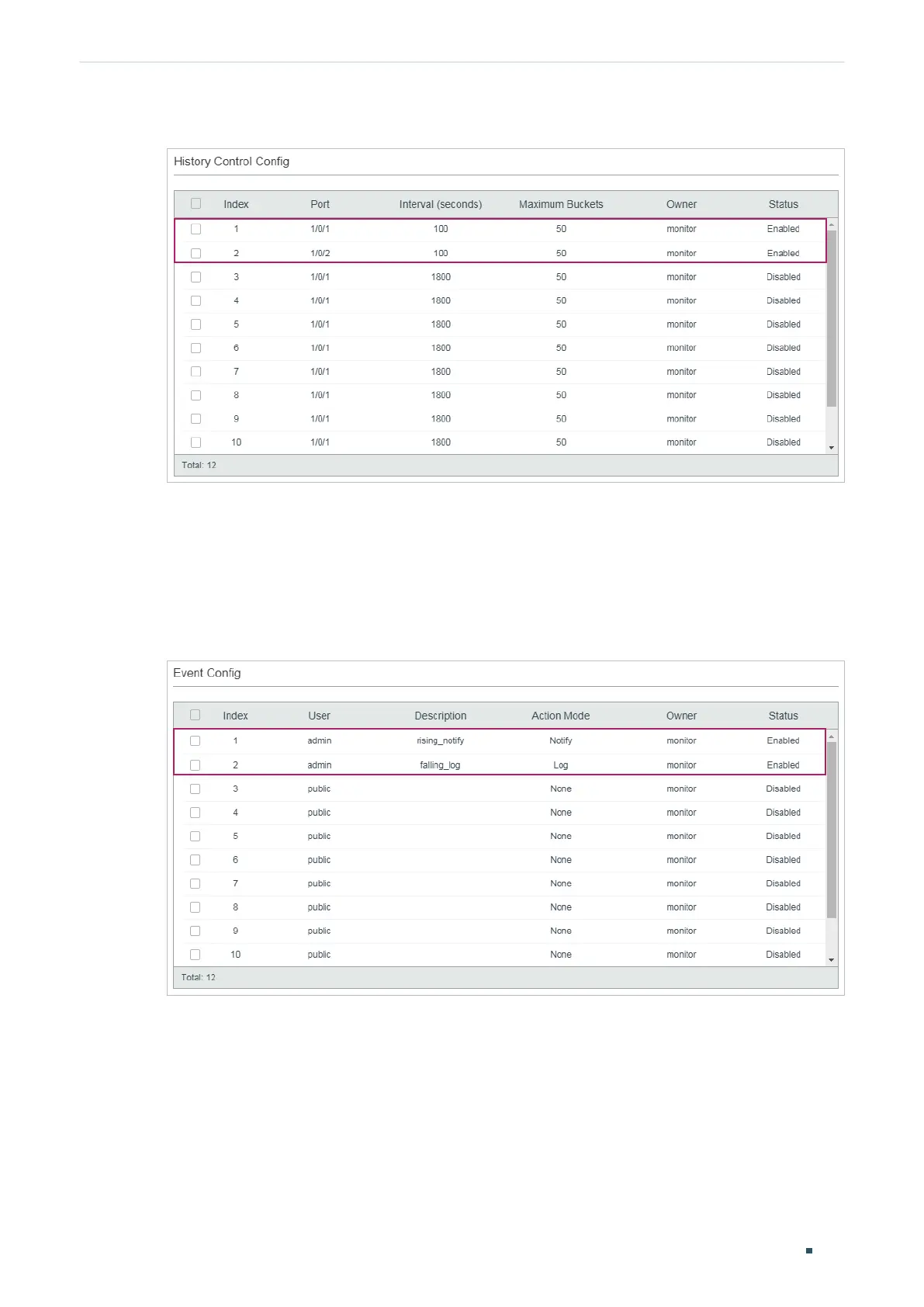

Figure 6-10 Configuring the History Entries
3) Choose the menu MAINTENANCE > SNMP > RMON > Event to load the following
page. Configure entries 1 and 2. For entry 1, set the SNMP user name as admin, type as
Notify, description as “rising_notify”, owner as monitor, and status as enable. For entry
2, set the SNMP user name as admin, type as Log, description as “falling_log”, owner as
monitor, and status as enable.
Figure 6-11 Configuring the Event Entries
4) Choose MAINTENANCE > SNMP > RMON > Alarm to load the following page. Configure
entries 1 and 2. For entry 1, set the alarm variable as BPackets, related statistics entry
ID as 1 (bound to port 1/0/1), the sample type as Absolute, the rising threshold as 3000,
associated rising event entry ID as 1 (which is the notify type), the falling threshold as
2000, the associated falling event entry ID as 2 (which is the log type), the alarm type
as All, the interval as 10 seconds, the owner name as monitor. For entry 2, set the
associated statistics entry ID as 2 (bound to port 1/0/2). Other configurations are the
same as those of entry 1.
