12 Advanced Total Station Features
18.

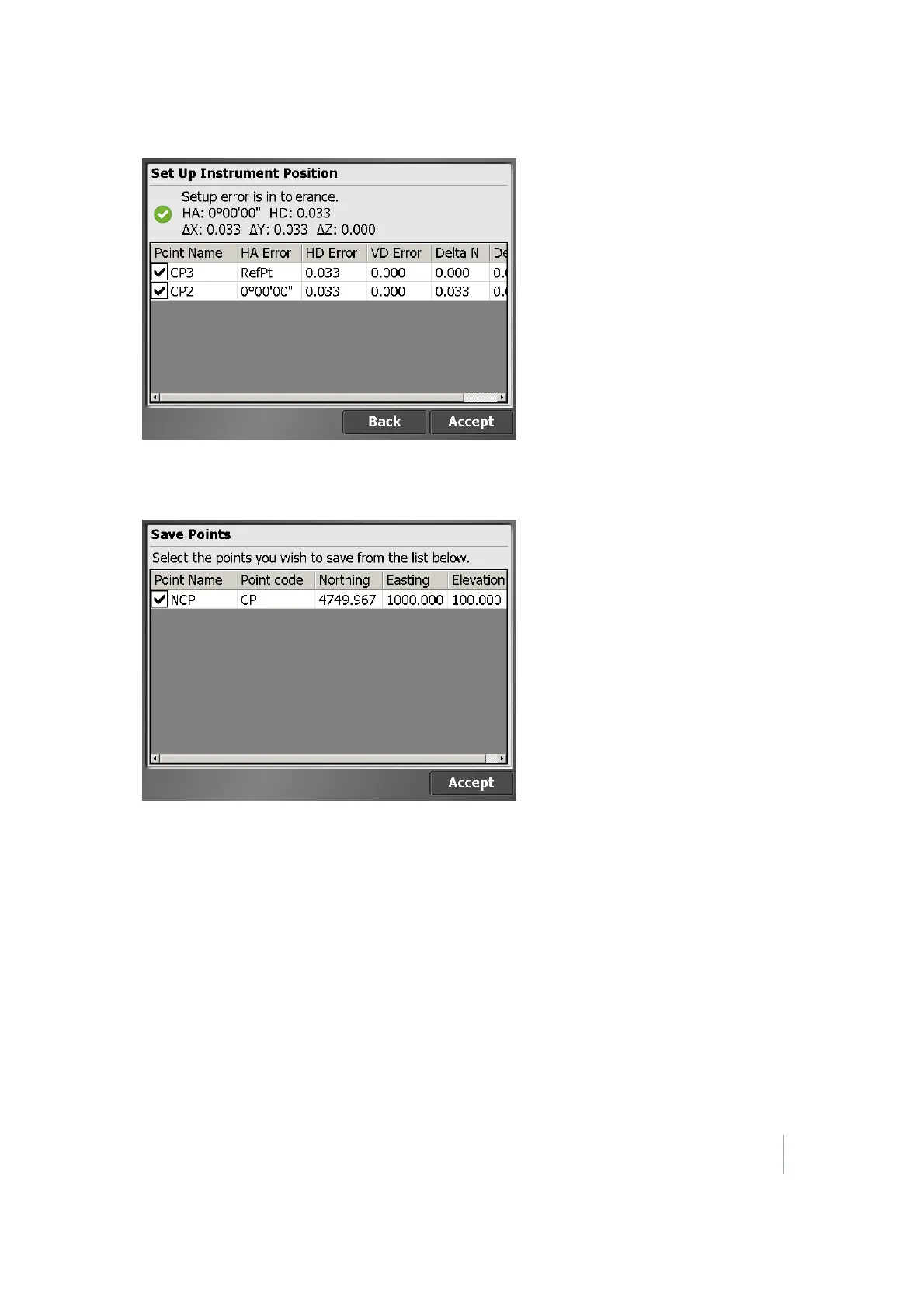

The next screen allows you to select which control points should be stored in the control point
file of the site. The coordinates are a result of the average angle and distance measurements on
one control point, but they do not take a traverse or network adjustment in account:
19. Once all measurements and all control points are measured, you can export the RAW data of
the measurements for doing a network adjustment. Select Home – Export / Import – Measured
Data. To adjust the network in the Business Center software, export the data with the Network
Measurement (DC) option. An export for StarNet network adjustment software is also
available. Use the Network measurement (XSLT). The files with the raw data are stored in the
Output folder of the current work order.
Trimble SCS900 Site Controller Software User Guide 119
