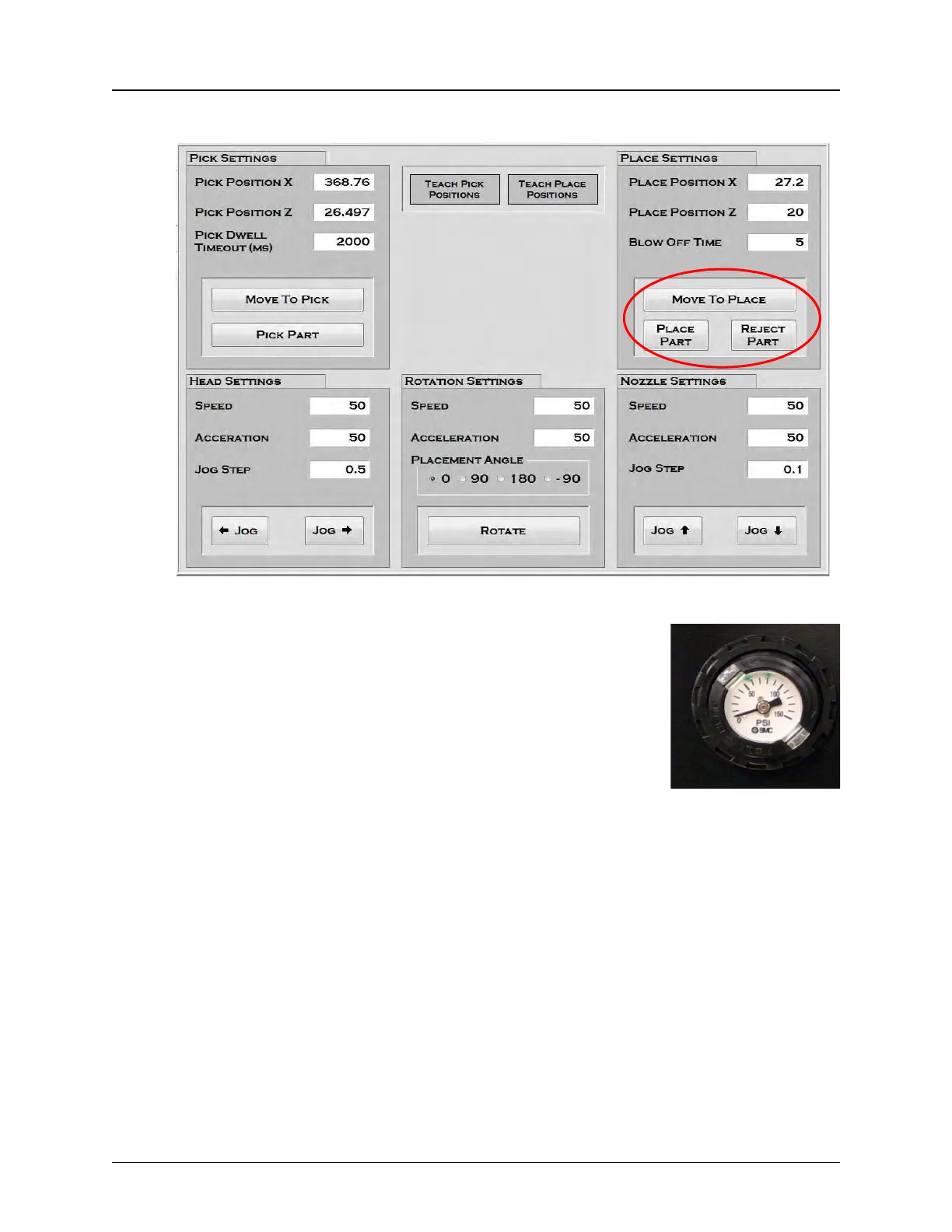

4. Return to the Head Setup Tab. Press Move To Place, then press Place Part.
Check that the Blow-off Pressure is set correctly for the
current part.
The Blow-off Pressure Gauge is located on the left side
of the Pick Head Bridge. If components are not dropping
properly, pull the gauge out and rotate to adjust pressure
levels. When the desired pressure level is reached, push
the gauge back in.
