Installing Modules
Installing the Dual Tray Feeder

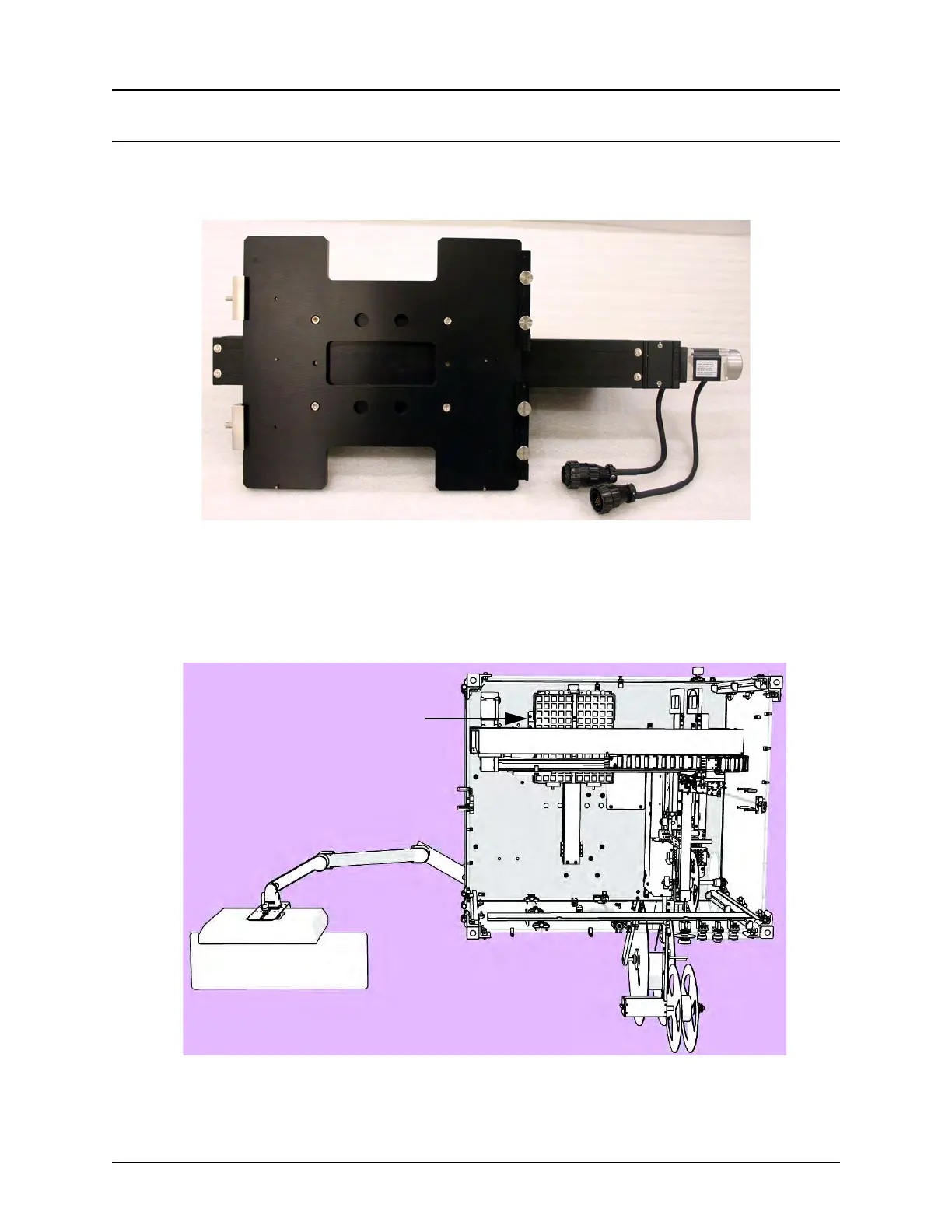

Note: The Dual Tray Feeder module (pictured lying on its side above) weighs 30 pounds
(13.6 kg). It can lifted by one person by grasping the bottom of the module with both
hands.
1. Place the Dual Tray Feeder module on the TM-500 upper enclosure base plate on the left
side of the Taper.
Front of TM-500
Dual Tray
Feeder
