D292144.6.fm The Setup Screens
Chapter 3: Human Machine Interface 3-23

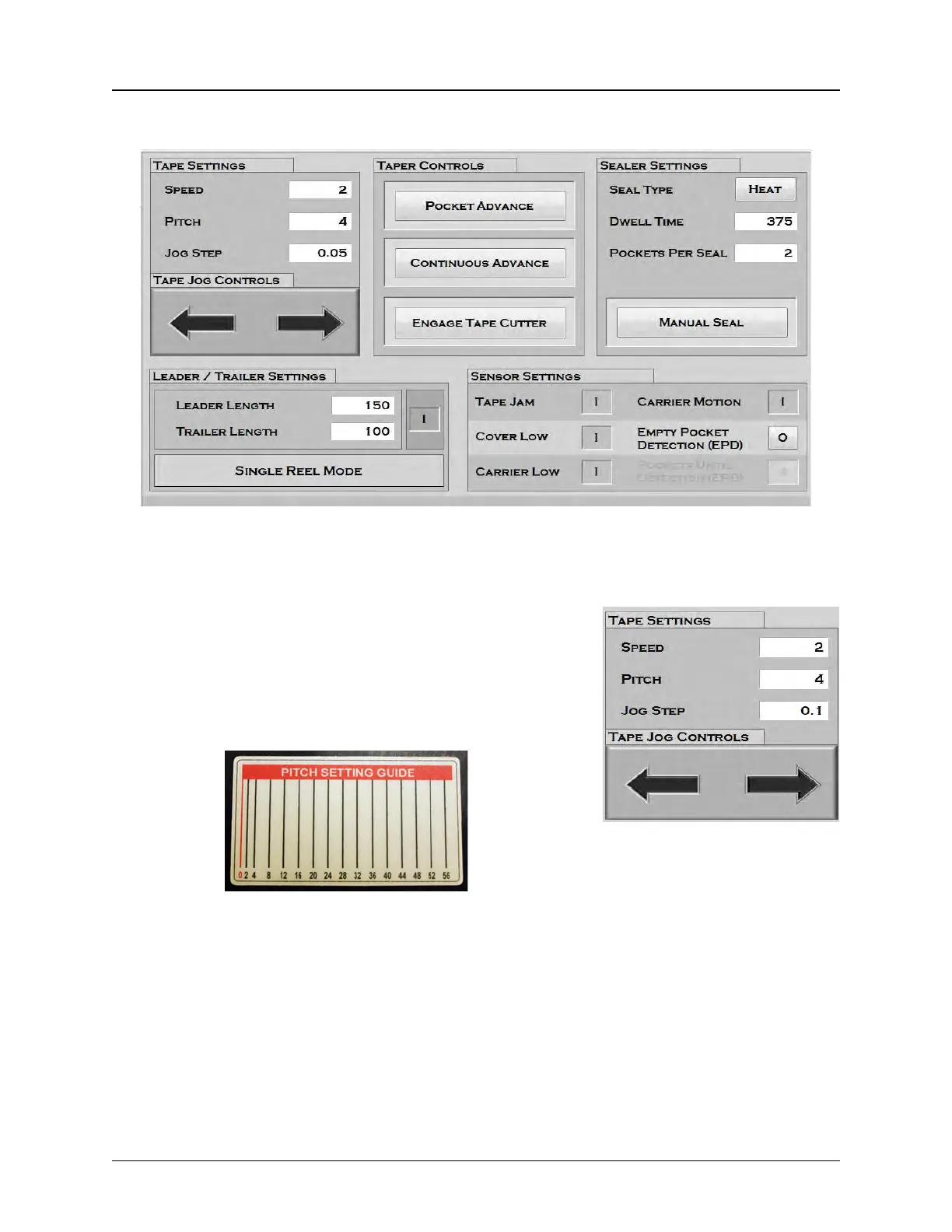

Taper Setup Tab
1. Tape Settings
Speed is a percentage of the maximum velocity the carrier
tape can be advanced at. It can be set between 1-100.
Pitch is determined by the carrier tape selected. Use the Pitch
Setting Guide on the taping module to determine the correct
pitch.
Jog Step sets the distance in millimeters the carrier tape will move forward or backward each
time a Jog button is pressed.
The Tape Jog Controls in the Index Settings section jog the tape forward or backward along the
Y Axis.
