V-TEK TM-500 - Front View

2-2 TM-500 User’s Guide
Front View D292144.5.fm

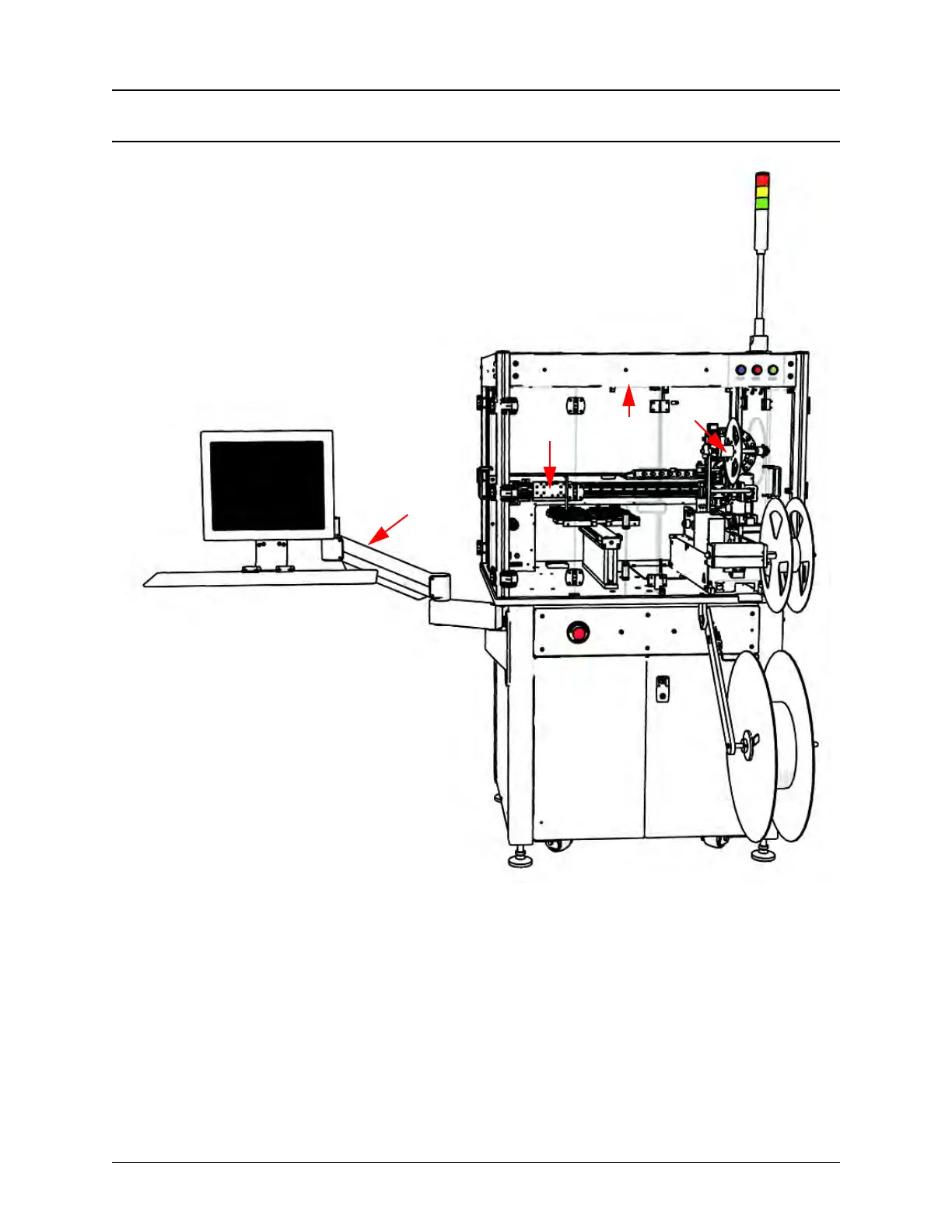

Front View
A. Pick Head Bridge H. Take-up Arm
B. Control Buttons I. Computer Monitor/HMI
C. Cover Tape Arm J. Monitor Arm & Keyboard Tray
D. Ionizing Fan K. Carrier Tape Arm
E. Dual Tray Feeder L. Taper Output Module
F. Carrier Tape Arm M. Tower Light
G. Emergency Stop
Note: Images are representative of the machine. Actual machines may vary.
I
E
D
J
A
B
C
H
K
L
M
G
