D292144.4.fm Installing Modules
Chapter 1: Assembly & Installation 1- 11
2. Position the module so it is aligned with the correct base plate bolt holes and the tubes
will fit through the slot in the enclosure door.
3. Use a 5mm hex wrench to screw the (2) shoulder bolts which are included through the
base of the Tray Feeder and into the TM-500 baseplate, attaching the module securely to
the machine.

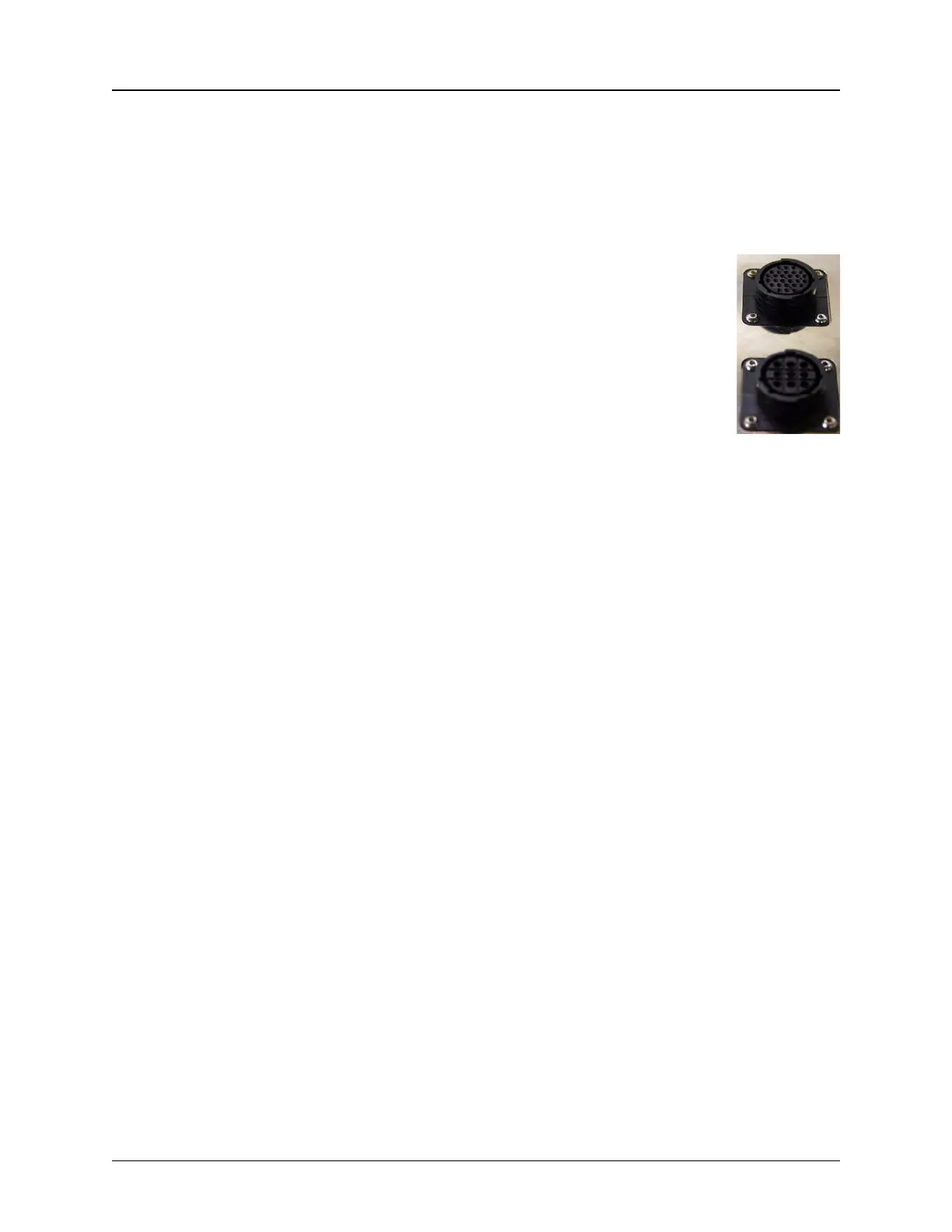

4. Attach the two Tray Feeder cables to the connections on the base
plate under the bridge.
A. Feedback Connection
B. Power Connection
Proceed to Chapter 4: Machine Setup for instructions on adjusting the feeder
to accommodate different tube sizes.
