D292144.9.fm Nozzle Positioning Tips
Chapter 6: Troubleshooting 6-17
4. Adjust Place Position Z Open the Head Set-up Tab (see above). Jog the head up or
down until the nozzle is extended the appropriate distance above the place location.
Experiment with placing a part to determine what Z Axis height works best. When the
nozzle is positioned correctly, press the Teach Place Positions button.

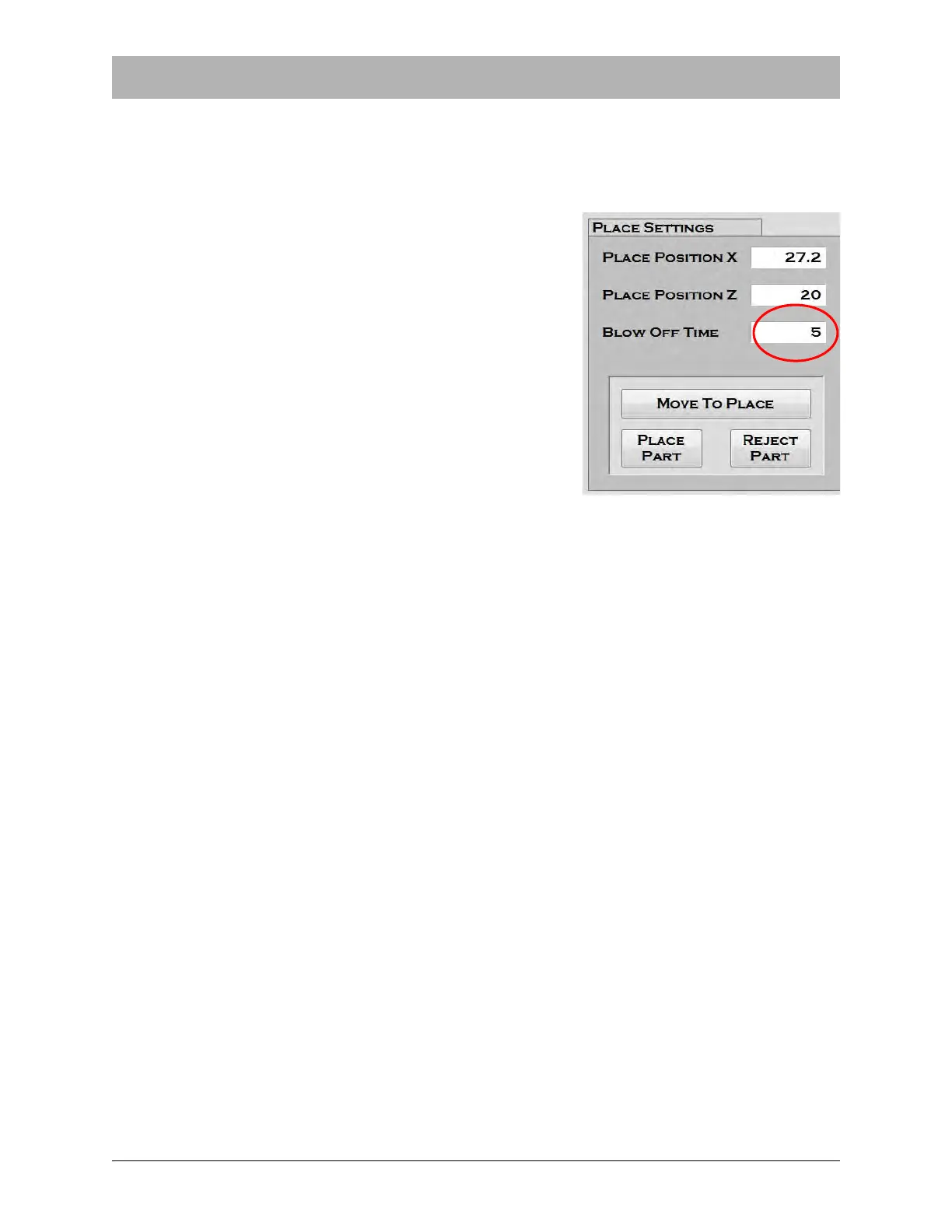

5. Adjust Blow Off Time. Open the Head Set-up Tab.
Adjust the length of Blow Off Time in the Place
Settings section as needed to drop the part
properly.
