D292144.5.fm Controls, Connections & Labeling
Chapter 2: TM-500 Overview 2- 9

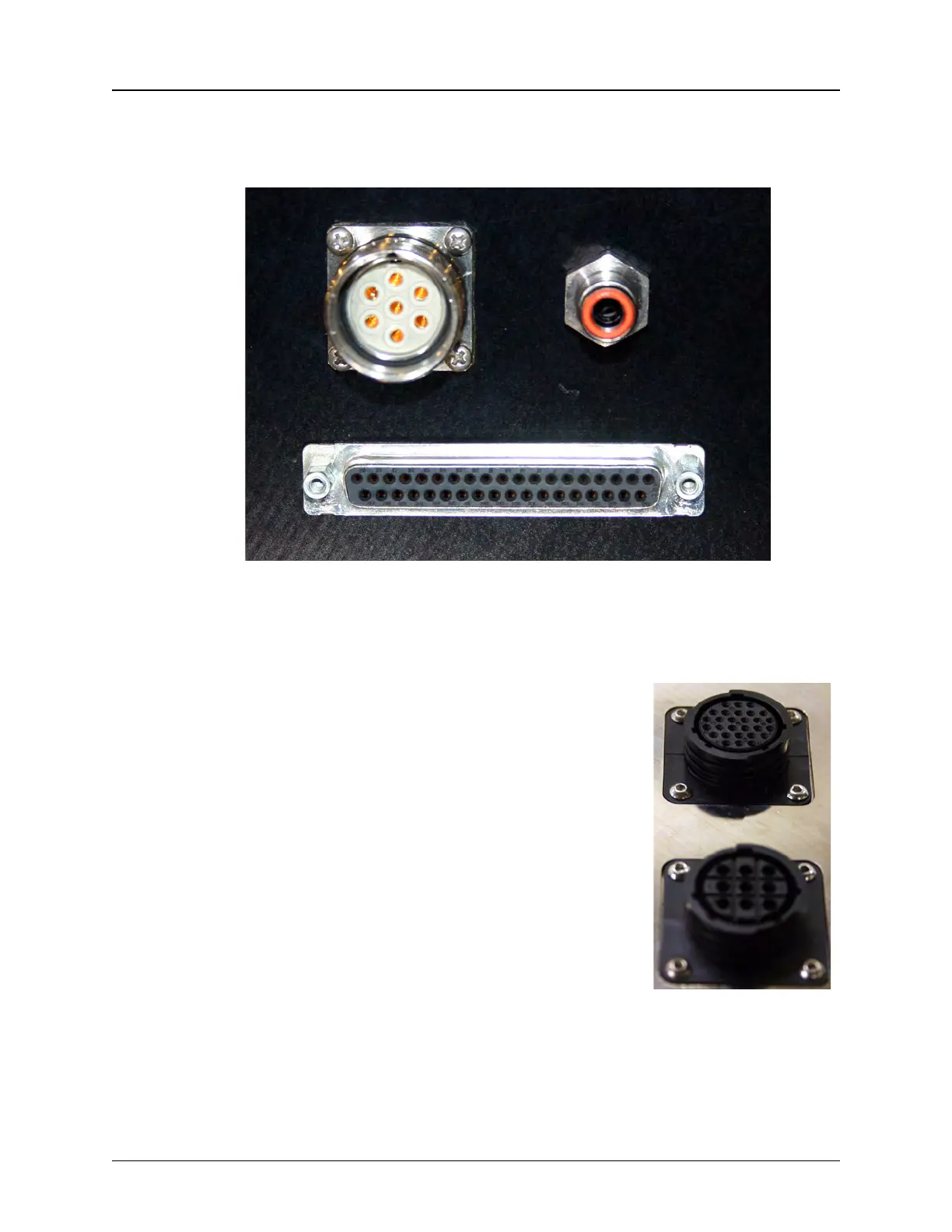

Input Module Connections
There are three connectors located on the lower left side of the Pick Head Bridge. These are
used to connect the Bowl Input Module.
A. Power Connection B. Pneumatic Connection
C. Data Connection
There are two connectors located on the baseplate underneath the
Pick Head Bridge. These are used to connect the Dual Tray Feeder
Input Module. They are not used with the Bowl input Module.
A. Tray Handler Servo Feedback Connection
B. Tray Handler Power Connection
A
B
C
Power
Pneumatic
Data
A
B
