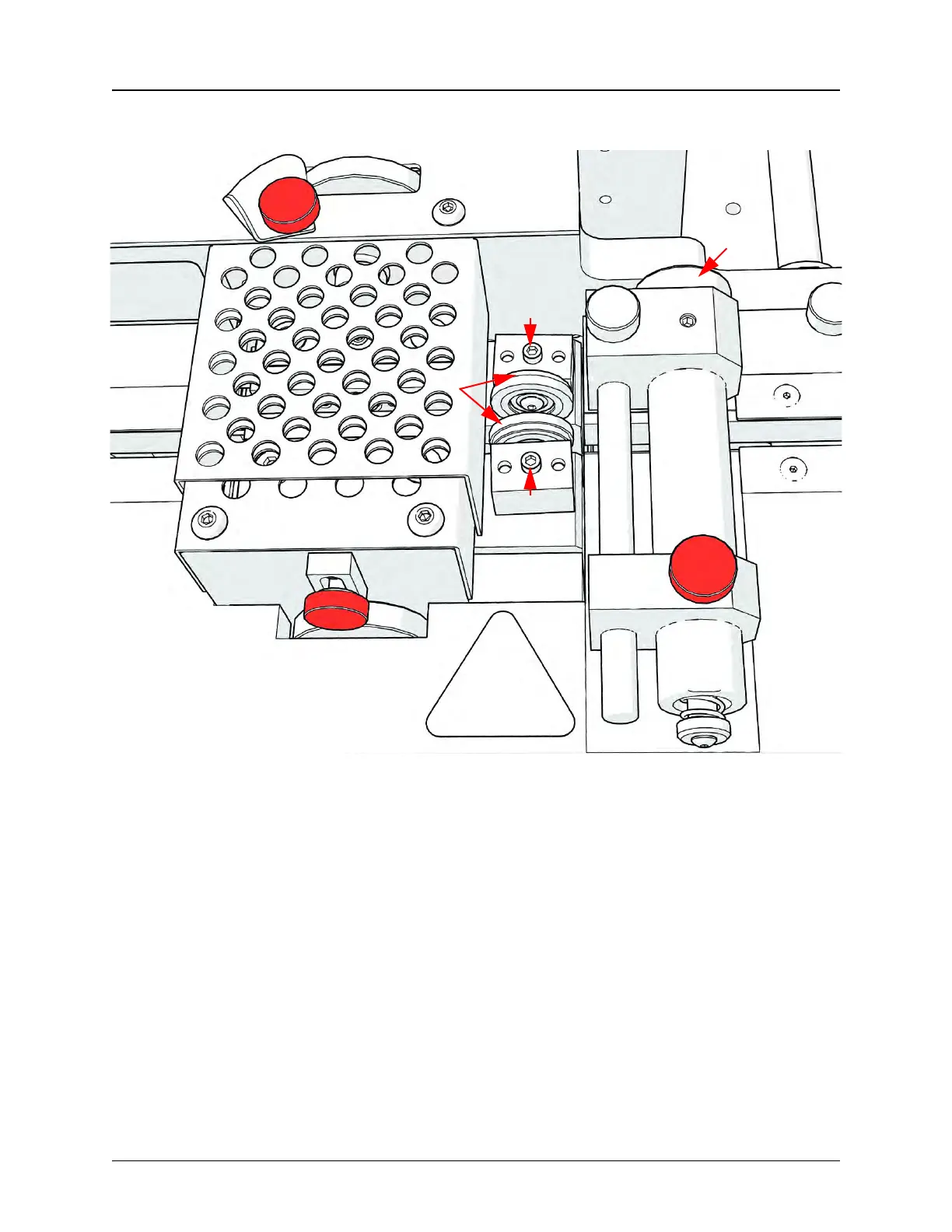

Seal Position Adjustments
A. Inner Seal Position Lock F. Outer Seal Position Adjuster
B. Inner Seal Position Adjuster G. Cover Tape Guide Width Thumb Screw
C. PSA Seal Rollers H. Cover Tape Guide Width Inner Adjuster
D. PSA Seal Pressure Adjustments I. Cover Tape Guide Width Outer Adjuster
E. Outer Seal Position Lock
B
D
D
F
Figure 1.1
G
C
A
H
E
F
I
