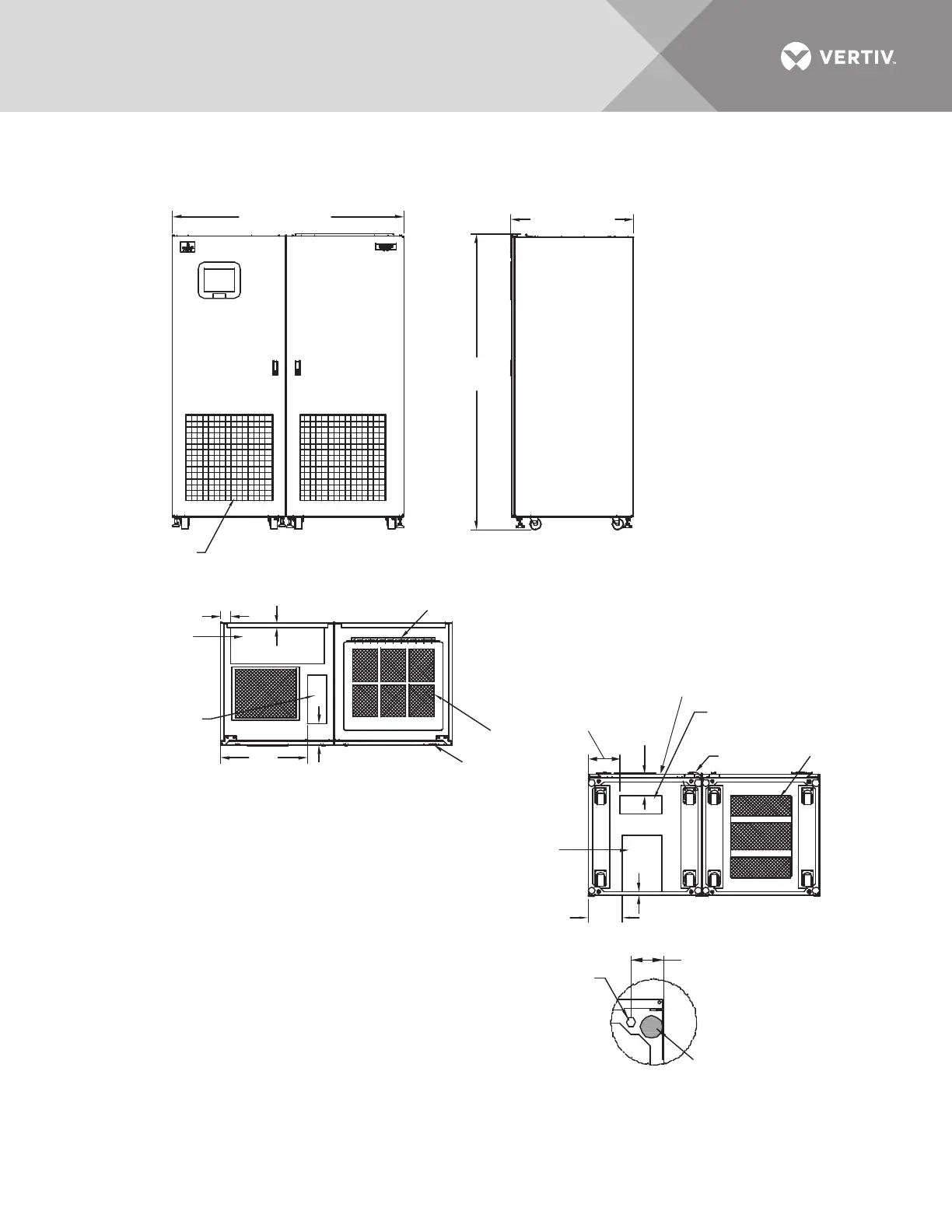

22.8"
(579.1mm)
Air Intake
Air Intake Area
Do not block air
filter, typical
See Detail A
PSP11200
Rev. 4
Bottom Power
Conduit Entry
Area 14.8" x 10.4"
(375.9 x 264.2mm)
Top Power Conduit
Entry Area 24.4" x 9.4"
(619.8 x 238.8mm)
2.75" (69.8mm)
Typical
Stabilizing Foot
1. 18" (457mm) clearance above unit required for air exhaust
2. Installation and service access required in front only.
3. Approximate heat output: 11,737 BTU/Hr (3.44 kW).
4. Approximate weight: 3393 lb. (1542 kg)
5. Unit bottom is structurally adequate for forklift handling.
6. Keep cabinet within 15 degrees of vertical while handling.
7. Color: IBM off-white
8. Open door to replace air filter, disposable type,
size: 1"x25"x25" (25 x 635x635mm)
9. Threaded mounting holes (see Detail A) are provided for seismic
anchoring or floor stand. Mounting bolts must be threaded into the
unit mounting holes from underneath the unit base. If a floor stand
is used, the casters must rest on the floor stand to support the unit's weight.
10. Top and bottom cable entry available through removable access plates.
Remove, punch to suit conduit size and replace.
12mm Diameter
Threaded Mounting
Hole; 4 typically
See Note 9
Hinged Access Panel
To Input Breakers
Air Exhaust
120° Front Door Swing
All doors with
lift-off hinges
2.8" (71.1mm)
Top Control Conduit
Entry Area 12.8" x 5.1"
(325.1 x 129.5mm)
1.1"
(27.9mm)
Bottom Control
Conduit Entry
Area 11" x 4.6"
(279.4 x 116.8mm)
Front
8.4"
(213.6mm)
8.8"
(223.5mm)
5.6"
(142.2mm)
5.8"
(147.3mm)
TOP
RIGHT SIDE
FRONT
BOTTOM
Detail A
(Front of Unit
Shown without Side Panel)
1.1"
(28mm)
77.6"
(1971mm)
32.3" (820mm)
60.9 (1547mm)
