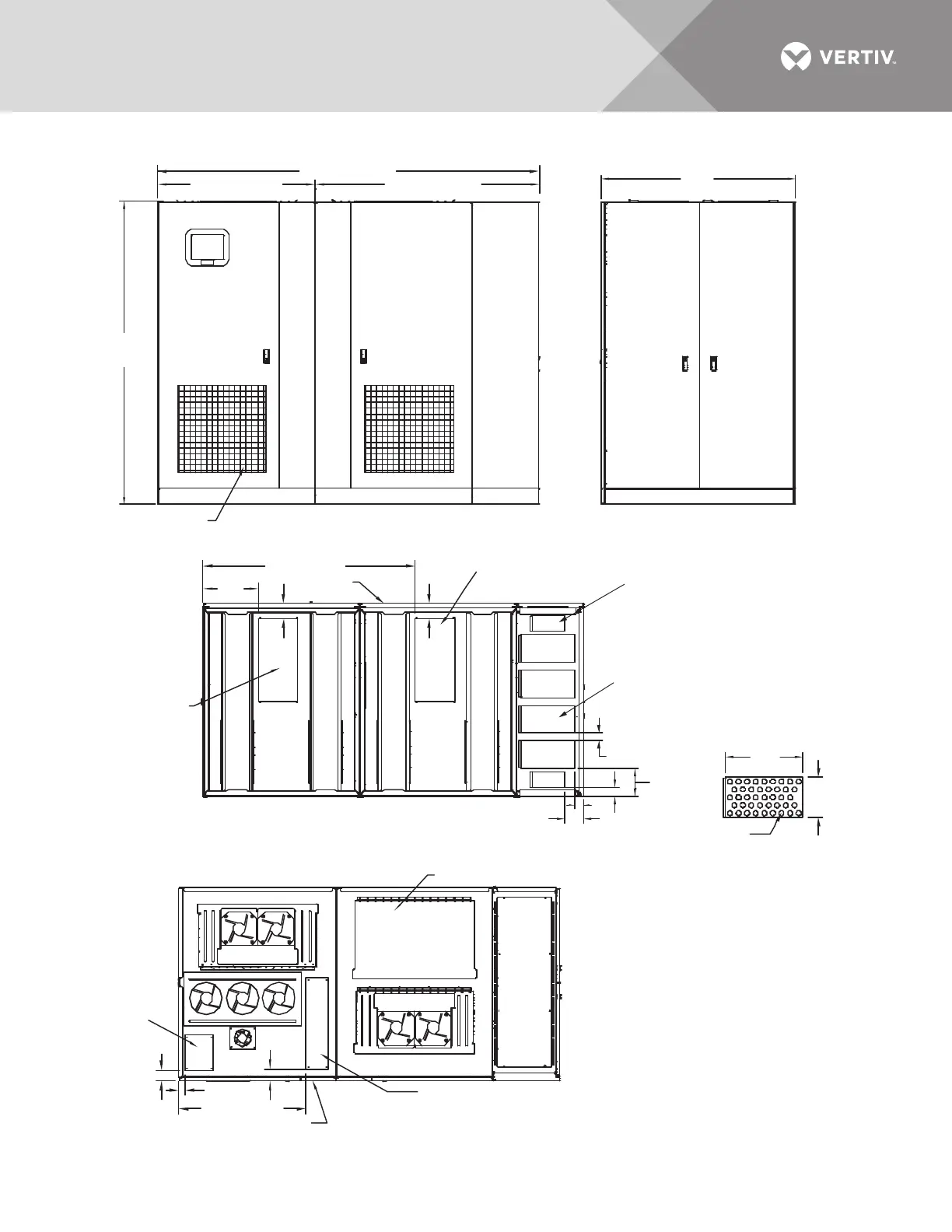

2.3"
2.3"
2.7" (69mm)
DETAIL A
7"
(178mm)
0.88 " Diameter
Typically 42 Places
13.6"
(345mm)
Front
1. Approximate weight: 8618 lb. (3917kg)
2. 18" (457mm) clearance above unit required for
air exhaust.
3. Installation and service access required in
front and right side only.
4. Keep cabinet within 15 degrees of vertical.
5. Color - IBM off-white.
6. Approximate heat output: 39,238 BTU/hr (11.5 kW)
7. Unit bottom is structurally adequate for
forklift handling.
8. Open doors to replace air filter. Disposable type size
1 x 25 x 25 (25 x 635 x 635mm).
9. Top and bottom cable entry available through
removable access plates. Remove, punch to suit
conduit size and replace.
PSP11801
Rev. 1
Bottom Output
Conduit Entry
Area, Typical (4)
Places; See
Detail A
Bottom Subfeed Conduit
Entry Area, Typical 2
Places 8.3" x 8.3"
(211 x 102mm)
Air Intake Area
Do not block air filter.
Typical
Top Input Power
Conduit Entry Area
23.2" x 5.5" (589 x 140mm)
Hinged Access Panel
120° Front Door Swing
All doors with lift-off hinges
Top Control
Entry Area
9" x 7.1"
(229 x 180mm)
BOTTOM
7.2"
(183mm)
4.9"
(124mm)
3.8"
(97mm)
3.8"
(97mm)
2.9"
(74mm)
1.4" (36mm)
1.9" (48mm)
Typical
14.2"
(361mm)
54" (1372mm)
32.3" (820mm)
TOP
RIGHT SIDE
FRONT
49.4"
(1255mm)
96.9" (2461mm)
57" (1448mm)
Shipping Split
39.9" (1013mm)
Shipping Split
77.4"
(1966mm)
Bottom Input Power Conduit
Entry Area,
21" x 10" (533 x 254mm)
Bottom Control
Conduit Entry
Area 21" x 10"
(533 x 254mm)
