Vertiv™ | Liebert® STS2/PDU
™
User Manual | Rev. 6 | 10/2017 43

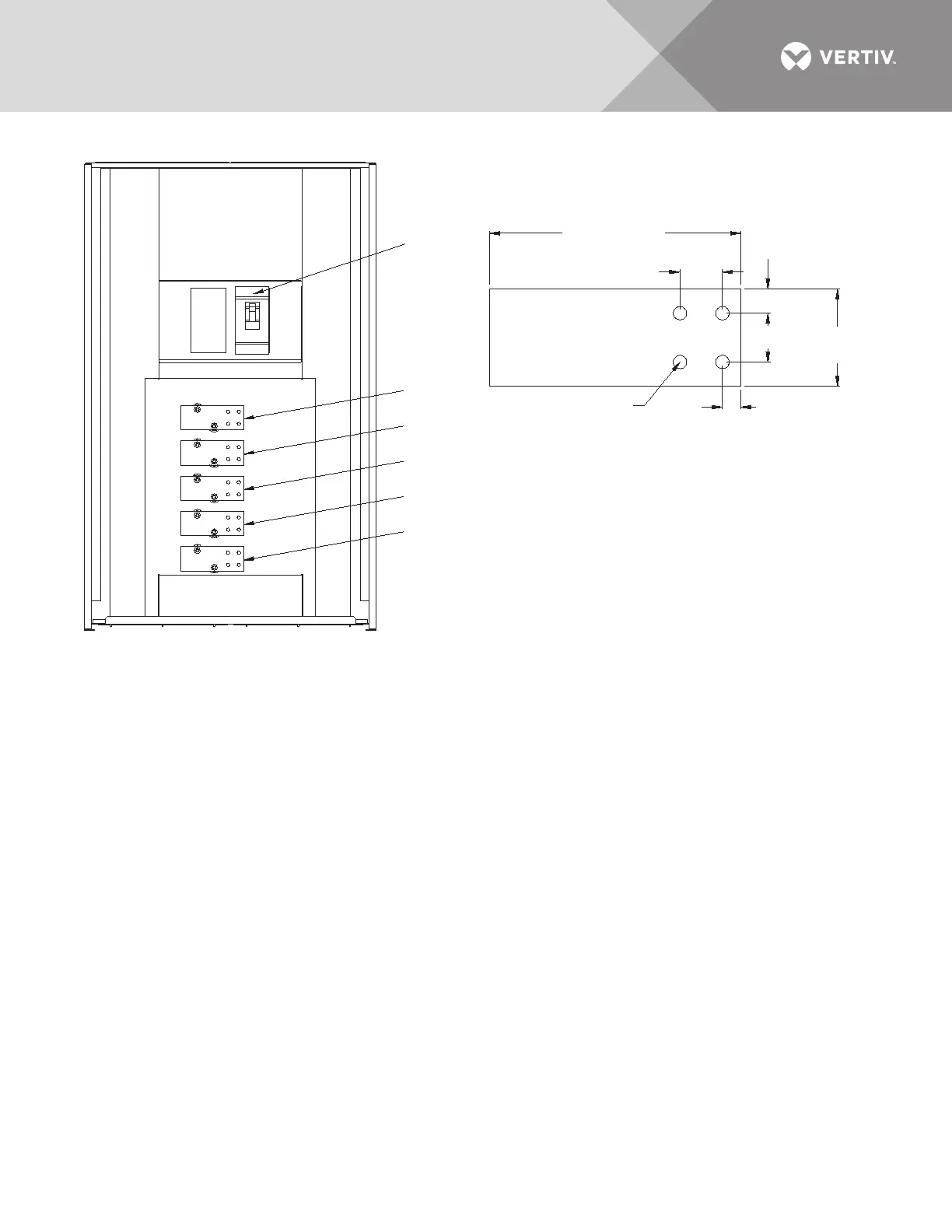

Figure 33 Electrical field connections, 400-600A Liebert STS2/PDU with right side output breaker
PSP11004
Rev. 1
RIGHT SIDE
Doors and Accent Panels Not Shown
Output
Breaker
CB8
Phase A
Phase B
Phase C
Neutral
Ground
BUSBAR DETAIL
1. Phase and ground busbars are 1/4" thick.
2. Neutral busbar is 1/2" thick.
10.3" (262mm)
1"
(25.4mm)
1.75" (44.5mm)
2" (51mm)
4"
(102mm)
.56" DIA.
(14.2mm)
Typ. 4 Places
0.75"
(19mm)
