Vertiv Liebert STS2 - Distribution

Vertiv™ | Liebert® STS2/PDU
™
User Manual | Rev. 6 | 10/2017 23

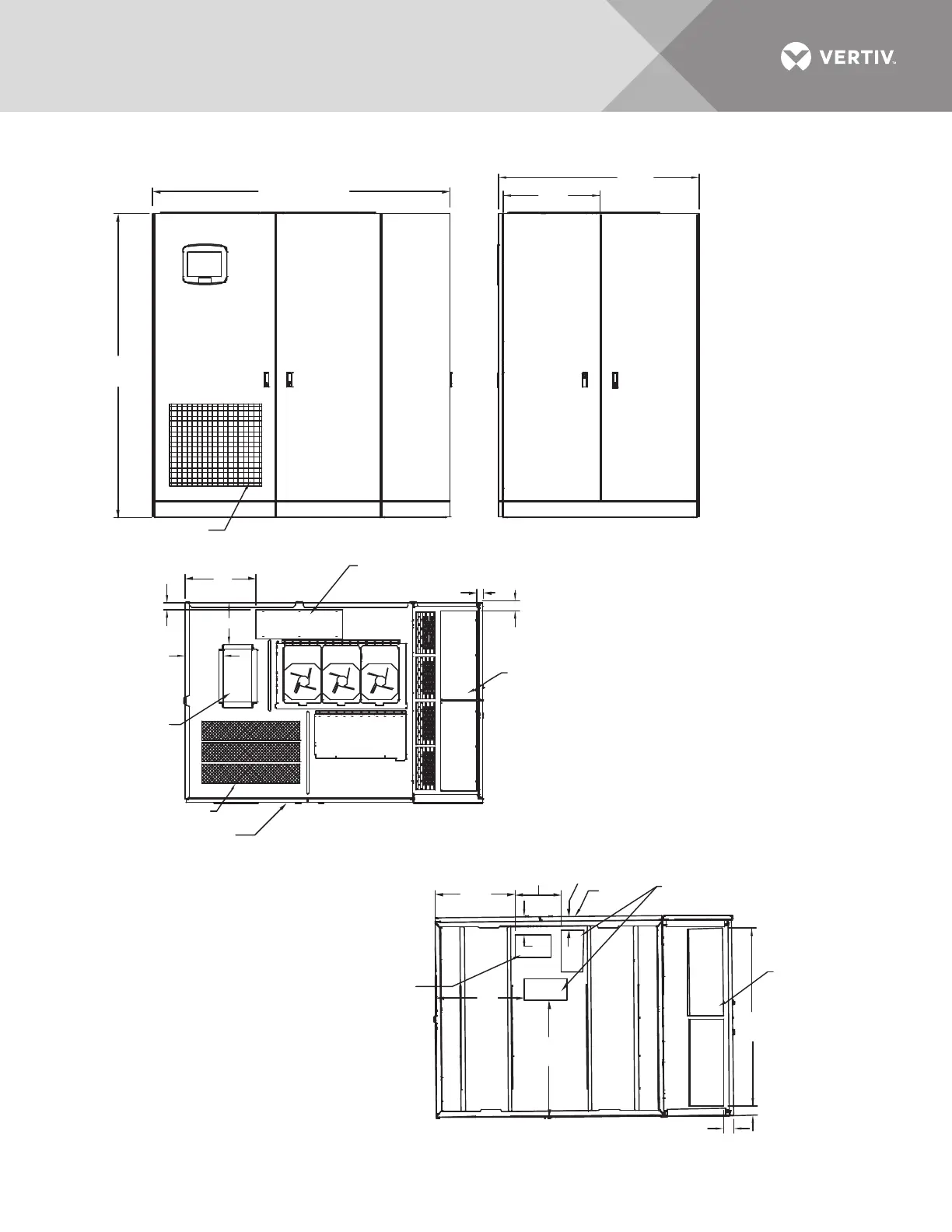

Figure 13 Outline drawing, 400-600A Liebert STS2/PDU with right side output breaker or I-Line distribution
1.9"
(48mm)
2
.3
2
.
3
1.4
1.8'
(46mm)
9.4"
(239mm)
Air Exhaust
Bottom Output
Conduit Entry
Area, 2 Places
21.3" x 8.3"
(541 x 211mm)
Front
11.5" (292mm)
11.2"
(284mm)
1. Approximate weight: 400A - 4608 lb. (2095kg)
600A - 5692 lb. (2587kg).
2. 18" (457mm) clearance above unit required for
air exhaust.
3. Installation and service access required in
front and right side only.
4. Keep cabinet within 15 degrees of vertical.
5. Color - IBM off-white.
6. Approximate heat output:
400A - 19,295 BTU/hr (5.66 kW)
600A - 29,238 BTU/hr (8.57 kW).
7. Unit bottom is structurally adequate for
forklift handling.
8. Open doors to replace air filter. Disposable
type size 1 x 25 x 25 (25 x 635 x 635mm).
9. Top and bottom cable entry available through
removable access plates. Remove, punch to suit
conduit size and replace.
PSP11401
Rev. 2
Bottom Input Power Conduit
Entry Area, Typically 2
10.4" x 5.4" (264 x 137mm)
Bottom Control
Conduit Entry Area
8.7" x 5.5"
(221 x 140mm)
Air Intake Area
Do not block air filter.
Top Input Power
Conduit Entry Area
21.4" x 7" (54x 178mm)
120° Front Door Swing
All doors with lift-off hinges
Top Control
Conduit Box
12.9" x 6.8"
(325 x 130mm)
See Drawing
PSP13401
BOTTOM
43.6"
(1107mm)
17.2"
(437mm)
20.4"
(518mm)
28.3"
(719mm)
TOP
RIGHT SIDE
FRONT
49.4"
(1255mm)
23.9"
(606mm)
73.3" (1861mm)
77.4"
(1966mm)
4.4"
(112mm)
22.7"
(577mm)
3.3"
(84mm)
Top Output
Conduit Entry
Area, 2 Places
21.9" x 8.8"
(556 x 224mm)
