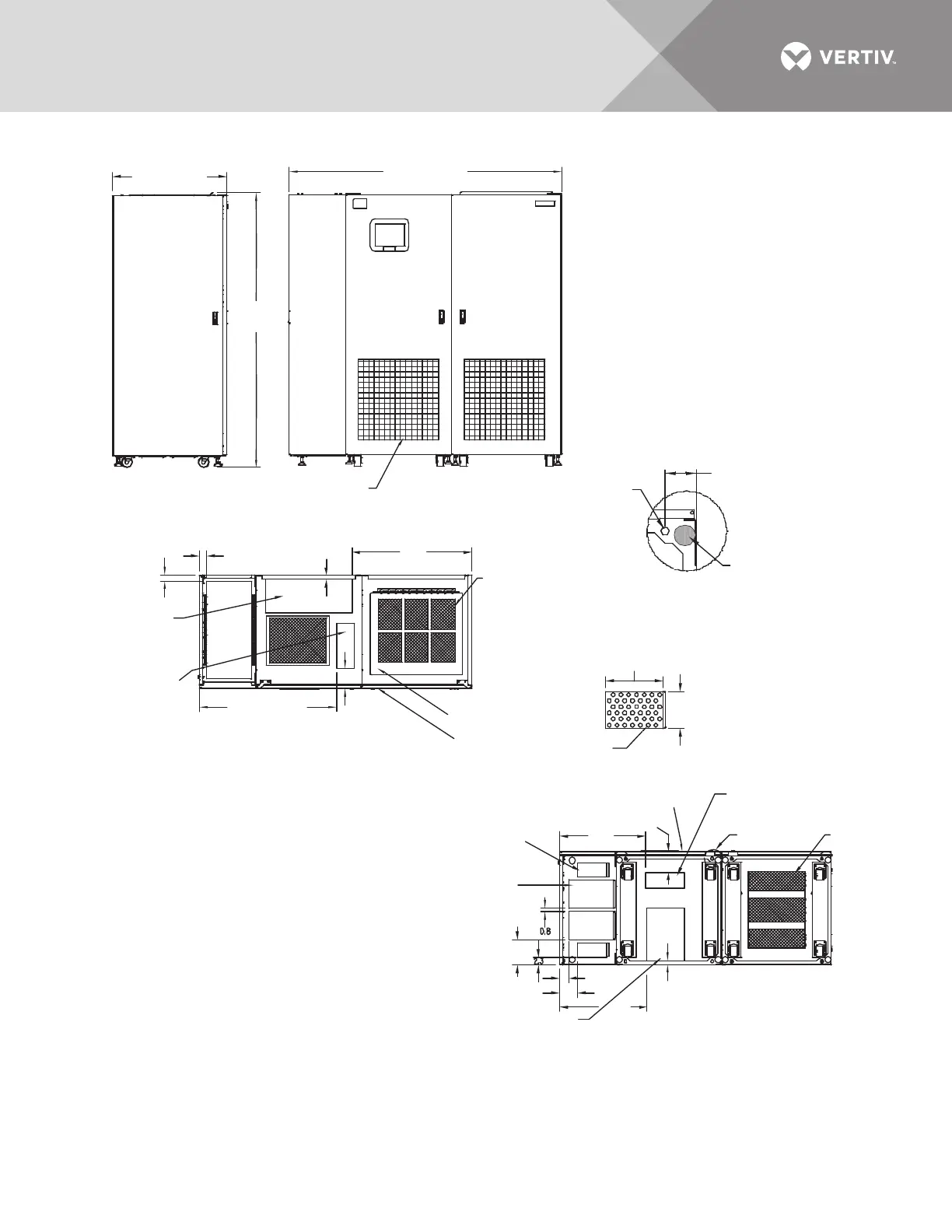

0.88" Diameter
Typically 42 Places
PSP11203
Rev. 2
1.1"
(27.9mm)
1.1"
(27.9mm)
38.7" (983mm)
Bottom Input Power Conduit
Entry Area 14.8" x 10.4"
(376 x 264mm)
Bottom Output
Subfeed Conduit
Entry Area
Typically 2 Places
8.3" x 4"
(211 x 102mm)
Bottom Output
Conduit Entry Area
Typically 2 Places
See Detail B
Air Intake Area
Do not block air
filter, typical
Air
Exhaust
Air
Intake
See Detail A
Top Input Power
Conduit Entry Area
24.4" x 9.4"
(620 x 239mm)
2.75"
(69.8mm)
Typical
Stabilizing
Foot
1.18" (457mm) clearance above unit required for air exhaust
2. Installation and service access required in front only.
3. Heat output approximately 11,737 BTU/hr (3.44kw).
4. Approximate weight: 3993 lb. (1815 kg).
5. Unit bottom is structurally adequate for forklift handling
6. Keep cabinet within 15 degrees of vertical.
7. Color: IBM off-white
8. Open door to replace air filter, disposable type, size:
1" x 25" x 25" (25 x 635 x 635mm).
9. Threaded mounting holes (see Detail A) are provided for
seismic anchoring or floor stand. If a floor stand is used,
the casters must rest on the floor stand to support the unit’s
weight.
10. Top and bottom cable entry available through removable
access plates. Remove, punch to suit conduit size and replace.
12mm Diameter
Threaded Mounting
Hole; 4 typically
See Note 9
Hinged Access
Panel to Input
Breakers
120° Front Door Swing
All doors with
lift-off hinges
Top Control Conduit
Entry Area 12.8" x 5.1"
(325 x 130mm)
Bottom Control
Conduit Entry
Area 11" x 4.6"
(279 x 117mm)
8.1"
(206mm)
12.5"
(318mm)
24.7"
(627mm)
2.6"
(66mm)
5.1"
(130mm)
24.2"
(615mm)
5.8"
(147mm)
5.6"
(142mm)
TOP
LEFT SIDE
Front
7.1" (180mm)
FRONT
BOTTOM
Detail A
(Front of Unit
Shown without Side Panel)
32.3" (820mm)
76.8 (1950mm)
77.6
(1970mm)
1.7"
(43mm)
2.1"
(53mm)
33.7"
(856mm)
Detail B
