Vertiv™ | Liebert® STS2/PDU
™
User Manual | Rev. 6 | 10/2017 42

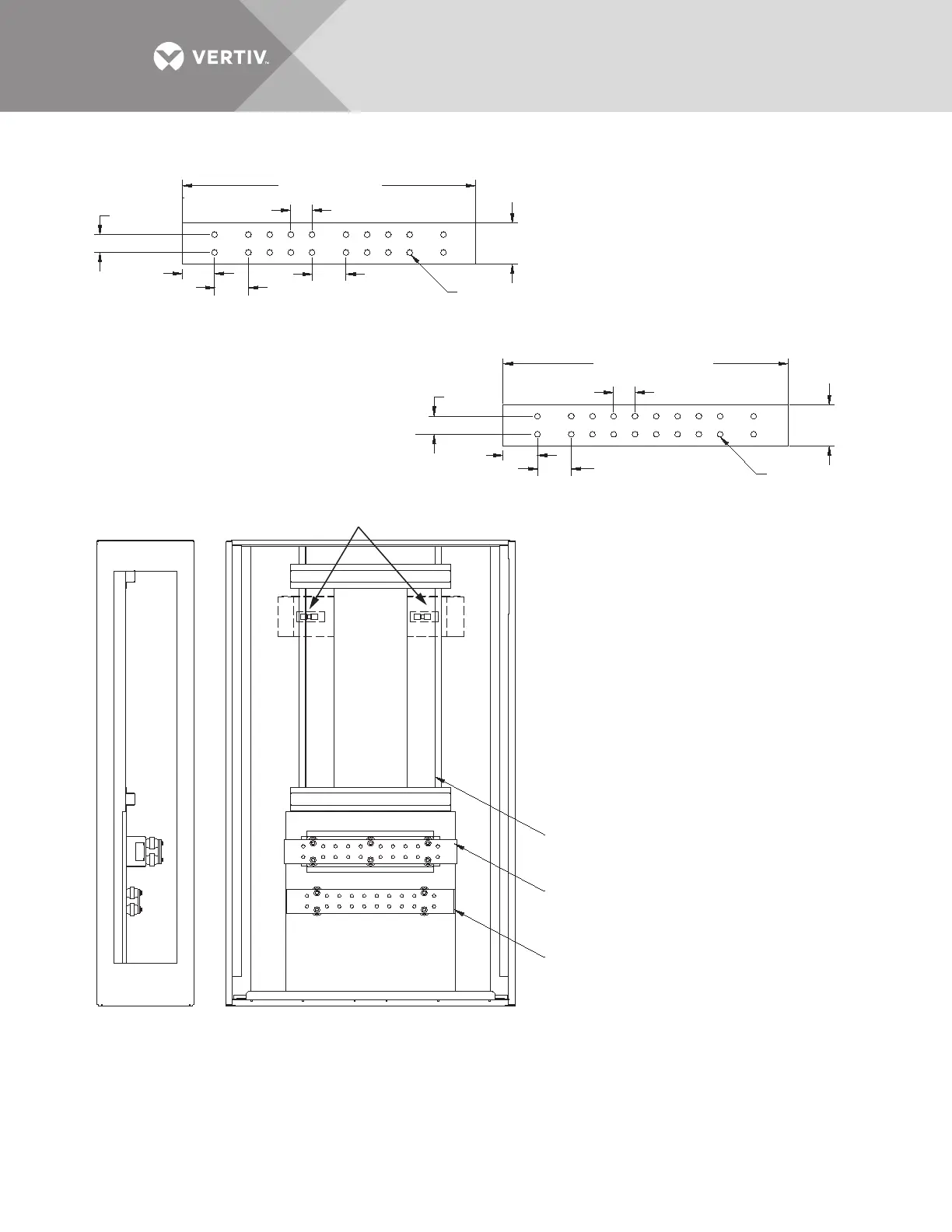

Figure 32 Electrical field connections, Liebert STS2/PDU output with I-Line panelboard
PSP11001
Rev. 2
I - Line Panelboard
Output Neutral
Busbar See Detail A
Output Ground
Busbar See Detail B
LEFT SIDE
Panels Not Shown
28.4" (721mm)
27.7" (703.6mm)
4"
(102 mm)
3.28"
(83.3mm)
3.28"
(83.3mm)
3.28"
(83.3mm)
2.06" (52.3mm) Typ.
DETAIL B
Output Ground
Busbar Approx. 1/4" Thick
DETAIL A
Output Neutral
Busbar Approx. 1/2" Thick
.56" DIA.
(14.2mm)
Typ. 20 Places
4"
(102 mm)
.56" DIA.
(14.2mm)
Typ. 20 Places
2.06" TYP
FRONT
Doors and Accent Panels
Not Shown
Output Breakers
Typical
NOTES
1. 250 - 600A units can accommodate
10 breakers rated 100 - 250A.
2. 800A units can accommodate:
10 breakers rated 100 - 250A or
6 breakers rated 300-400A
1.75"
(44mm)
1.75"
(44mm)
3.1"
(78.7mm)
3.36"
(85.3mm)
