Vertiv | Liebert® STS2/PDU
User Manual | Rev. 6 | 10/2017 56

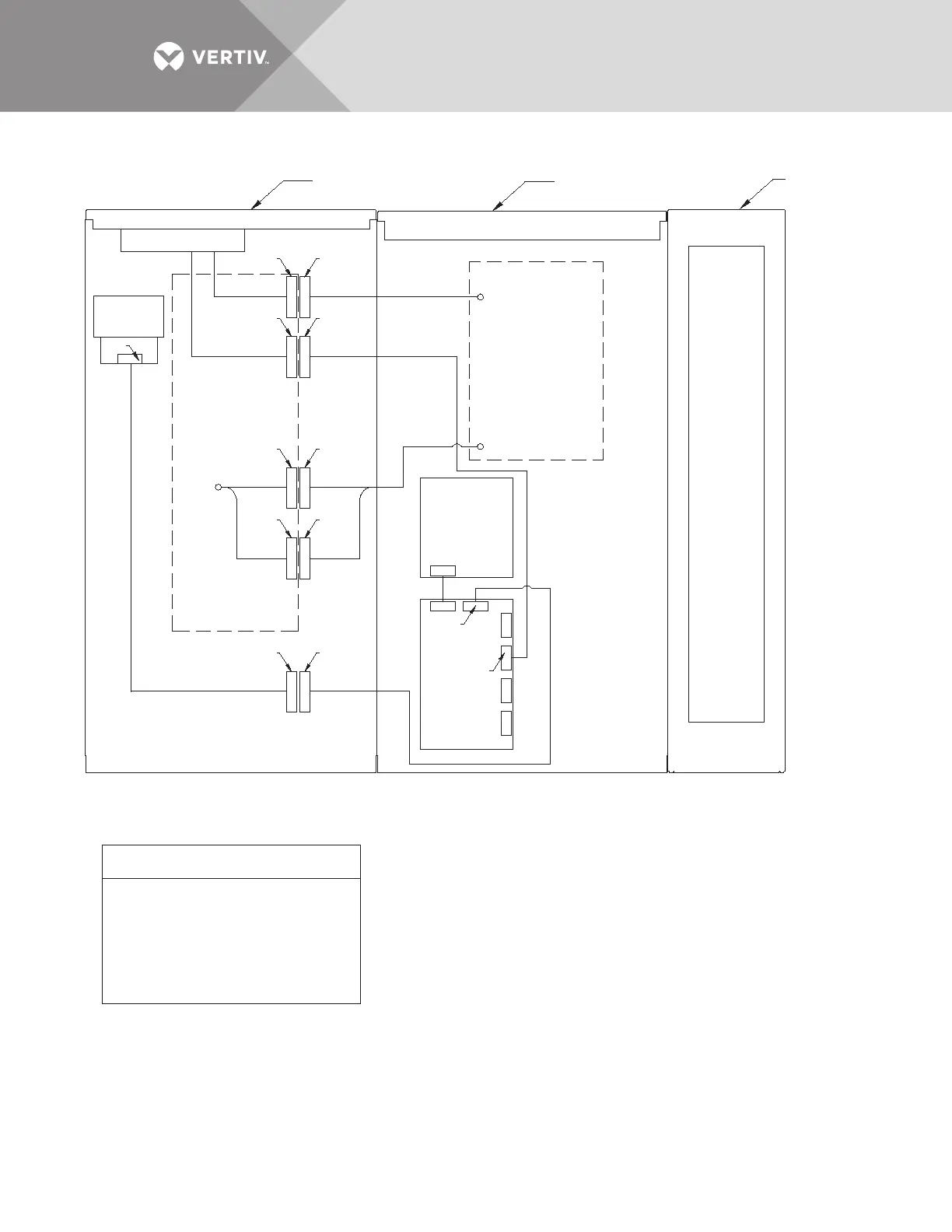

Figure 46 Control wiring, 800A Liebert STS2/PDU, right side distribution
PSP13802
Rev. 0
CONNECT THE FOLLOWING:
CN15 Cap to CN15 Plug
CN25 Cap to CN25 Plug
CN31 Cap to CN31 Plug
CN34 Cap to CN34 Plug
CN35 Cap to CN35 Plug
P999
FRONT
Accent Panels Removed
CN34
(Cap)
CN34
(Plug)
CN31
(Cap)
CN15
(Cap)
CN25
(Cap)
CN25
(Plug)
CN15
(Plug)
CN31
(Plug)
CN35
(Cap)
STS
Section
CN35
(Plug)
P17
Breaker
Area
Breaker
Section
Distribution
Section
Display
HMI
P66
STS
AREA
Fan Assembly
Monitor
Board
VI
Board
