Vertiv | Liebert® STS2/PDU
User Manual | Rev. 6 | 10/2017 45

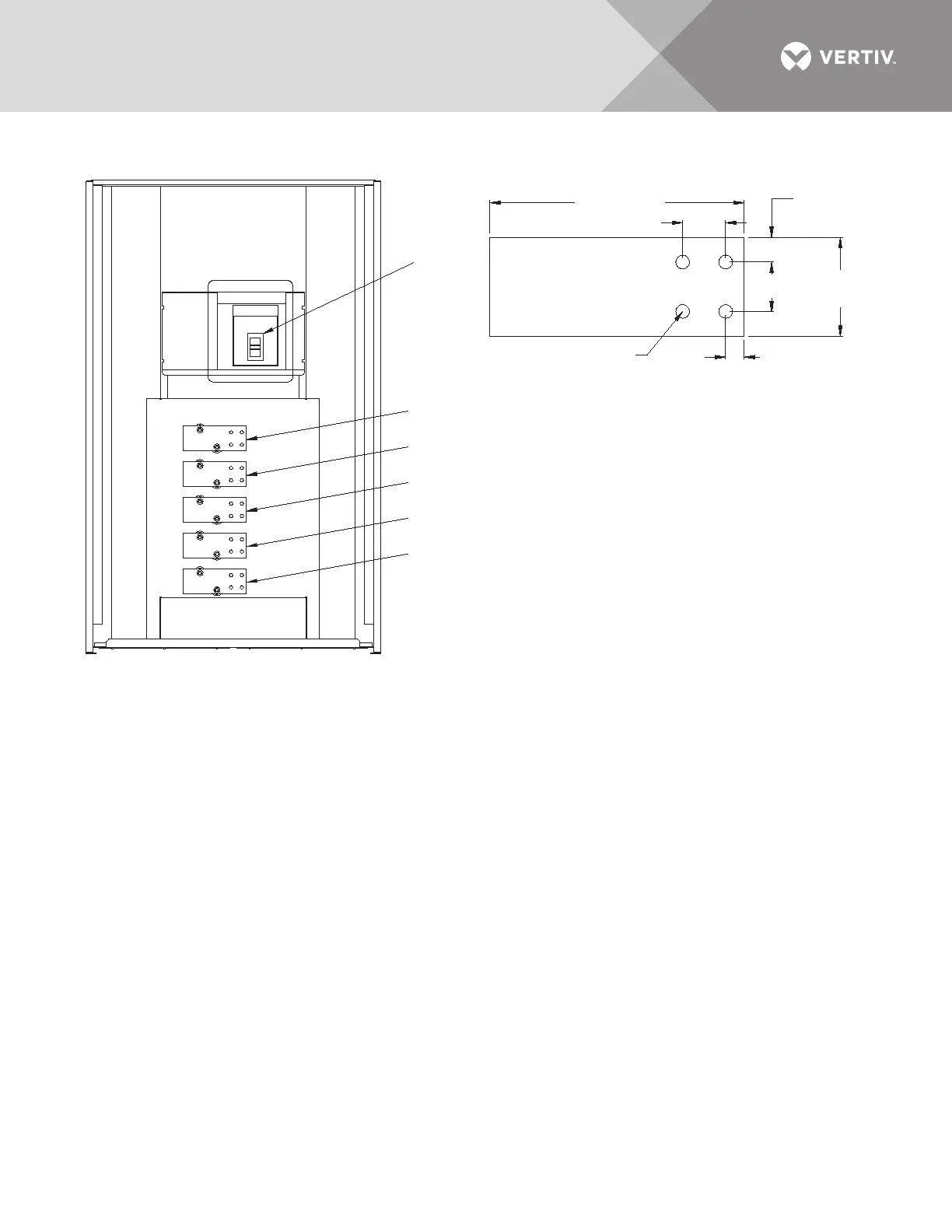

Figure 35 Electrical field connections, 800A Liebert STS2/PDU with right side output breaker
PSP11006
Rev. 0
RIGHT SIDE
Doors and Accent Panels Removed
Output
Breaker
CB8
Phase A
Phase B
Phase C
Neutral
Ground
Notes
1. Phase and ground busbars are 1/4" thick.
2. Neutral busbar is 1/2" thick.
BUSBAR DETAIL
10.3" (262mm)
1"
(25.4mm)
2" (51mm)
1.75" (44.5mm)
0.75" (19mm)
4"
(102mm)
0.56" (14.2mm)
Typical, 4 Places
