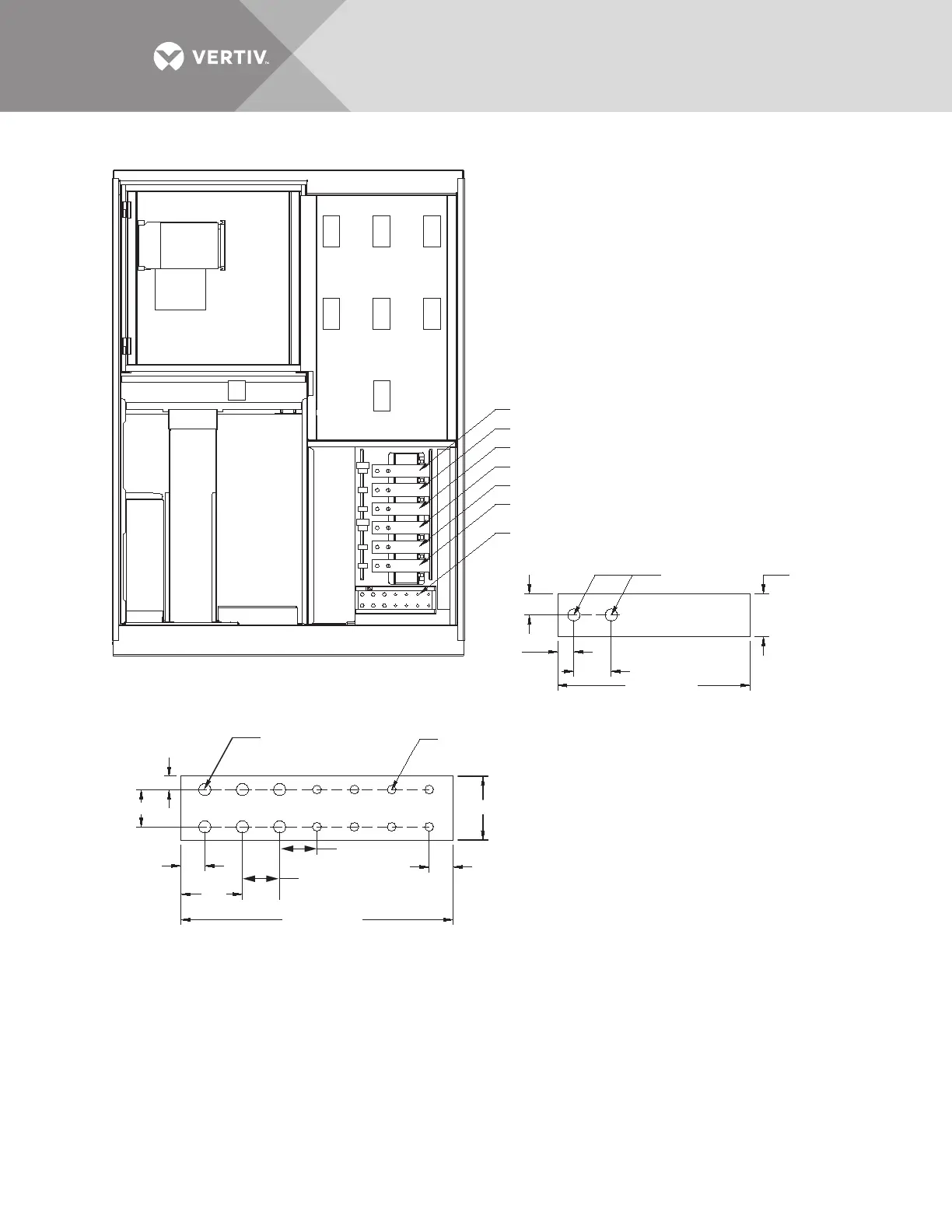

Figure 26 Electrical field connections, 400-600A Liebert STS2/PDU input with CB3
Ground
CB6 CB1 CB2
CB7 CB5CB4
CB3
FRONT
Doors and Accent Panels
Not Shown
.56" DIA.
(14.3mm)
.75"
(19.1mm)
.56" DIA.
(14.3mm)
Typ. 6 Places
.41" DIA.
(10.3mm)
Typ. 8 Places
2"
(50.8mm)
1" (25.4mm)
1. Phase, neutral and ground busbars are 1/4" thick.
2. Control wiring and power wiring must be run
in separate conduit. Output cables should be run
in a separate conduit from input cables.
3. Aluminum and copper clad aluminum cables
are not recommended.
4. All wiring is to be in accordance with national
and local electrical codes
INPUT BUSBAR DETAIL, TYPICAL
GROUND BUSBAR DETAIL
PSP11012
Rev. 1
1.75"
(44.5mm)
1.75"
(44.5mm)
1.75" (44.5mm)
1.75" (44.5mm)
0.63"
(15.9mm)
1.13"
(28.6mm)
3" (76.2mm)
1.13" (28.6mm)
2.88"
(73.2mm)
12.75" (323.9mm)
1.77"
(45mm)
9" (228.6mm)
Source 1 Input Ø B
Source 1 Input Ø A
Source 1 Input Ø C
Source 2 Input Ø B
Source 2 Input Ø A
Source 2 Input Ø C
