Vertiv Liebert STS2 - Figure 12 Outline Drawing,400-600 A Liebert STS2;PDU with Right Side Inline Distribution

Vertiv™ | Liebert® STS2/PDU
™
User Manual | Rev. 6 | 10/2017 22

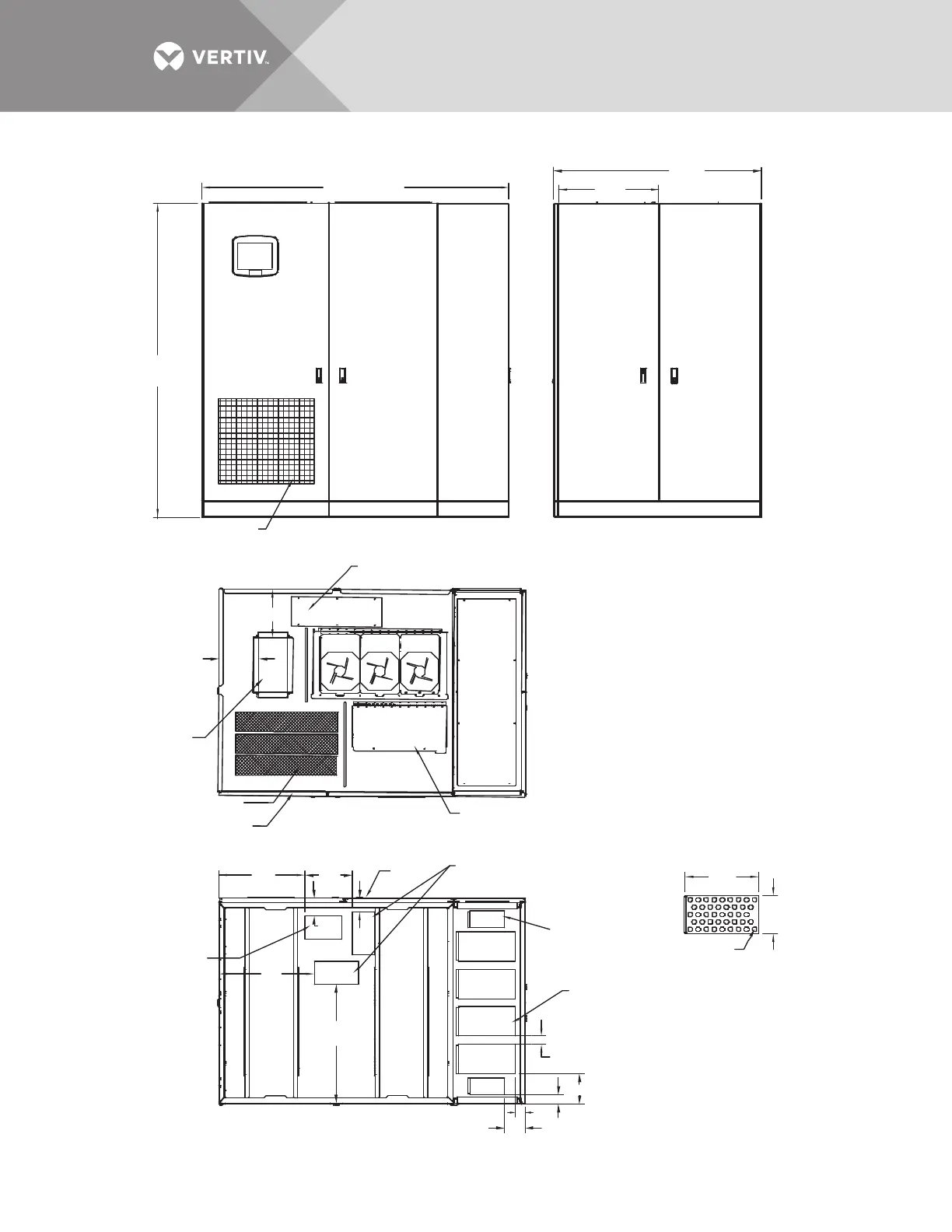

Figure 12 Outline drawing,400-600A Liebert STS2/PDU with right side inline distribution
Front
3
.3
9.4"
(239mm)
11.5" (292mm)
2.3"
(58.4mm)
2.3"
1. Approximate weight: 400A - 4608 lb. (2095kg)
600A - 5692 lb. (2582kg).
2. 18" (457mm) clearance above unit required for
air exhaust.
3. Installation and service access required in
front and right side only.
4. Keep cabinet within 15 degrees of vertical.
5. Color - IBM off-white.
6. Approximate heat output:
400A - 19,295 BTU/hr (5.66 kW)
600A - 29,238 BTU/hr (8.57 kW).
7. Unit bottom is structurally adequate for
forklift handling.
8. Open doors to replace air filter. Disposable type, size
1 x 25 x 25 (25 x 635 x 635mm).
9. Top and bottom cable entry available through
removable access plates. Remove, punch to suit
conduit size and replace.
0.88" Diameter
Typically 42 Places
PSP11400
Rev. 3
11.2"
(284mm)
Bottom Input Power Conduit
Entry Area, typically 2
10.4" x 5.4" (264 x 137mm)
Bottom Subfeed
Conduit Entry Area
Typically 2 Places
8.3" x 4"
(211 x 102mm)
Air Intake Area
Do not block air filter
Top Input Power
Conduit Entry Area
21.4" x 7" (620 x 239mm)
Hinged Access
Panel to Input
Breakers
120° Front Door Swing
All doors with lift-off hinges
Top Control
Conduit Box
Entry Area
12.9" x 6.8"
(325 x 130mm)
See Drawing
PSP13401
Bottom Control
Conduit Entry
Area 8.7" x 5.5"
(221 x 140mm)
Bottom Output
Conduit Entry
Area, Typically 4
Places; See Detail A
BOTTOM
28.3"
(719mm)
22.7"
(577mm)
20.4"
(518mm)
4.9"
(124mm)
13.6"
(345mm)
TOP
RIGHT SIDE
7.2" (183mm)
7" (178mm)
FRONT
Detail A
49.4"
(1255mm)
23.9"
(606mm)
73.3" (1861mm)
77.4"
(1966mm)
1.9" (48mm)
Typical
4.4"
(112mm)
