Vertiv Liebert STS2 - Figure 19 Outline Drawing, 800 A Liebert STS2;PDU with Left Side Inline Distribution

Vertiv™ | Liebert® STS2/PDU
™
User Manual | Rev. 6 | 10/2017 29

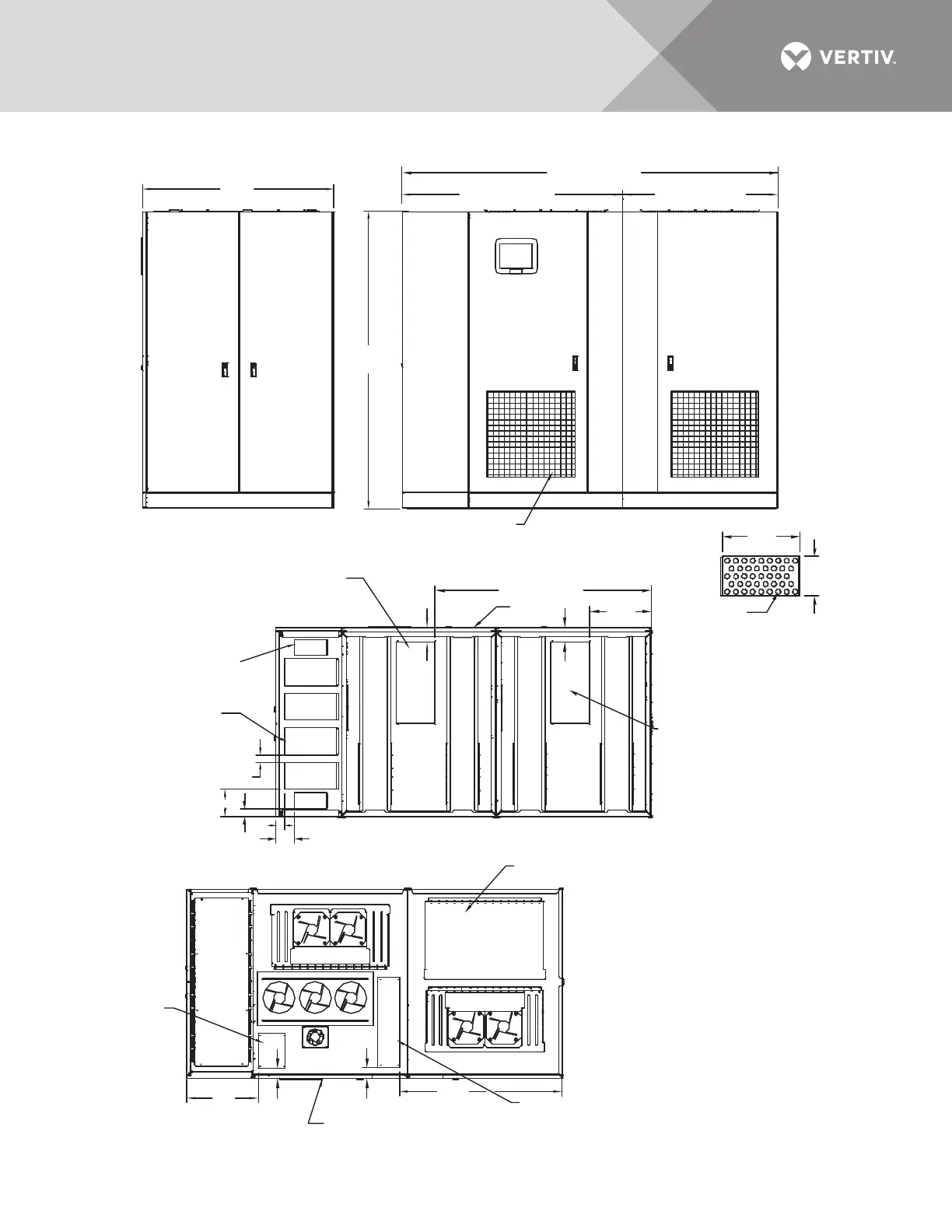

Figure 19 Outline drawing, 800A Liebert STS2/PDU with left side inline distribution
Front
2.3" (58mm)
2.7"
(69mm)
2.9"
(74mm)
2.3"
1.9" Typ.
DETAIL A
7"
(178mm)
0.88 " Diameter
Typically 42 Places
13.6"
(345mm)
1. Approximate weight: 8618 lb. (3917kg)
2. 18" (457mm) clearance above unit required for
air exhaust.
3. Installation and service access required in
front and left side only.
4. Keep cabinet within 15 degrees of vertical.
5. Color - IBM off-white.
6. Approximate heat output: 39,238 BTU/hr
(11.5 kW)
7. Unit bottom is structurally adequate for
forklift handling.
8. Open doors to replace air filter. Disposable
type size 1 x 25 x 25 (25 x 635 x 635mm).
9. Top and bottom cable entry available through
removable access plates. Remove, punch
to suit conduit size and replace.
PSP11803
Rev. 0
Bottom Output
Conduit Entry
Area, Typical 4
Places; See
Detail Area A
Bottom Subfeed
Conduit Entry Area,
Typical 2 Places 8.3" x 4"
(211 x 102mm)
Air Intake Area
Do not block air filter.
Typical
Top Input Power Conduit
Entry Area 23.2" x 5.5"
(589 x 140mm)
Hinged
Access
Panel
120° Front Door Swing
All doors with lift-off hinges
BOTTOM
4.9"
(124mm)
41.9"
(1064mm)
18.3"
(465mm)
3.8"
(97mm)
3.8"
(97mm)
14.2"
(361mm)
54" (1372mm)
TOP
LEFT SIDE
FRONT
49.4"
(1255mm)
96.9" (2461mm)
57" (1448mm)
Shipping Split
39.9" (1013mm)
Shipping Split
77.4"
(1966mm)
Bottom Input
Power Conduit
Entry Area,
21" x 10"
(533 x 254mm)
Bottom Control
Conduit Entry
Area 21" x 10"
(533 x 254mm)
7.2" (183mm)
Top Control
Conduit Entry
A
rea 9" x 7.1"
(229 x 180mm)
