1-82 Engine Mechanical Industrial 1.6L

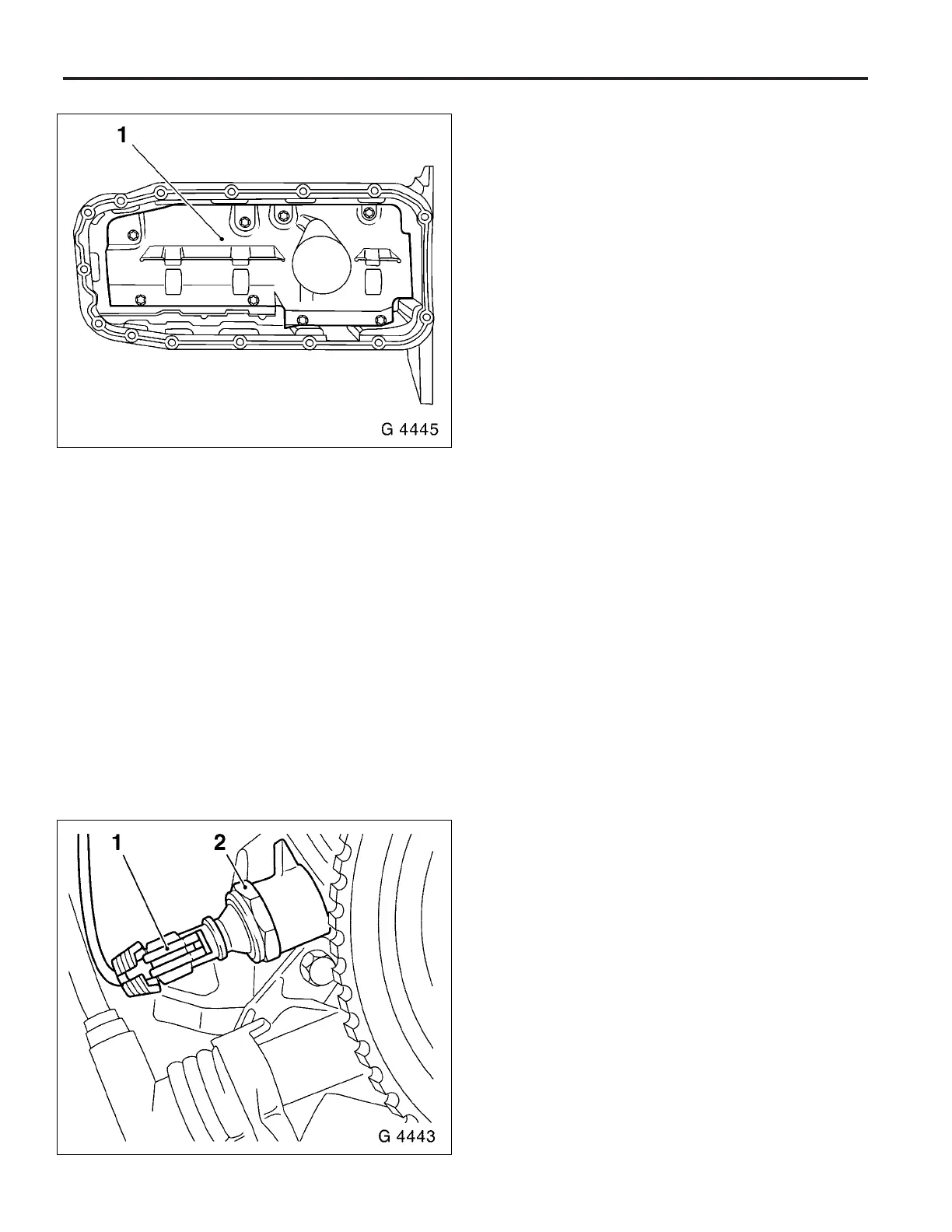

Oil Baffle Plate, Remove and Install
Removal Procedure
1. Remove oil pan – see operation Oil Pan, Remove and
Install.
2. Remove oil baffle plate (1).
Installation Procedure
1. Attach oil baffle plate to oil pan.
Tighten
Tightening torque 8 Nm / 6 lb. ft.
2. Install oil pan – see operation Oil Pan, Remove and
Install.
Oil Pressure Switch, Remove and Install
Removal Procedure
1. Detach wiring harness plug (1) from oil pressure switch.
2. Disconnect oil pressure switch (2) from oil pump – place
collection pan underneath.
Installation Procedure
1. Attach oil pressure switch to oil pump with new seal
ring.
Tighten
Tightening torque 30 Nm / 22 lb. ft.
2. Connect wiring harness plug to oil pressure switch.
Inspect
1. Check engine oil level and correct if necessary.
