1-86 Engine Mechanical Industrial 1.6L
Starter

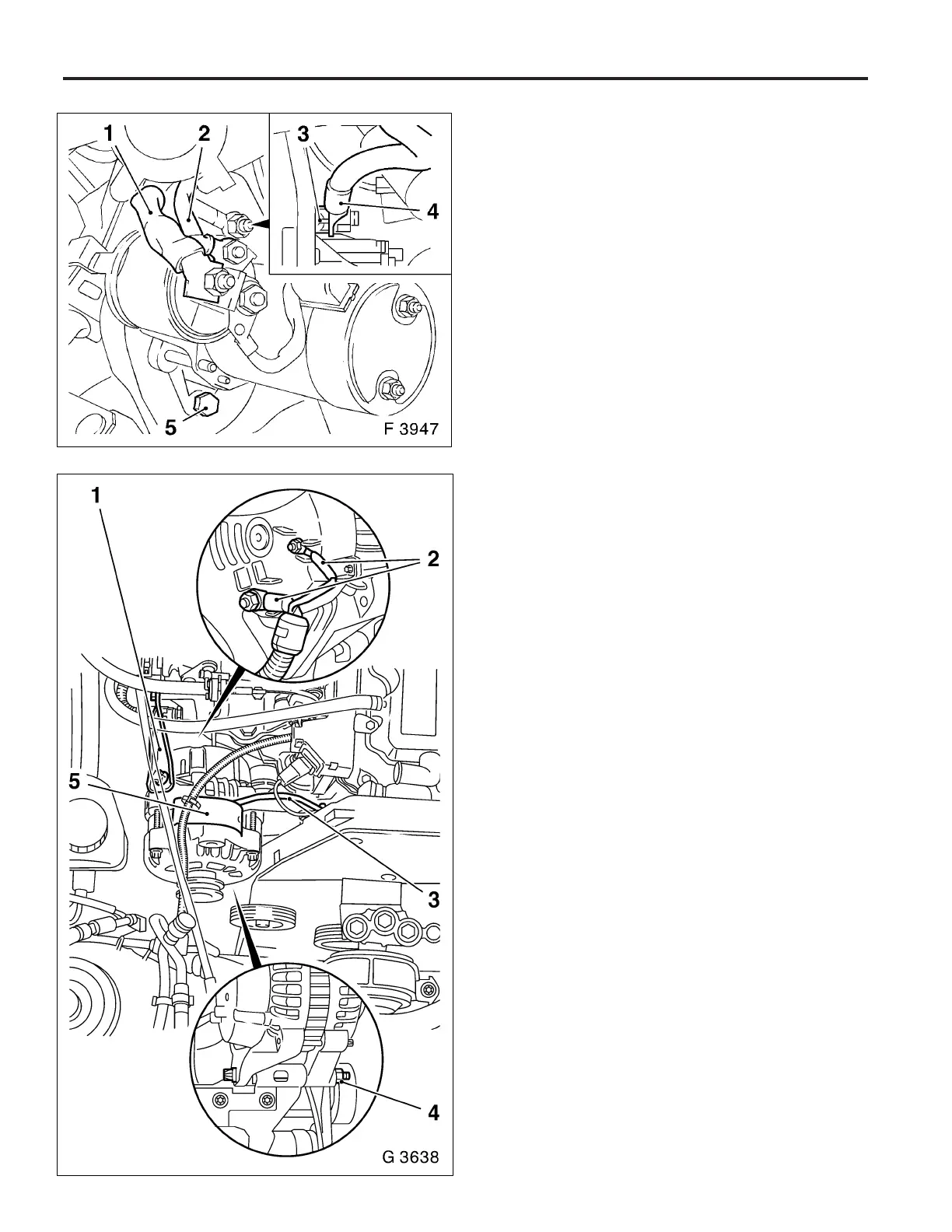

Starter, Remove and Install
Removal Procedure
1. Disconnect negative battery cable.
2. Remove cable connections (1) and (2) from starter.
3. Remove ground cable (4).
4. Remove fastening nut (3) and fastening bolt (5) from
starter.
5. Remove starter.
Installation Procedure
1. Install starter and fastening bolts.
Tighten
Tightening torque 25 Nm / 18.5 lb. ft.
3. Connect ground cable.
4. Install cable connections on starter – ensure correct
cable routing.
5. Attach negative battery cable.
Alternator
Alternator, Remove and Install
Removal Procedure
1. Remove ribbed V–belts – see operation Ribbed V–belts,
Remove and Install.
2. Remove alternator support (1) from alternator and intake
manifold.
3. Release alternator from alternator shackle (3) with wiring
harness bracket (5) and swing rearward.
4. Unclip cable bunch from cable bunch bracket and re-
move cable bunch bracket.
5. Remove cable connections (2) from alternator.
6. Remove lower alternator fastening bolt (4) and remove
alternator from alternator support.
