Industrial 1.6L Engine Mechanical 1-55
Seal Ring – Rear Crankshaft, Replace
Removal Procedure
1. Remove flywheel or drive disc – see operation Flywheel,
Remove and Install or Drive Disc, Remove and Install.

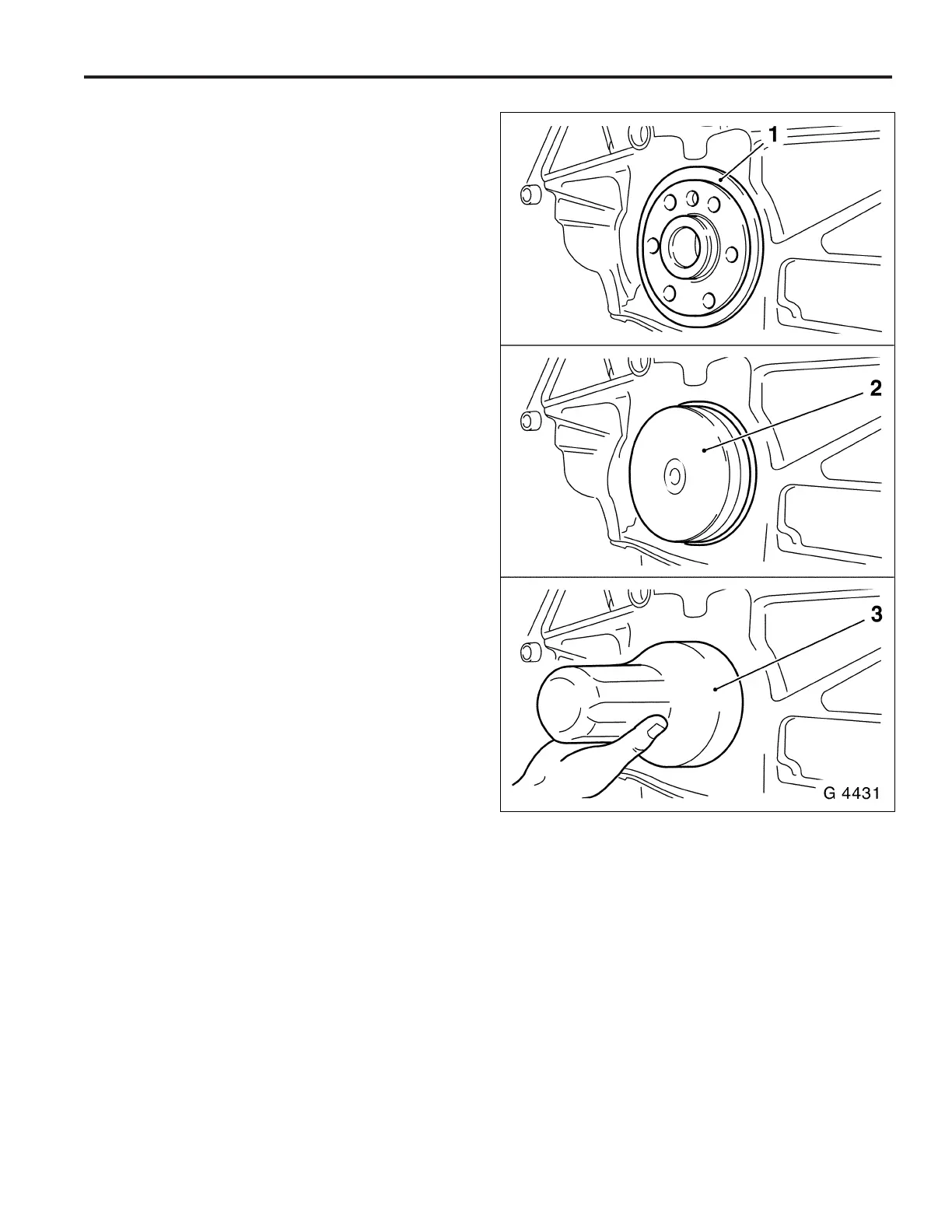

2. Edge out seal ring (1) with suitable tool.
Important: Do not damage sealing surfaces.
Clean
1. Clean sealing surfaces and remove gasket remnants.
Installation Procedure
1. Coat sealing lip of new seal ring with silicon grease
(white) and position with sealed side on Protective Sleeve
KM–658–2 (2).
2. Connect protective sleeve with attached seal ring to crank-
shaft journal and press in flush. Place Installer Sleeve
KM–658–1 (3) on Protective Sleeve KM–658–2 (2) and
drive in seal ring until it sits flush in housing.
3. Install flywheel or drive disc – see operation Flywheel,
Remove and Install or Drive Disc, Remove and Install.
