1-14 Engine Mechanical Industrial 1.6L
Crank Drive, Cylinder Block (Continued)

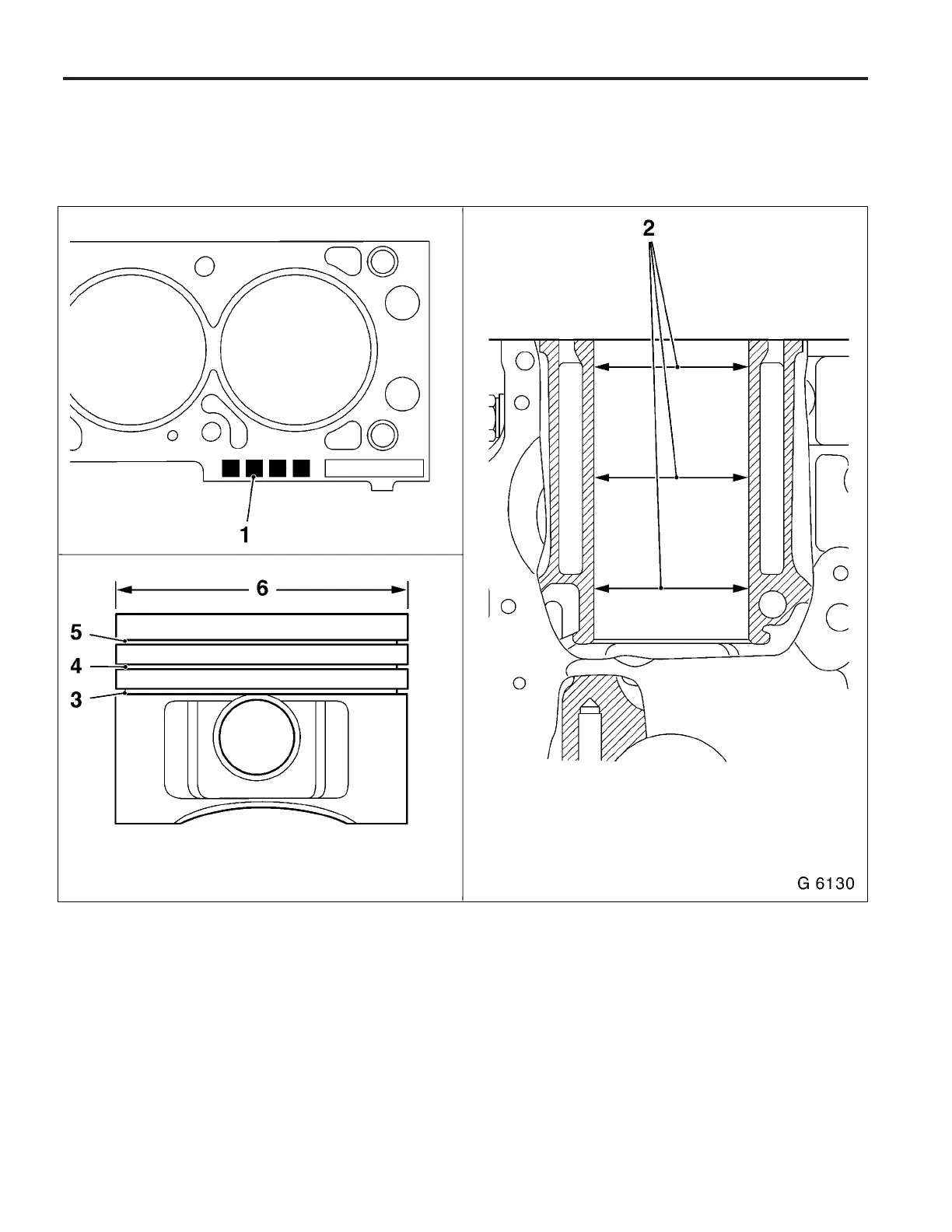

Illustration
1 Index – identification of cylinder bore
2 Cylinder bore
3 Double bevelled ring with spiral–type expander
4 Tapered compression ring or double trapezoidal ring
5 Rectangular compression ring
6 Piston diameter
