Industrial 1.6L Engine Mechanical 1-47
Camshaft Housing, Check for Plane Surface
Clean
1. Clean sealing surfaces and remove gasket remnants.
Inspect
1. Check sealing surfaces in length and width for deforma-
tion and check for warping along the diagonals – use
straight edge. If deformed or warped, replace camshaft
housing.
Measure

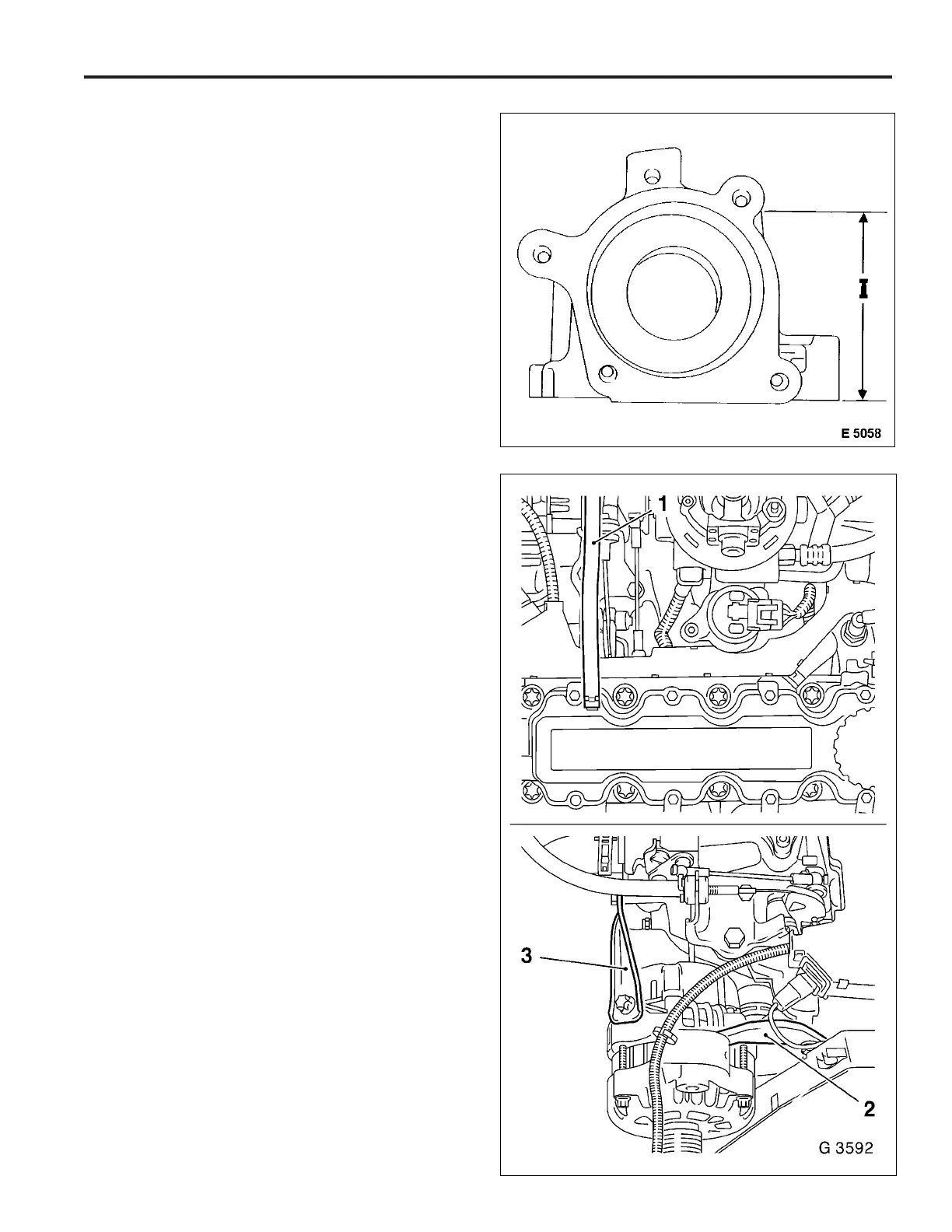

1. Height of camshaft housing (sealing surface to sealing
surface).
Dimension I: 66.5 mm
Cylinder Head, Remove and Install
Important: Remove cylinder head only with cold engine
(room temperature).
Removal Procedure
1. Detach battery ground cable.
2. Open coolant drain bolt – collect escaping coolant.
3. Remove engine bleeding hose (1) from camshaft housing
cover.
4. Remove upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
5. Remove ribbed V–belts – see operation Ribbed V–belts,
Remove and Install.
6. Detach alternator support (3) from alternator and intake
manifold. Release alternator from alternator shackle (2)
and swing alternator rearward.
To Next Page
