Industrial 1.6L Engine Cooling 2-13
Fan Shroud Replacement
Removal Procedure
1. Remove the fan guard. Refer to Fan Guard
Replacement.
2. Disconnect the radiator overflow hose clamps from
the fan shroud.
3. Remove the fan shroud mounting bolts and
washers.
4. Remove the radiator upper support brackets at the
radiator.
5. Tilt the radiator forward and remove the fan shroud.

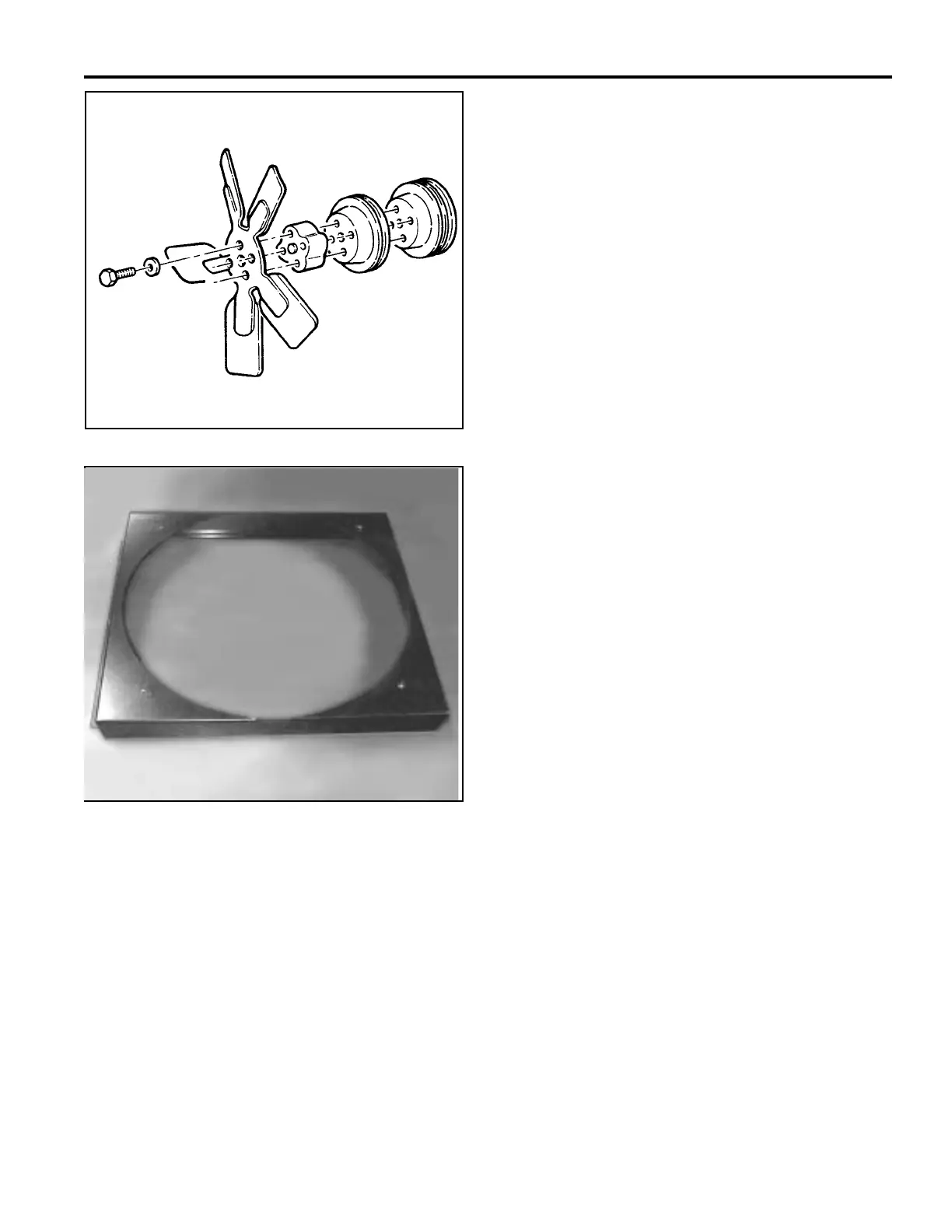

8. Remove the fan blade mounting bolts and washers.
9. Remove the fan, pulley and spacer, if equipped.
Installation Procedure
1. Position fan, pulley, and spacer, if equipped, onto
the water pump shaft.
Notice: Refer to Fastener Notice.
2. Install the fan blade mounting bolts and washers.
Tighten
Tighten the fan blade mounting bolts to 15-18 N•m
(10-13 lb ft).
3. Install the Drive belt. Refer to Drive Belt
Replacement.
4. Install the radiator upper support bolts.
Tighten
Tighten the radiator upper support bracket mounting bolts
to 25 N•m (18 lb ft).
5. Install the fan guard. Refer to Fan Guard
Replacement.
6. Connect the upper radiator hose to the radiator.
Refer to Radiator Hose Replacement.
7. Connect the fuel injection coolant hose to the
radiator.
Tighten
Tighten the fuel injection coolant hose clamp to 2.5 N•m
(22 lb in).
8. Fill the cooling system. Refer to Draining and Filling
Cooling System.
