Industrial 1.6L Engine Mechanical 1-27
Toothed Belt Cover, Lower Part, Remove
and Install
Removal Procedure
1. Remove upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
2. Remove ribbed V–belts – see operation Ribbed V–belts,
Remove and Install.

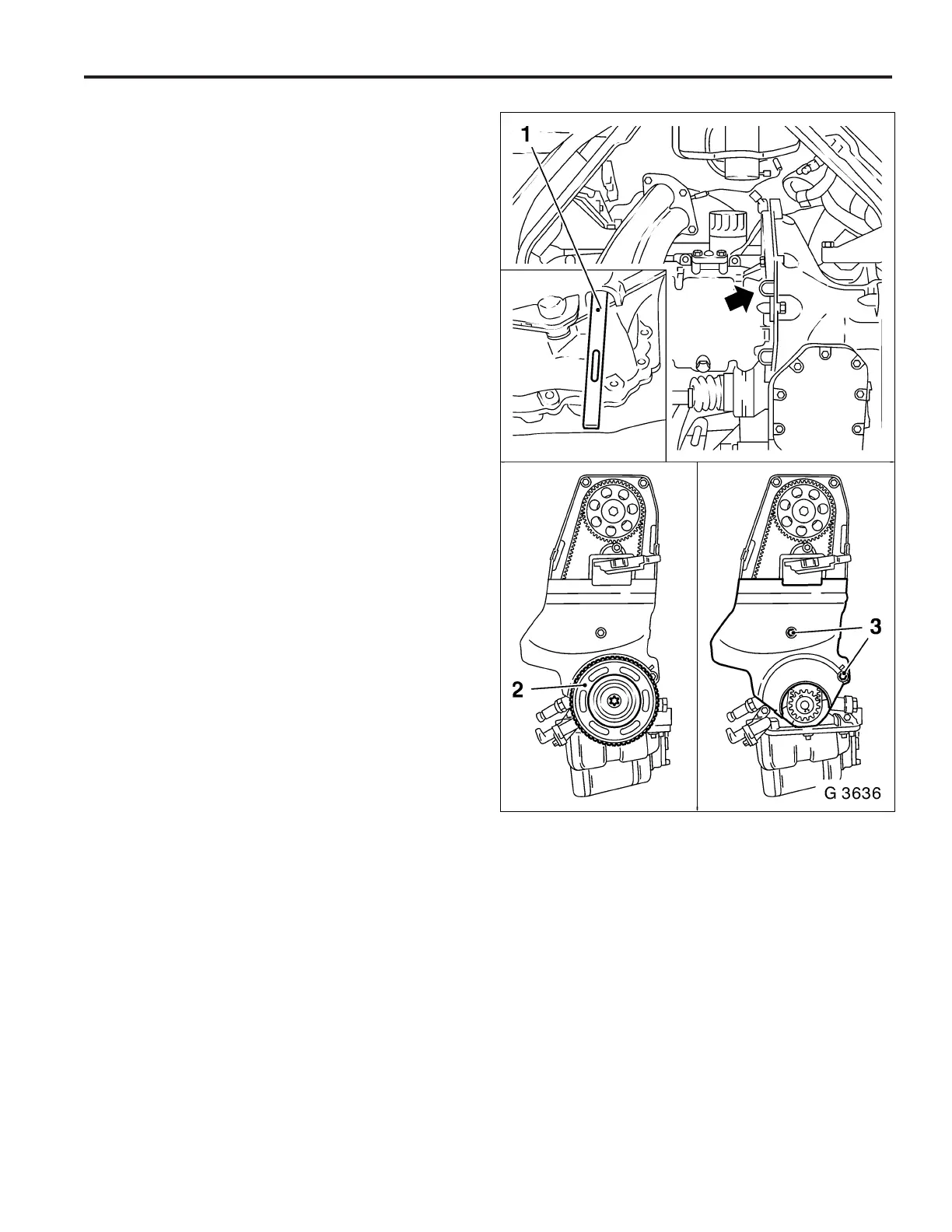

4. Lever closure plug (arrow) out of opening with screw
driver. Lock drive disk or flywheel with KM–911 (1).
5. Detach increment disc (2) from crankshaft.
6. Remove fastening bolts (3) and remove lower part of
toothed belt cover from rear toothed belt cover.
Installation Procedure
1. Attach lower part of toothed belt cover to rear toothed
belt cover.
Tighten
Tightening torque 4 Nm / 3 lb. ft.
2. Attach increment disc with new fastening bolt to crank-
shaft.
Tighten
Tightening torque 95 Nm / 70 lb. ft. + 30° + 15°.
3. Remove Locking Tool KM–911 and insert new closure
plug in aperture.
4. Install ribbed V–belt – see operation Ribbed V–belt,
Remove and Install.
5. Install upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
