1-34 Engine Mechanical Industrial 1.6L

Cylinder Head

Seal Ring in Rear Camshaft Housing,

Replace

Removal Procedure

1. Remove DIS ignition module – see operation DIS Igni-

tion Module, Remove and Install.

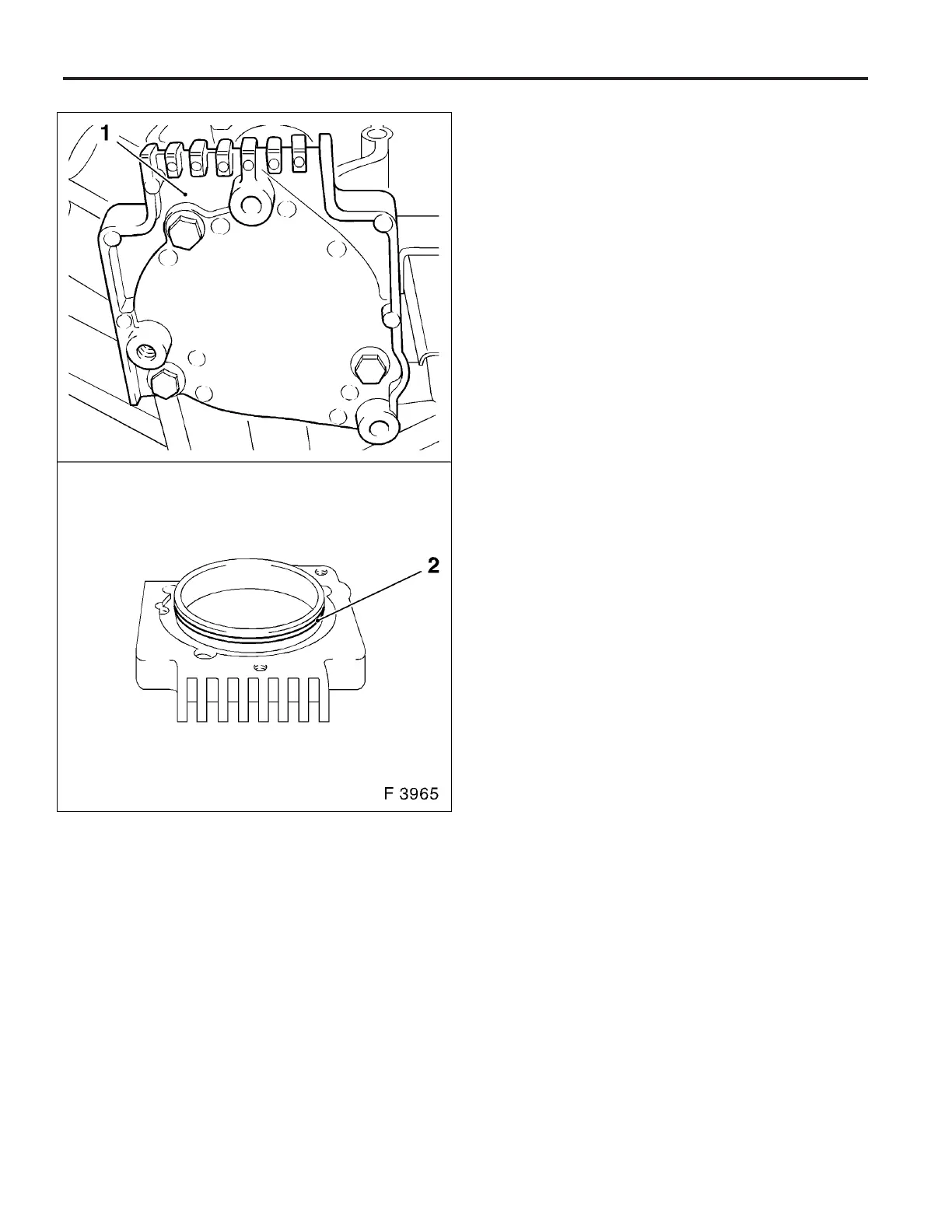

2. Remove carrier plate (1) from camshaft housing.

Clean

1. Clean sealing surfaces and remove gasket remnants.

Installation Procedure

1. Coat seal ring (2) of carrier plate with silicone grease

(white) and attach carrier plate to camshaft housing.

Tighten

Tightening torque 12 Nm / 9 lb. ft.

2. Install DIS ignition module – see operation DIS Ignition

Module, Remove and Install.
