Industrial 1.6L Engine Mechanical 1-83

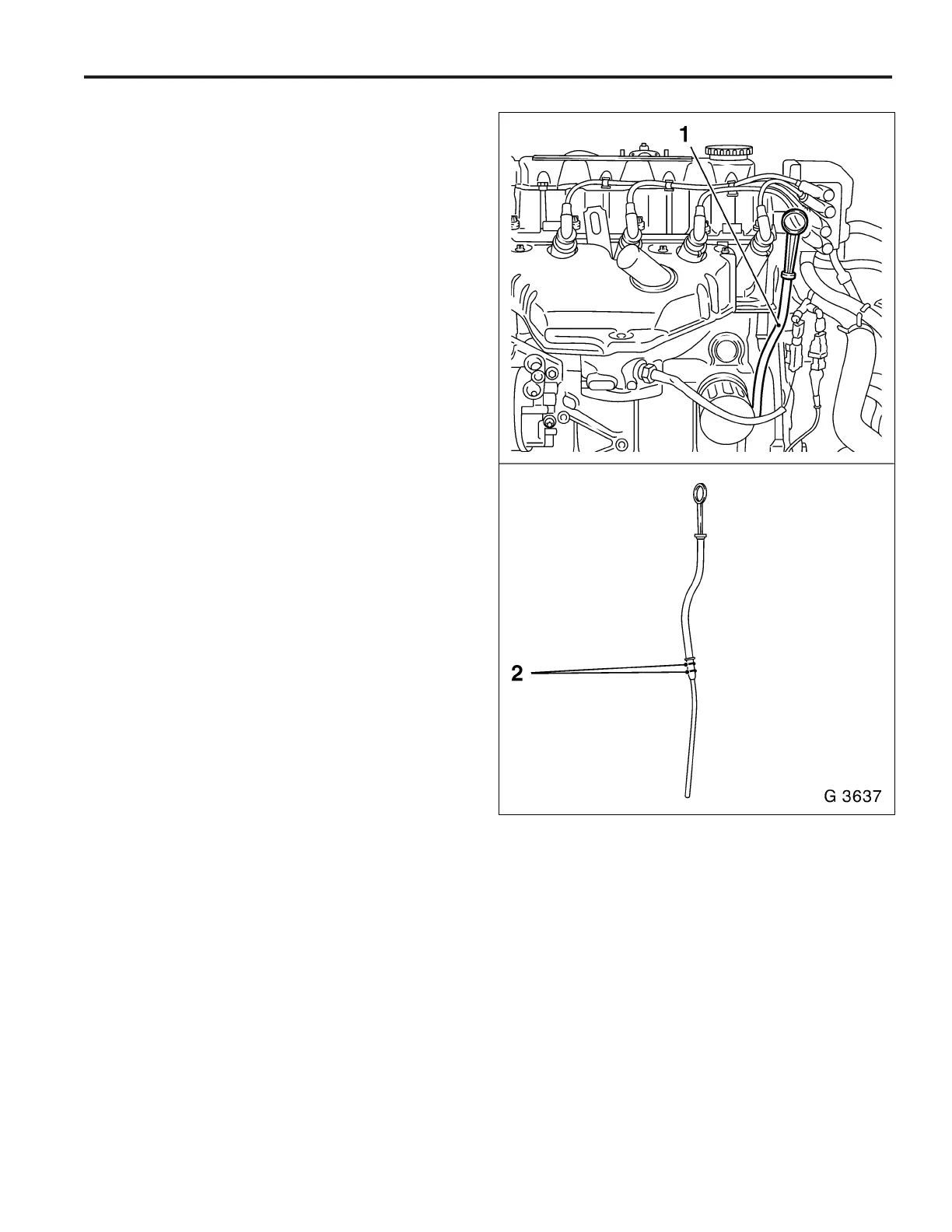

Oil Dipstick Guide Tube, Remove and Install
Removal Procedure
1. Withdraw oil dipstick guide tube (1) from cylinder block.
Installation Procedure
1. Push new seal ring (2) onto oil dipstick guide tube and
lightly coat with engine oil.
2. Insert oil dipstick guide tube up to stop in cylinder block.
Crankshaft Position Sensor, Remove and
Install
Refer to operation Crankshaft Position Sensor, Remove
and Install in Section 3, Engine Electrical.
Reference Gap Between Crankshaft Position
Sensor and Increment Disc, Check
Refer to operation Reference Gap Between Crankshaft
Position Sensor and Increment Disc, Check in Section 3,
Engine Electrical.
