1-30 Engine Mechanical Industrial 1.6L
Seal Ring in Front Camshaft Housing,
Replace
Removal Procedure
1. Remove upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
2. Remove ribbed V–belts – see operation Ribbed V–belts,
Remove and Install.
3. Remove lower part of toothed belt cover – see operation
Toothed Belt Cover – Lower Part, Remove and Install.
4. Remove toothed belt – see operation Toothed Belt, Re-
move and Install.
5. Remove engine vent hose from camshaft housing cover.
6. Detach wiring trough from camshaft housing cover.
7. Remove camshaft housing cover from camshaft housing.

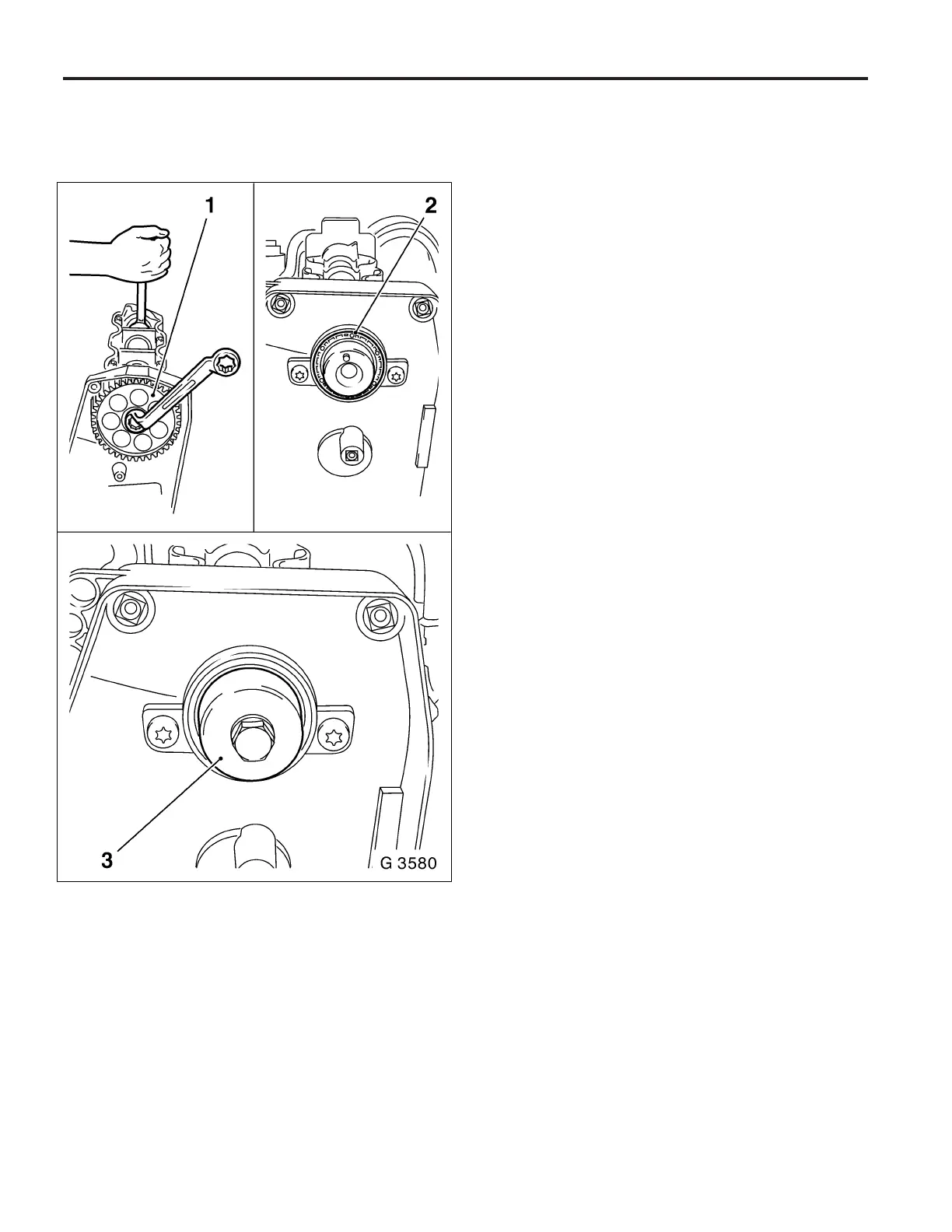

8. Remove camshaft sprocket (1) from camshaft –
counterhold with open–ended spanner on hex of cam
shaft.
9. Edge out seal ring (2) with suitable tool.
Important: Do not damage sealing surfaces.
Installation Procedure
1. Lightly coat sealing lip of seal ring with silicon grease
(white). Press seal ring with KM–422 (3) in camshaft
housing – use bolt and washer of camshaft pulley.
