2-18 Engine Cooling Industrial 1.6L

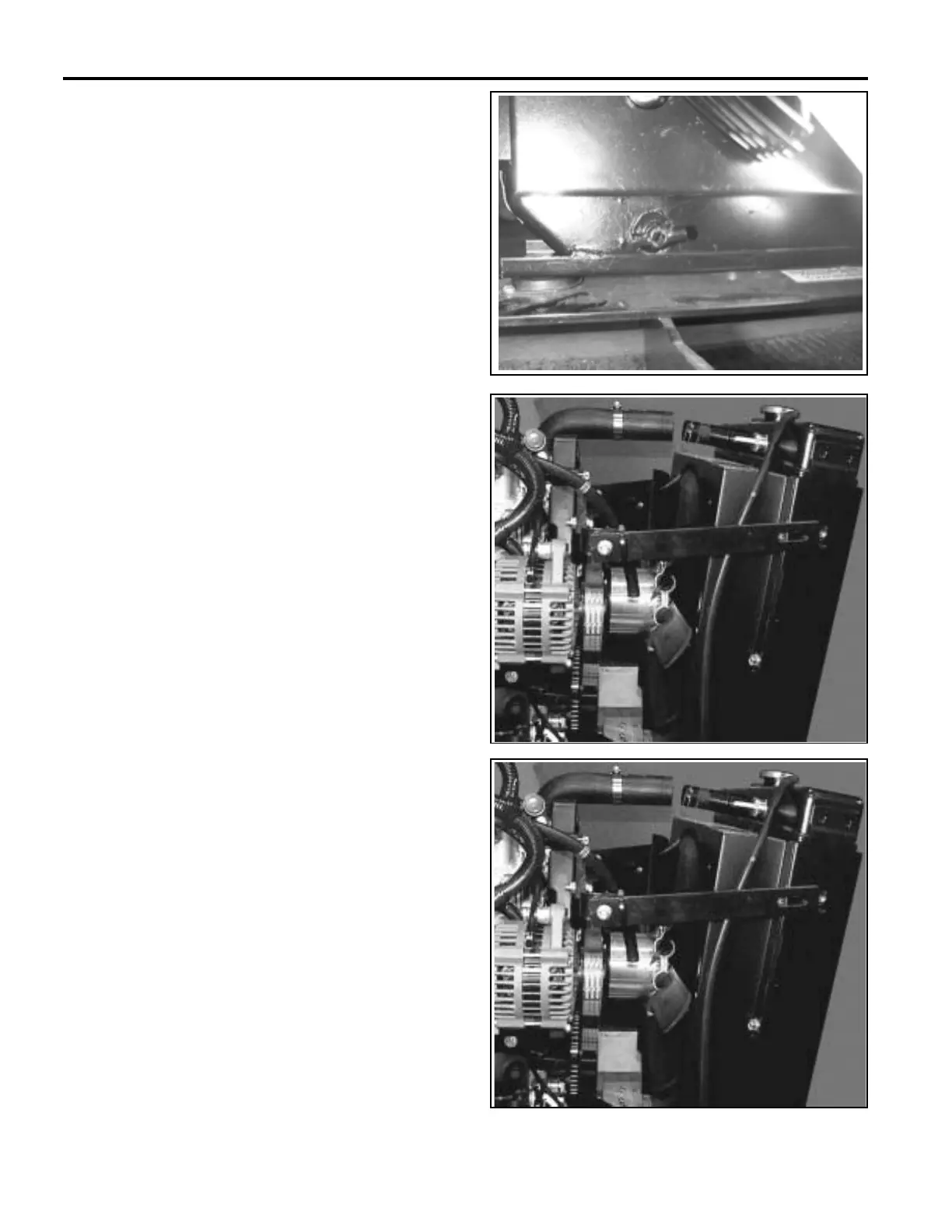

Drain Cock Replacement
Removal Procedure
1. Drain the cooling system. Refer to Draining and
Filling Cooling System.
2. Remove the drain cock from the radiator.
Installation Procedure
Notice: Refer to Fastener Notice.
1. Install the drain cock to the radiator.
Tighten
Tighten the drain cock to 18 N•m (13 lb ft).
2. Fill the cooling system. Refer to Draining and
Filling Cooling System.
3. Start the engine and check for leaks.
Radiator Replacement
Removal Procedure
1. Drain the cooling system. Refer to Draining and
Filling Cooling System.
2. Disconnect the radiator hoses from the radiator.
Refer to Radiator Hose Replacement.
3. Disconnect the fuel injection coolant hose.
4. Remove the fan guard. Refer to Fan Guard
Replacement.
5. Remove the upper radiator bracket and mounting
bolts.
6. Remove the lower radiator mounting bolts.
7. Remove the radiator.
8. Remove the fan shroud. Refer to Fan Shroud
Replacement.
Installation Procedure
1. Install the fan shroud. Refer to Fan Shroud
Replacement.
2. Position the radiator on the equipment.
Notice: Refer to Fastener Notice.
3. Install the lower radiator mounting bolts finger tight.
4. Install the radiator upper brackets and mounting
bolts.
Tighten
Tighten all radiator mounting bolts to 25 N•m (18 lb ft).
5. Install the fan guard. Refer to Fan Guard
Replacement.
6. Connect the radiator hoses to the radiator. Refer
to Radiator Hose Replacement.
7. Connect the fuel injection coolant hose to the
radiator.
8. Fill the cooling system. Refer to Draining and
Filling Cooling System.
9. Start the engine and check for leaks.
79362010
80362006
80362006
