1-76 Engine Mechanical Industrial 1.6L
Oil Pan, Remove and Install
Removal Procedure
1. Open oil drain plug – place collecting basin underneath.
2. Remove oil pan from cylinder block and oil pump.
Clean
1. Clean sealing surfaces and remove gasket remnants.
Installation Procedure

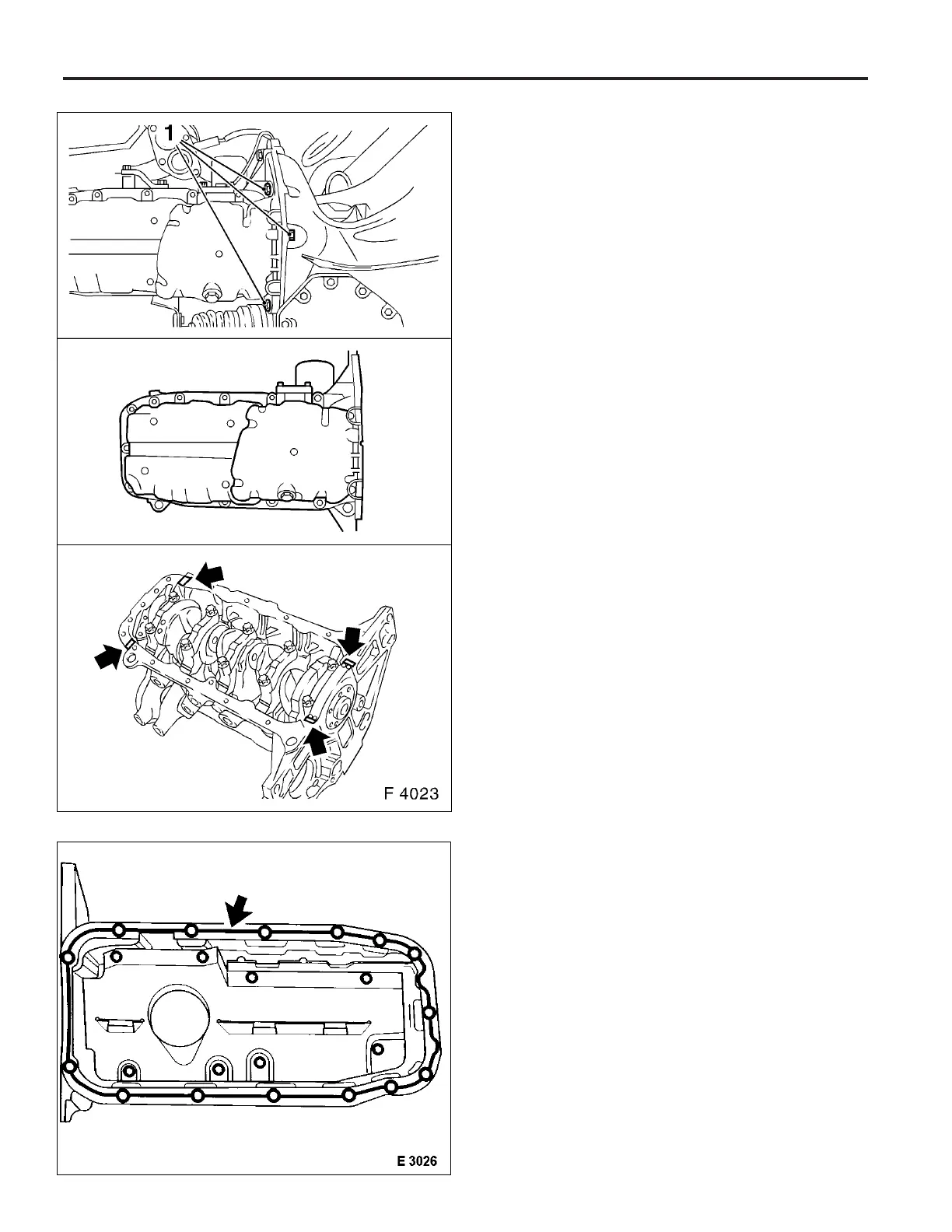

1. Apply a bead of adhesive sealing compound (black) to
joints of oil pump (shown bye the position of the arrows
in the illustration to the left) and rear crankshaft bearing
cap.
2. Install oil pan with new gasket (shown by the arrow in
the illustration on the lower left) to oil pump and cylinder
block. Attach oil drain plug to oil pan with new seal
ring.
Tighten
Tightening torque 55 Nm / 40.6 lb. ft.
Important:
Installation sequence:
1. Tighten all bolts loosely.
2. Tighten bolts on cylinder block and oil pump.
Tighten
Tightening torque 10 Nm / 7.5 lb. ft.1).
3. Recut thread before reuse and insert bolts with screw
locking compound (red). The installation time including
the torque check is max. 10 min.
For version with hex bolts.
Tighten
Tightening torque 35 Nm / 26 lb. ft.1).
For version with hex nuts.
Tighten
Tightening torque 45 Nm / 33 lb. ft.2).
4. Fill engine oil up to ”MAX” at dipstick.
1) Insert bolts with mounting paste (white).
2) Use new nut(s).
