Vortec 1600 - Toothed Belt Cover, Upper Part, Remove and Install

1-26 Engine Mechanical Industrial 1.6L
Installation Procedure
Tools Required:
••
••
• 6” Steel Rule
1. Slide the belt over the fan blades and route it over the
pulleys.
2. Move the generator outward until the fan belt measures
approximately 1/2 inch (13 mm) deflection.
Notice: Refer to Fastener Notice
3. While maintaining tension on the drive belt, tighten
the generator mounting bolts.
Tighten
Tighten the lower generator mounting bolt to 50 Nm / 37
lb. ft.
Tighten the upper generator mounting bolt to 25 Nm / 18
lb. ft.
4. Verify that the belt tension is correct with the ruler.
5. Install the fan guard. Refer to procedure Fan Guard
Replacement.
Installation Procedure
1. Install lower engine splash guard.
2. Install ribbed V–belt – see operation Ribbed V–belt,
Remove and Install.
Toothed Belt Cover, Upper Part, Remove and
Install
Removal Procedure

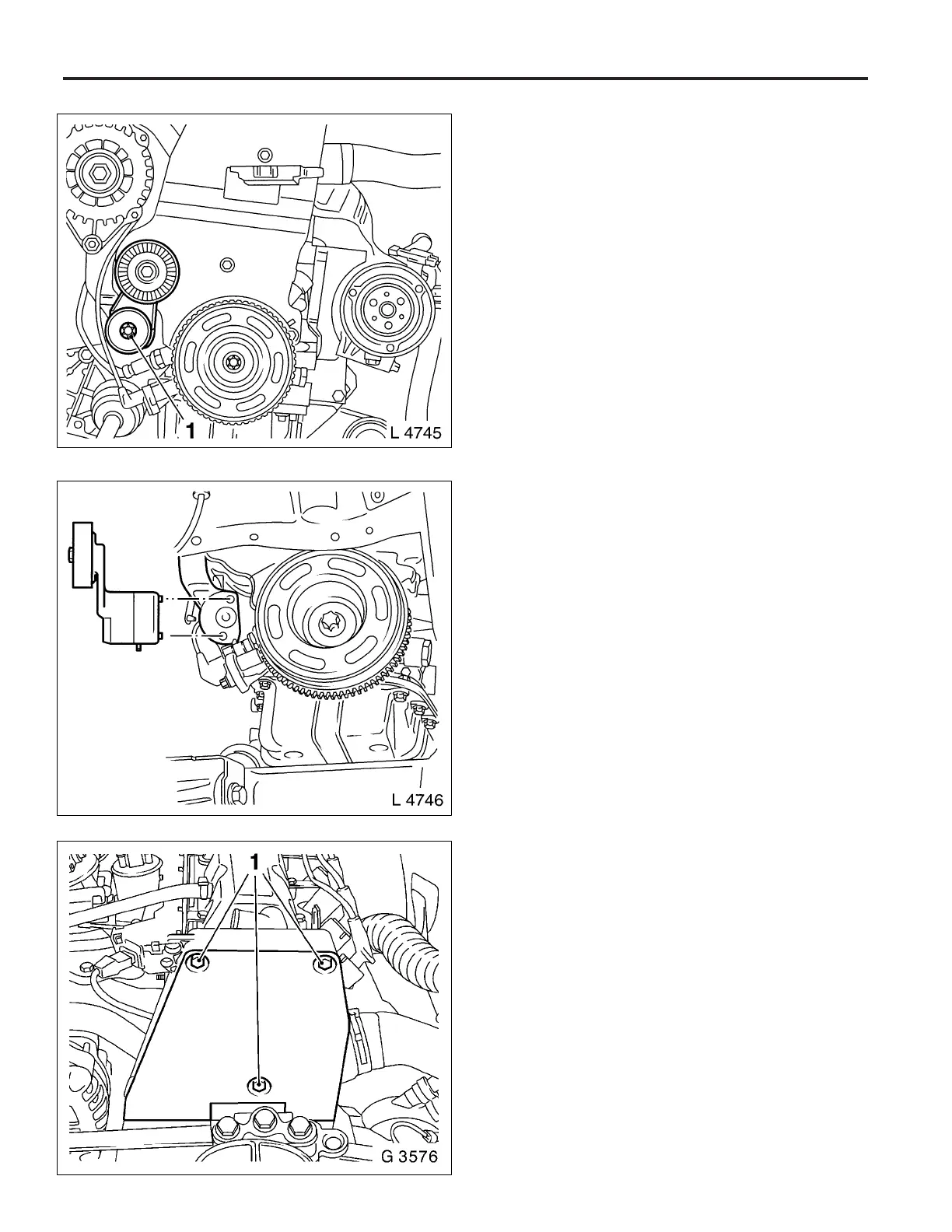

1. Remove fastening bolts (1) and remove upper part of
toothed belt cover from rear toothed belt cover.
Installation Procedure
1. Attach upper part of toothed belt cover to rear toothed
belt cover.
Tighten
Tightening torque 4 Nm / 3 lb. ft.
