2-14 Engine Cooling Industrial 1.6L
Installation Procedure
1. Position the fan guard over the cooling fan blades.
Notice: Refer to Fastener Notice.
2. Install the fan guard mounting bolts and washers.
Tighten
Tighten the fan guard mounting bolts to 16-20 N•m (12-
15 lb ft).
3. Connect the upper radiator hose to the radiator.
Refer to Radiator Hose Replacement.
4. Connect the fuel injection coolant hose to the
radiator.
5. Fill the cooling system. Refer to Draining and
Filling Cooling System.
Fan Guard Replacement
Removal Procedure
1. Disconnect the upper radiator hose from the
radiator. Refer to Radiator Hose Replacement.
2. Disconnect the fuel injection coolant hose from the
radiator.
3. Remove the fan guard mounting bolts and
washers.

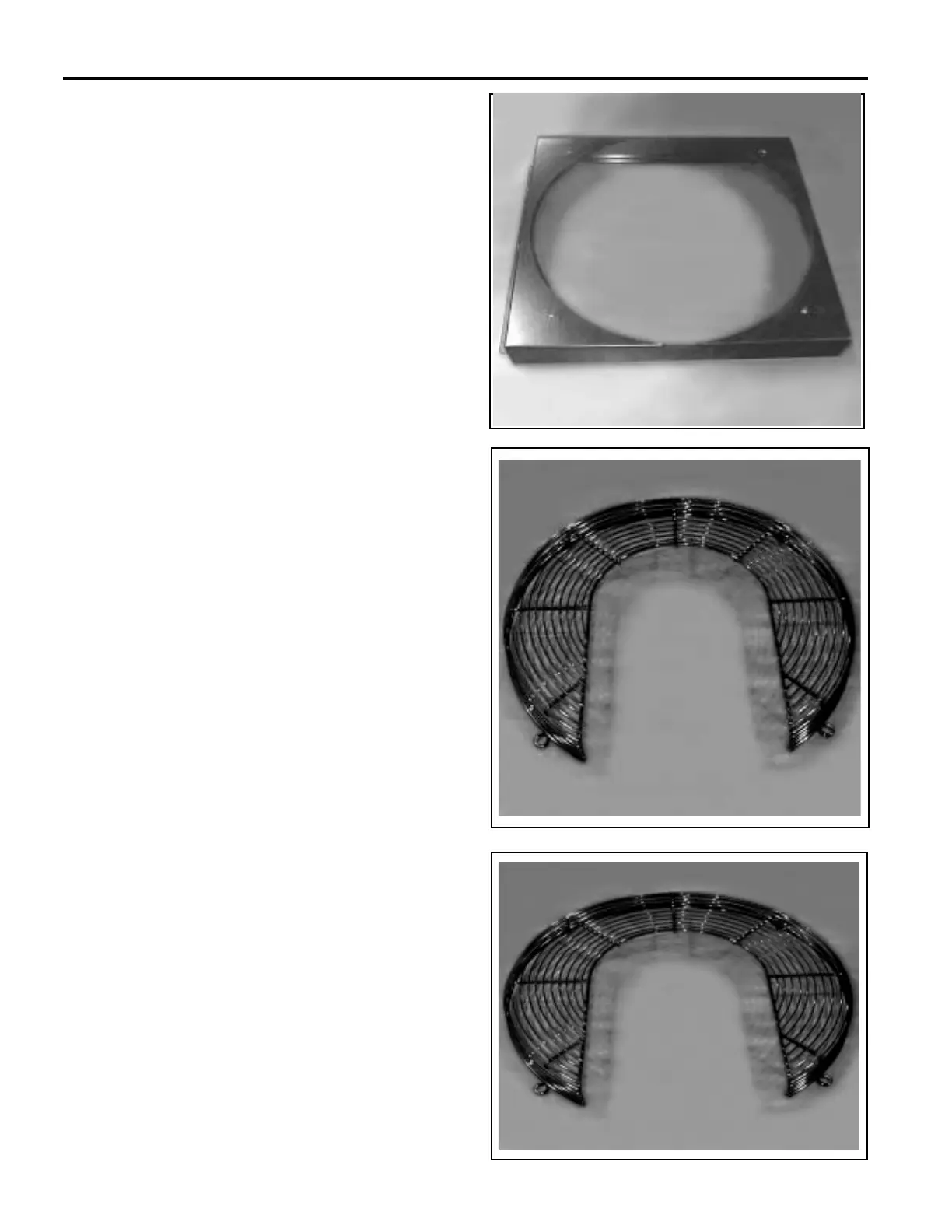

79362004
79362004
79362003
Installation Procedure
1. Tilt the radiator forward and position the fan shroud
over the cooling fan blades.
Notice: Refer to Fastener Notice.
2. Install the fan shroud mounting bolts and washers.
Tighten
Tighten the fan shroud mounting bolts to 16-20 N•m (12-
15 lb ft).
Notice: Refer to Fastener Notice.
3. Install the radiator upper support brackets to the
radiator.
Tighten
Tighten the radiator upper support bracket mounting bolts
to 25 N•m (18 lb ft).
4. Install the fan guard. Refer to Fan Guard
Replacement.
5. Connect the radiator overflow hose clamps to the
fan shroud.
