Industrial 1.6L Engine Mechanical 1-53
Cylinder Head, Check for Plane Surface
Clean
1. Clean sealing surface and remove sealant remnants.
Inspect

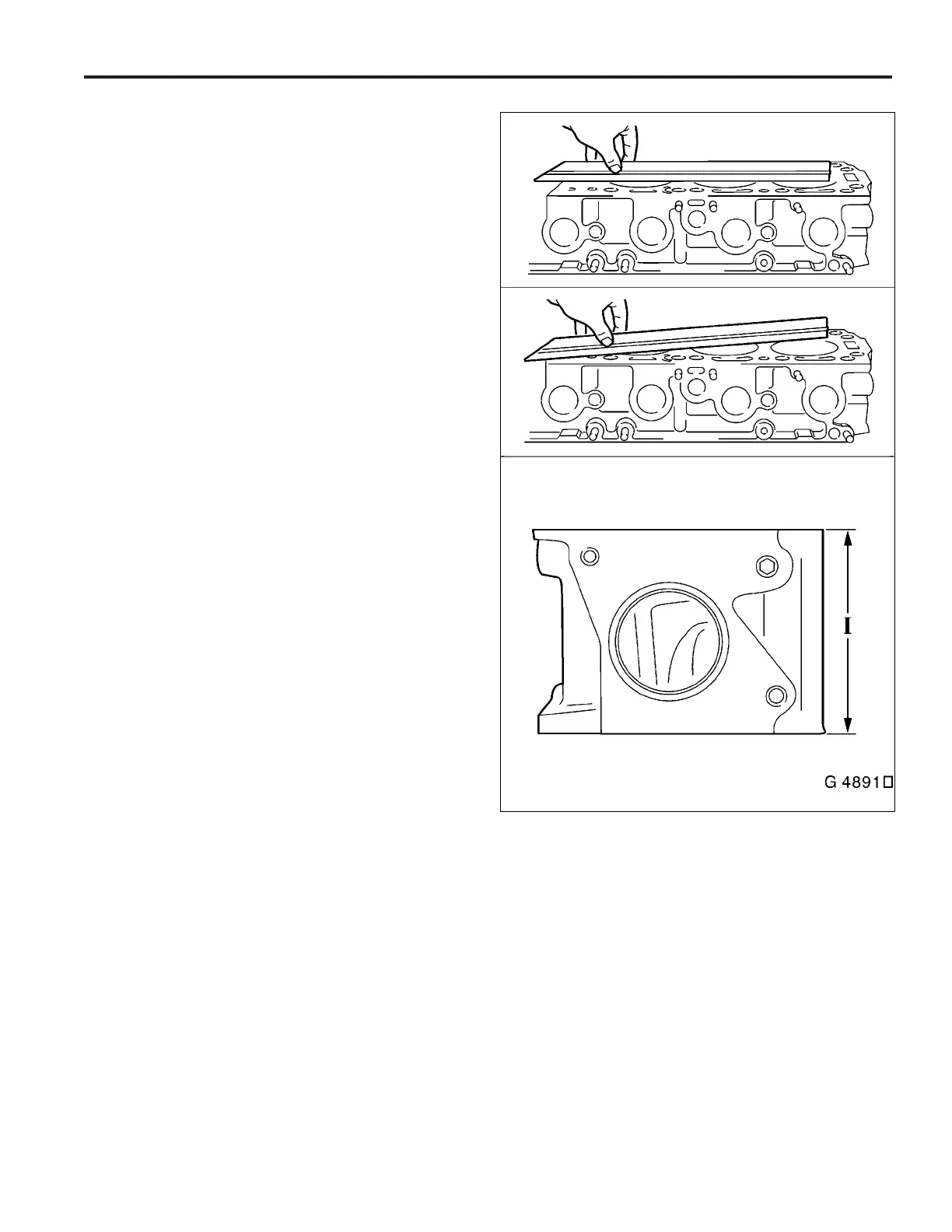

1. Check length and width of cylinder head sealing surfaces
for deformation and diagonals for warpage – use straight
edge.
Important: Resurfacing of the cylinder head is not
permitted.
Measure
1. Height of cylinder head (sealing surface to sealing sur-
face)
Dimension I: 95.90 to 96.10 mm
