1-32 Engine Mechanical Industrial 1.6L
Rear Toothed Belt Cover, Remove and Install
Removal Procedure
1. Remove upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
2. Remove ribbed V–belts – see operation Ribbed V–belts,
Remove and Install.
3. Remove lower part of toothed belt cover – see operation
Toothed Belt Cover – Lower Part, Remove and Install.
4. Remove toothed belt – see operation Toothed Belt, Re-
move and Install.
5. Remove toothed belt tension roller – see operation Toothed
Belt Tension Roller, Remove and Install.

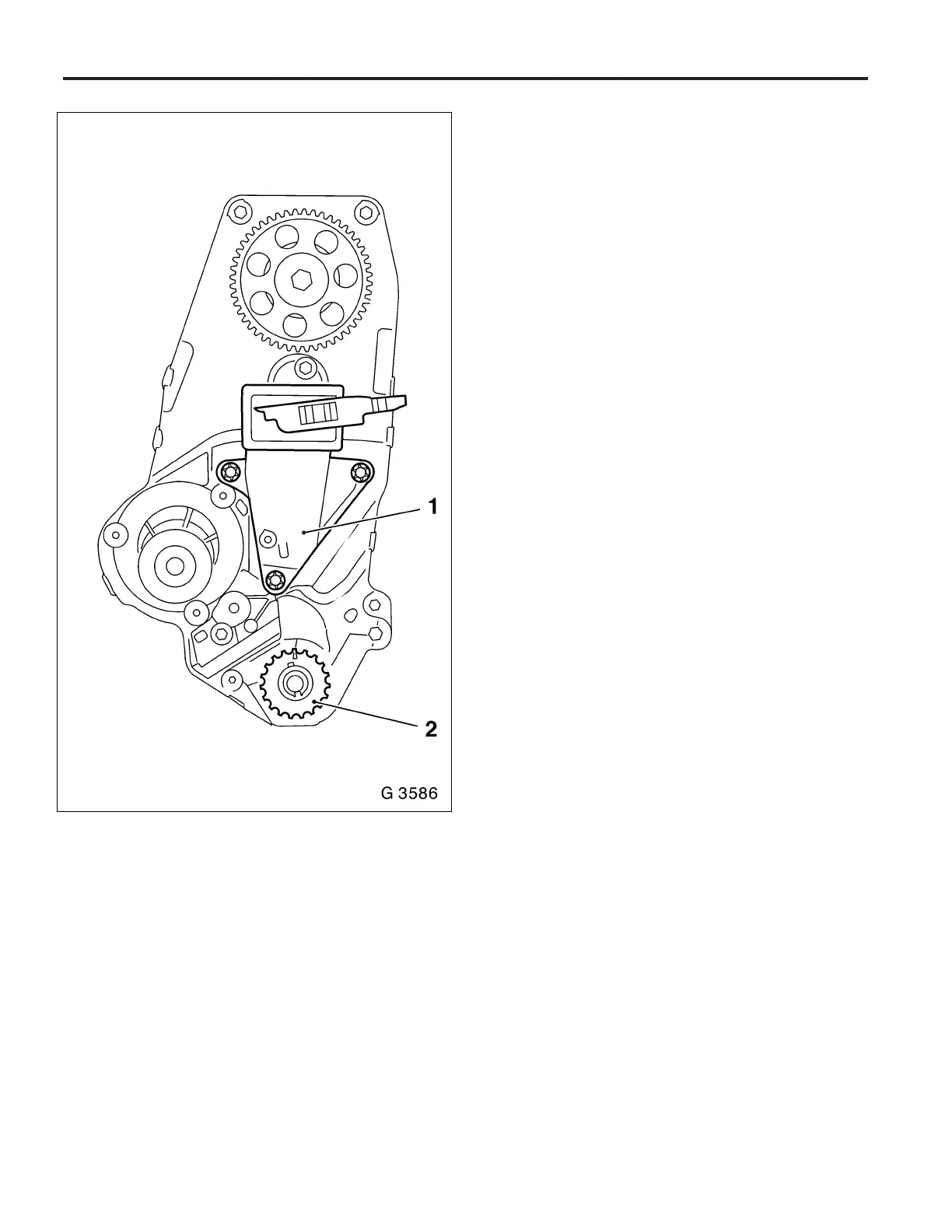

6. Remove toothed belt drive gear (2) from crankshaft.
