Industrial 1.6L Engine Mechanical 1-33
Removal Procedure

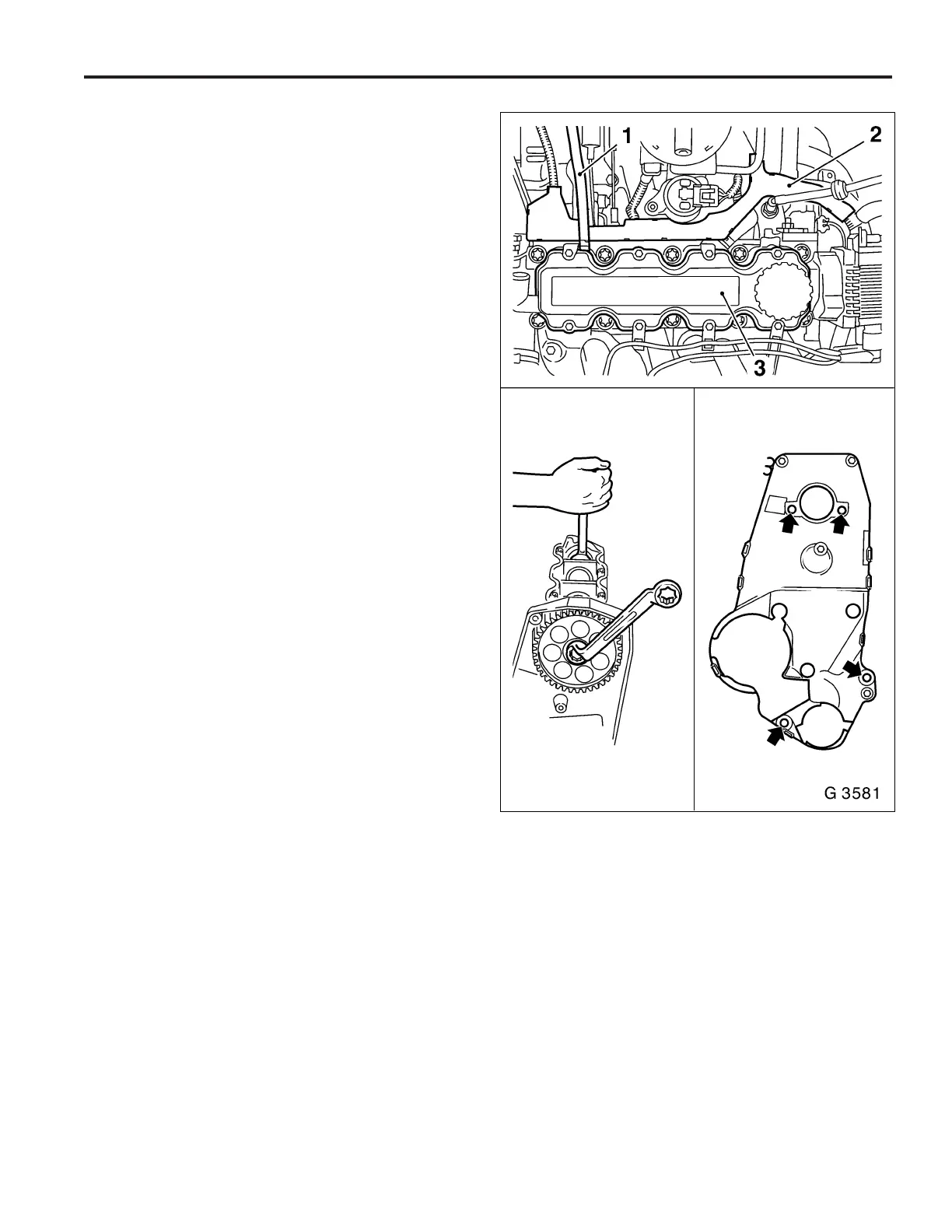

1. Remove engine bleeding hose (1) from camshaft housing
cover.
2. Remove camshaft housing cover (3) from camshaft hous-
ing.
3. Remove camshaft sprocket – counterhold with open–
ended spanner on hex of camshaft.
4. Unclip cable for crankshaft pulse pickup from rear toothed
belt cover.
5. Remove rear toothed belt cover (arrows) from oil pump
and camshaft housing.
Installation Procedure
1. Attach rear toothed belt cover to oil pump and camshaft
housing.
Tighten
Tightening torque 6 Nm / 4 lb. ft.
2. Clip cable for crankshaft pulse pickup to rear toothed belt
cover – note cable routing.
3. Attach camshaft sprocket to camshaft – counterhold
with open–ended spanner on hex of camshaft.
Tighten
Tightening torque 45 Nm / 33 lb. ft.
4. Install camshaft housing cover at camshaft housing.
Tighten
Tightening torque 8 Nm / 6 lb. ft.
5. Attach engine bleeding hose to camshaft housing cover.
6. Attach engine damping block support to cylinder block.
Tighten
Tightening torque 50 Nm / 37 lb. ft.
7. Slide toothed belt drive gear onto crankshaft journal –
note installation position.
8. Install toothed belt tension roller – see operation Toothed
Belt Tension Roller, Remove and Install.
9. Install toothed belt – see operation Toothed Belt, Re-
move and Install.
10. Install lower part of toothed belt cover – see operation
Toothed Belt Cover – Lower Part, Remove and Install.
11. Install ribbed V–belt – see operation Ribbed V–belt,
Remove and Install.
12. Install upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
