Industrial 1.6L Engine Mechanical 1-43
Installation Procedure
1. Install toothed belt – see operation Toothed Belt, Re-
move and Install.
2. Remove fastening bolt from toothed belt drive gear and
install toothed belt cover, lower part – see operation
Toothed Belt Cover, Lower Part, Remove and Install.
3. Install ribbed V–belt – see operation Ribbed V–belt,
Remove and Install.
4. Install upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
Hydraulic Valve Lifter, Replace (Cylinder
Head Installed)
Removal Procedure
1. Detach engine vent hose from camshaft housing cover.
2. Detach wiring trough from camshaft housing cover.
3. Remove camshaft housing cover from camshaft housing.
Adjust
1. At fastening bolt of toothed belt drive gear, turn crank-
shaft in engine rotational direction until cam (1) of hy-
draulic valve lifter to be replaced assumes a vertical posi-
tion.
Removal Procedure

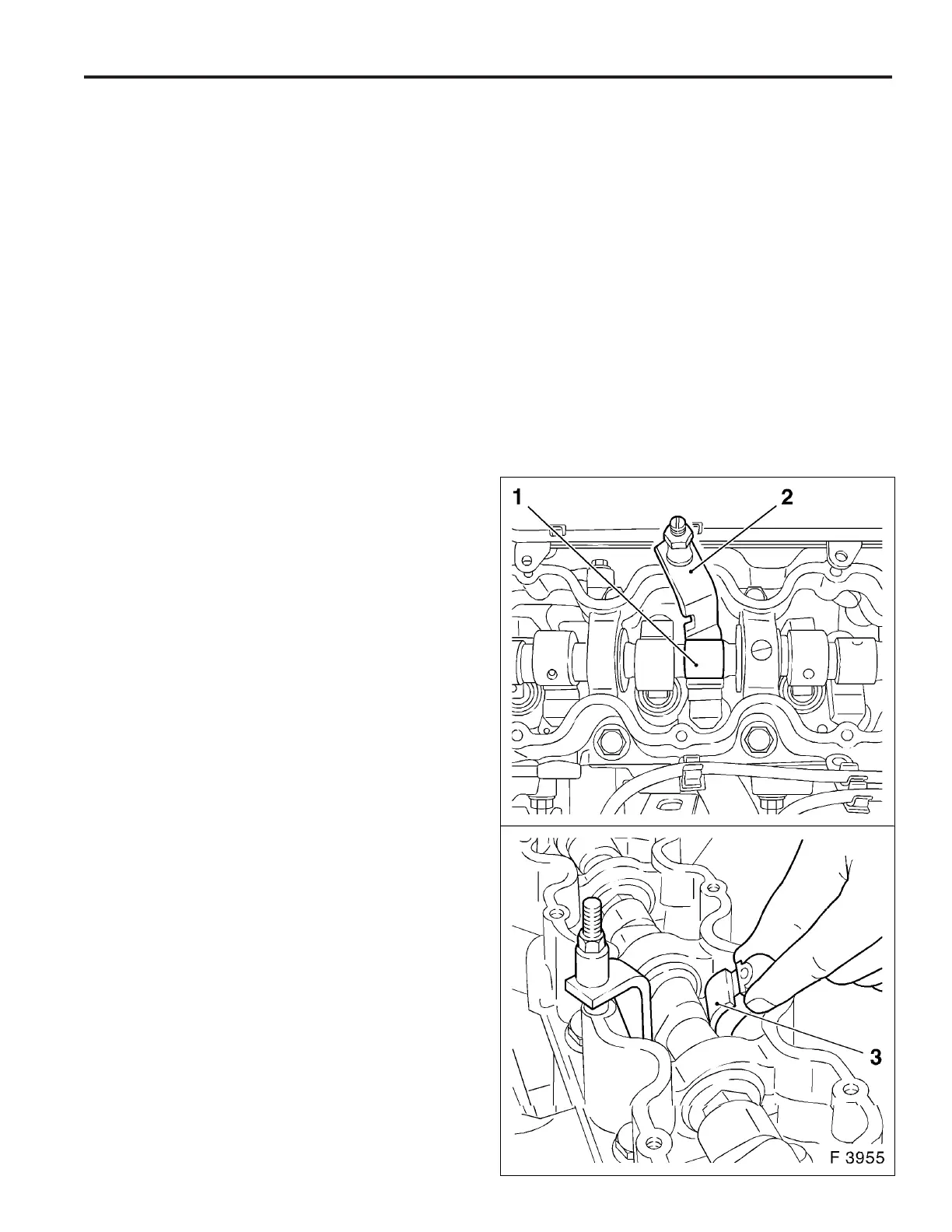

1. Place KM–565–A (2) on camshaft housing and valve
head and tension valve spring. Remove cam follower (3)
from camshaft housing – note thrust piece.
2. Remove hydraulic valve lifter from camshaft housing.
